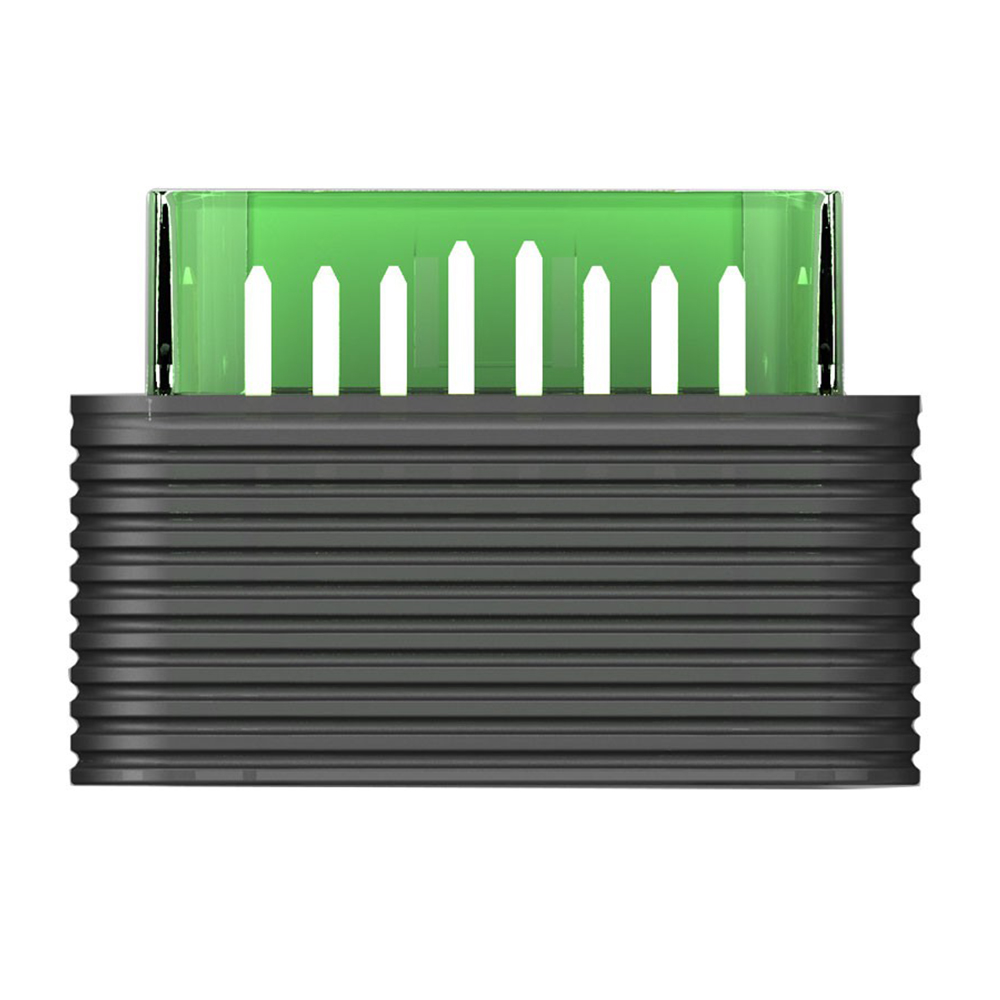

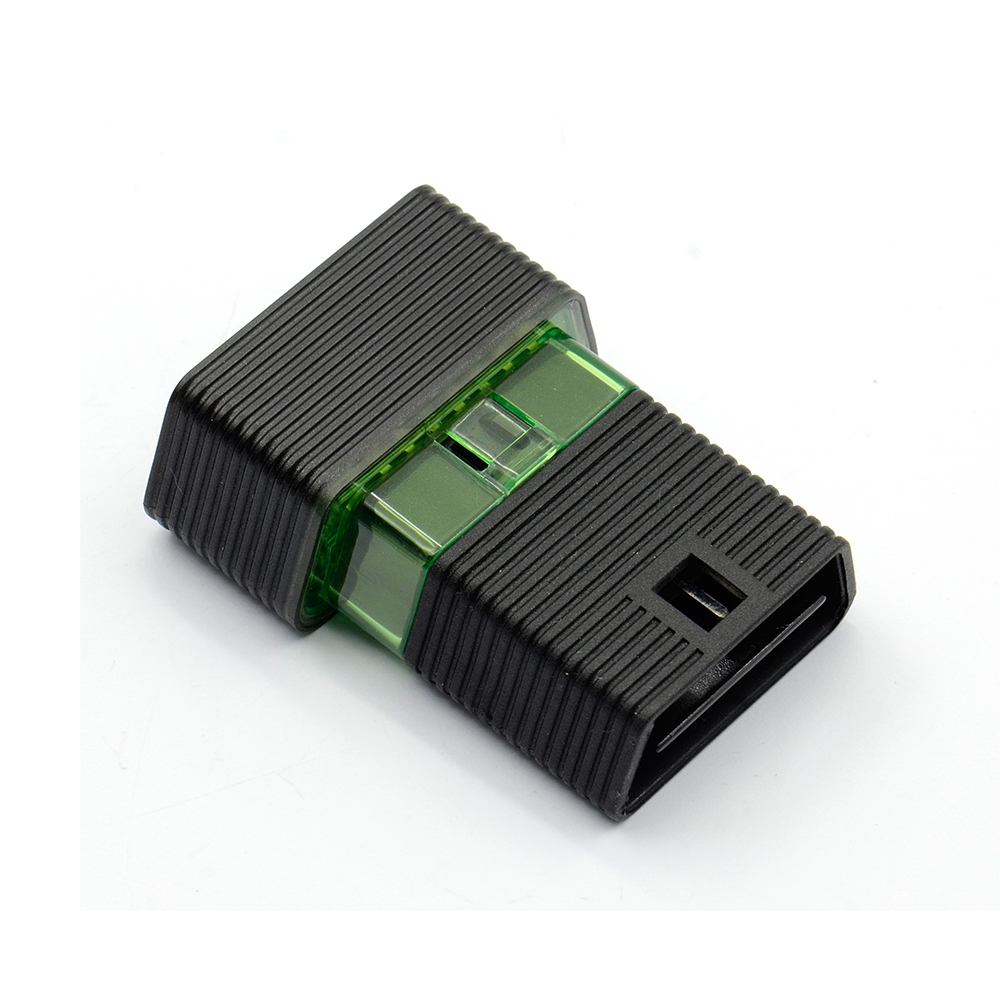

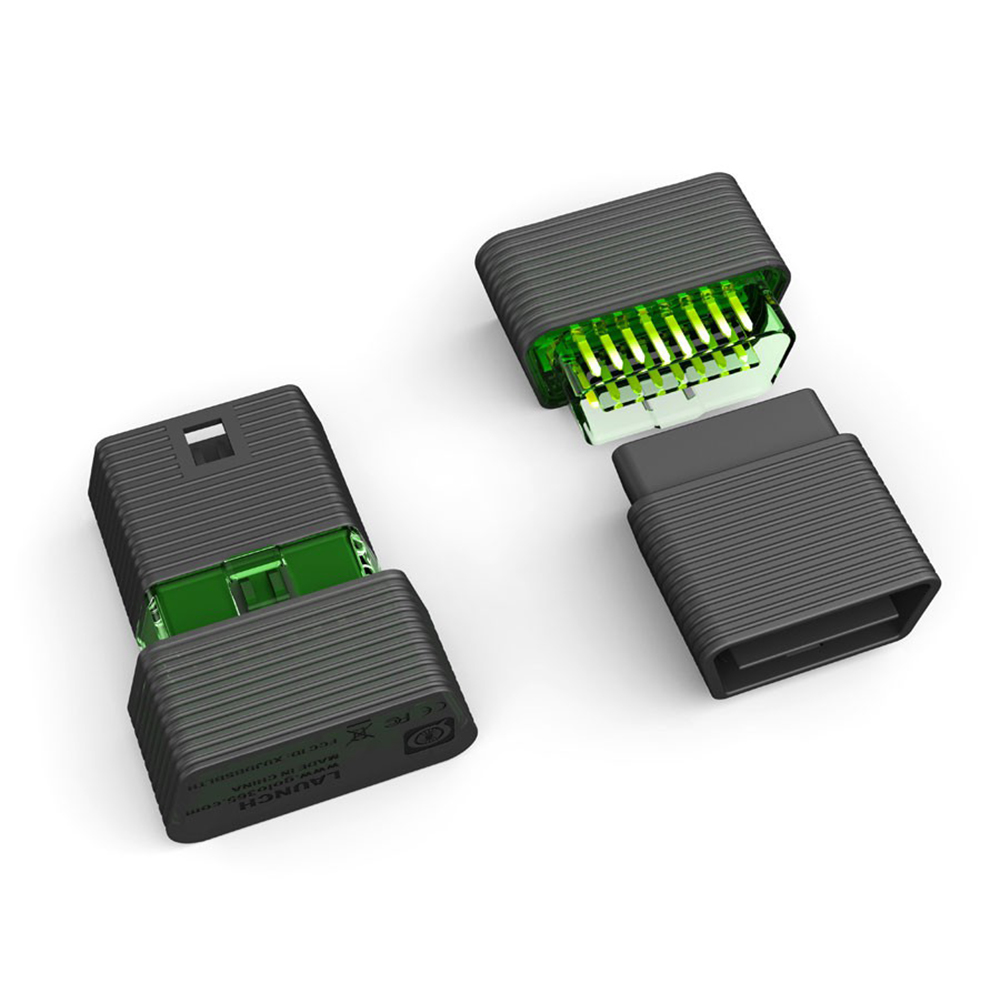

LAUNCH M-DIAG LITE Bluetooth OBDII Scanner for Android IOS

M-Diag is a smart phone based vehicle OBDII and full-system diagnostic tool designed with the professional technicians and DIY enthusiasts in mind. The device is small and portable, yet powerful enough to rival its competitors. Users have the option to purchase manufacturer specific carline software based on their needs. M-Diag allows for full-system diagnostics including bi-directional capabilities, quickly and easily from the convenience of your smart phone.



Item No.:LHCR005

Weight NW:0.3KG(0.66LB)

Package:

 Related Download Files:







 .pdf

 .pdf

 .pdf

CE-FC-ROHS
GET GUOTES

GET GUOTES

  X
Submit

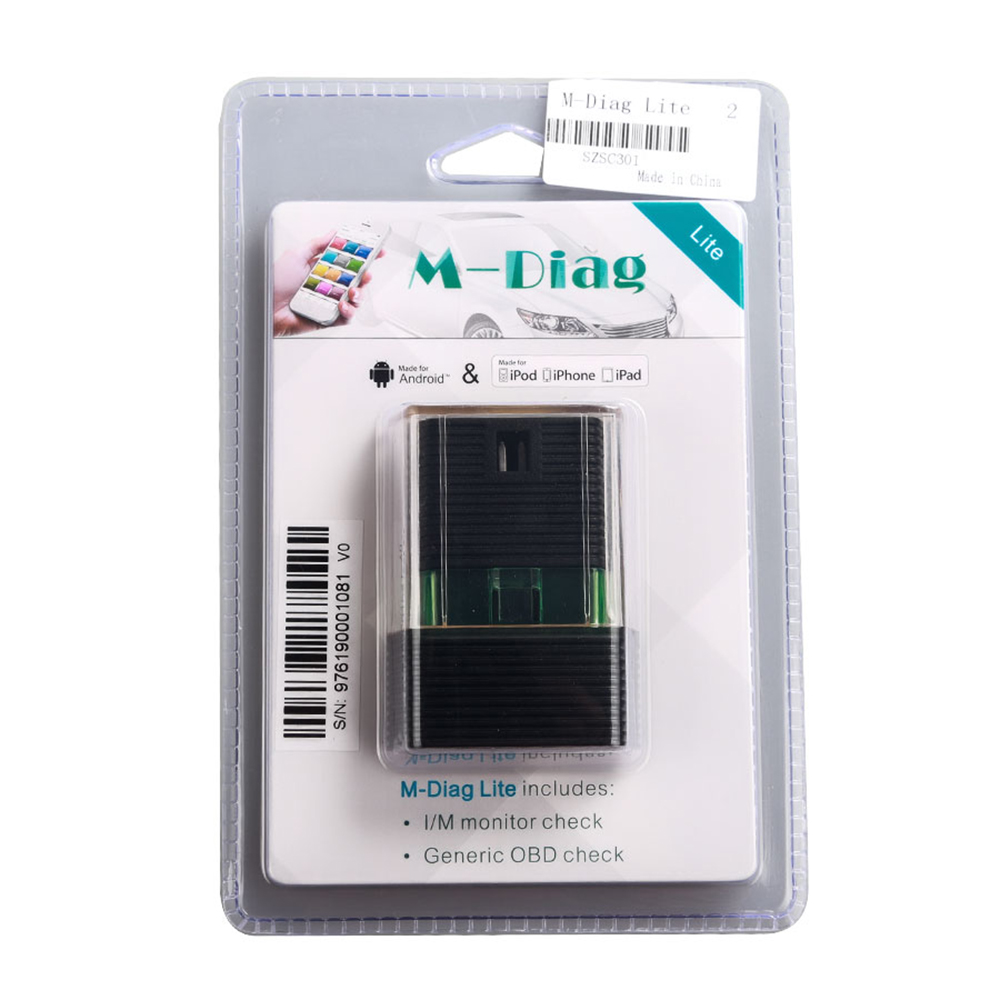

Two Types:

1. Launch M-DIAG Lite including EOBD software.

2. Launch M-DIAG Lite Plus including EOBD software + 1 kind of car software.

M-Diag Highlights

Small and portable

Light and small OBDII device, easy to handle;

Plug and play through Bluetooth connection with smart phone.

Widest car line software coverage

Support the generic OBD, CAN bus, and proprietary protocols of over 70 car manufacturers and 2,500 car models;

Support multiple special function software and actuation tests.

Economical but powerful Options to purchase manufacturer specific carline software based on needs;

Full-system diagnostics including bi-directional capabilities.

M-Diag Features



I/M Readiness Monitor

Read DTC’s

Clear DTC’s

Read Freeze Frame Data

Read and Graph Data Stream PID’s

* Full System Scan

* Actuation Tests

* Special Functions

M-Diag Specs



Vehicle port: Standard OBDII port

Bluetooth : BT 2.0

Typical power consumption: (12V) quiescent current 25mA

Device operating current: 35mA

Operating Temperature: -20 to 55℃ ( -4 to 131°F )

Storage Temperature: -30 to 70℃ ( -22 to 158°F )

Storage humidity: < 80%

Operating humidity :< 60%

Dimensions: 48mm × 24mm × 65mm

Net Weight: 55g

Operating voltage: Vehicle battery DC entry 9 to 15V
