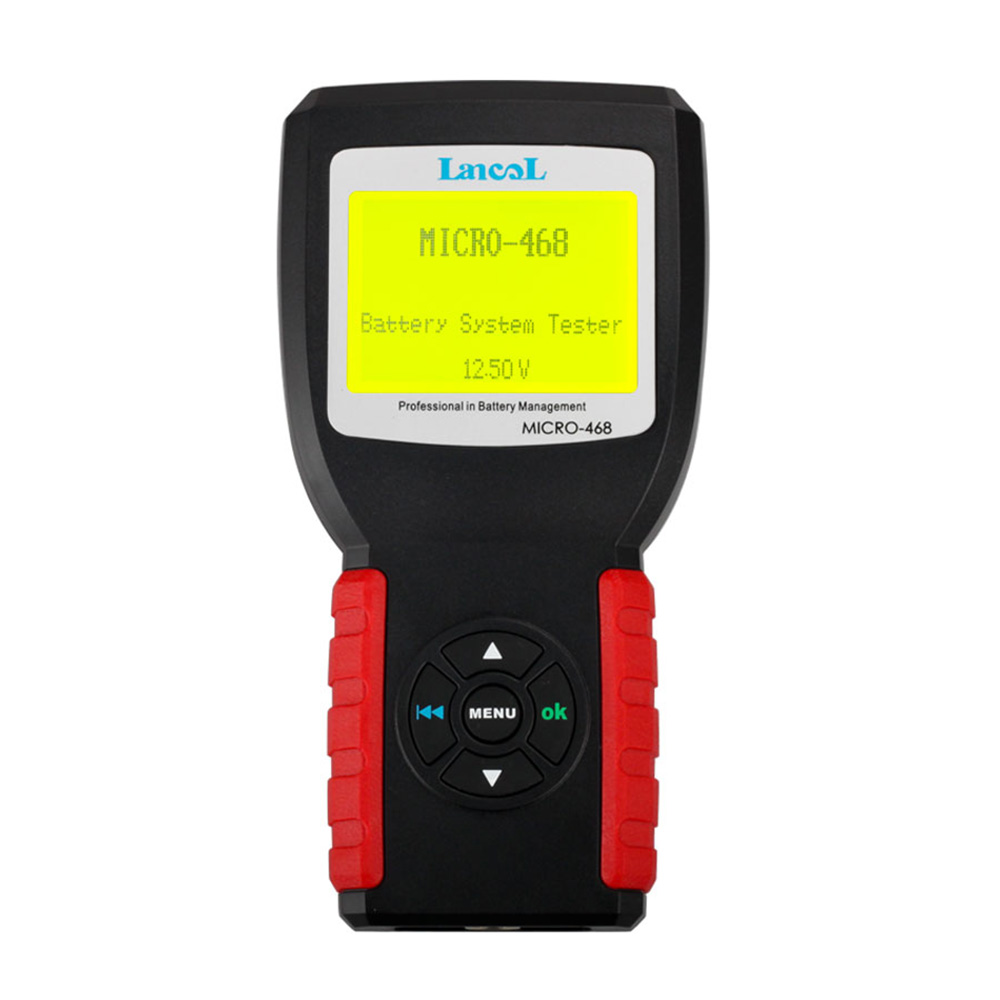

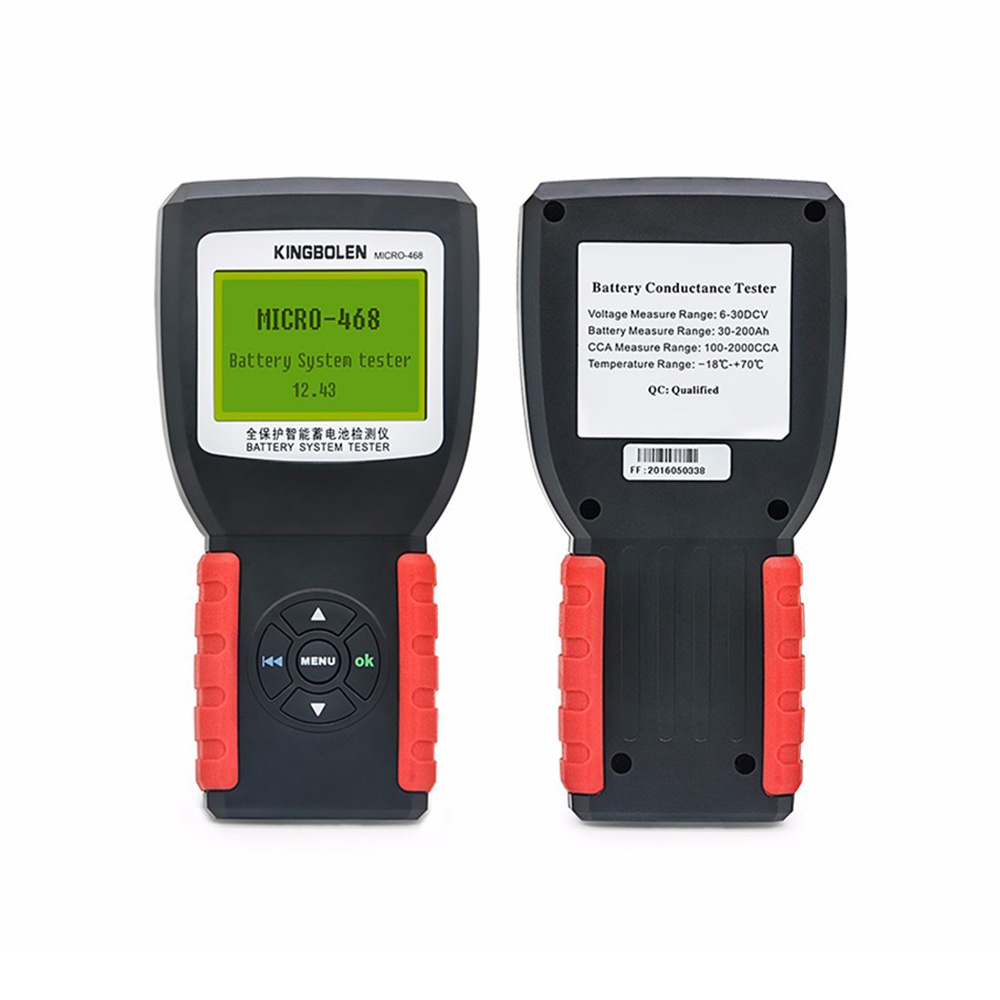

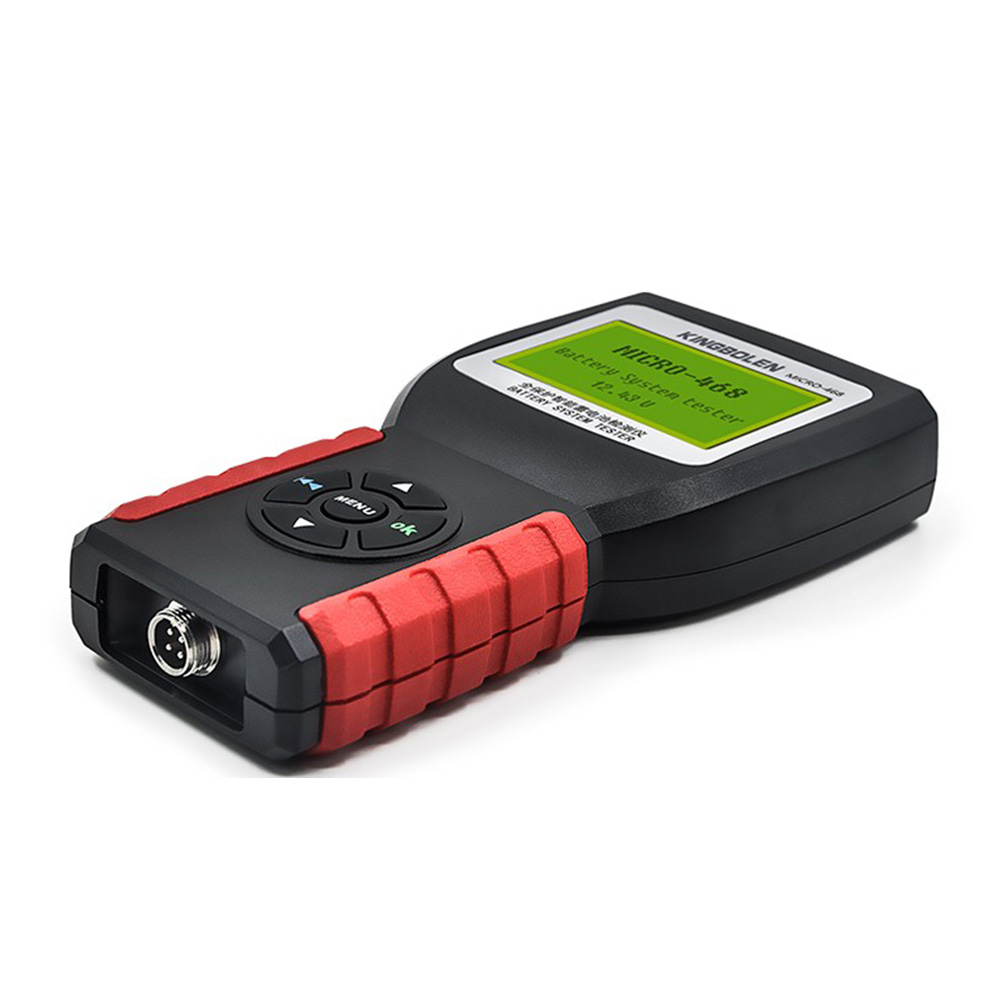

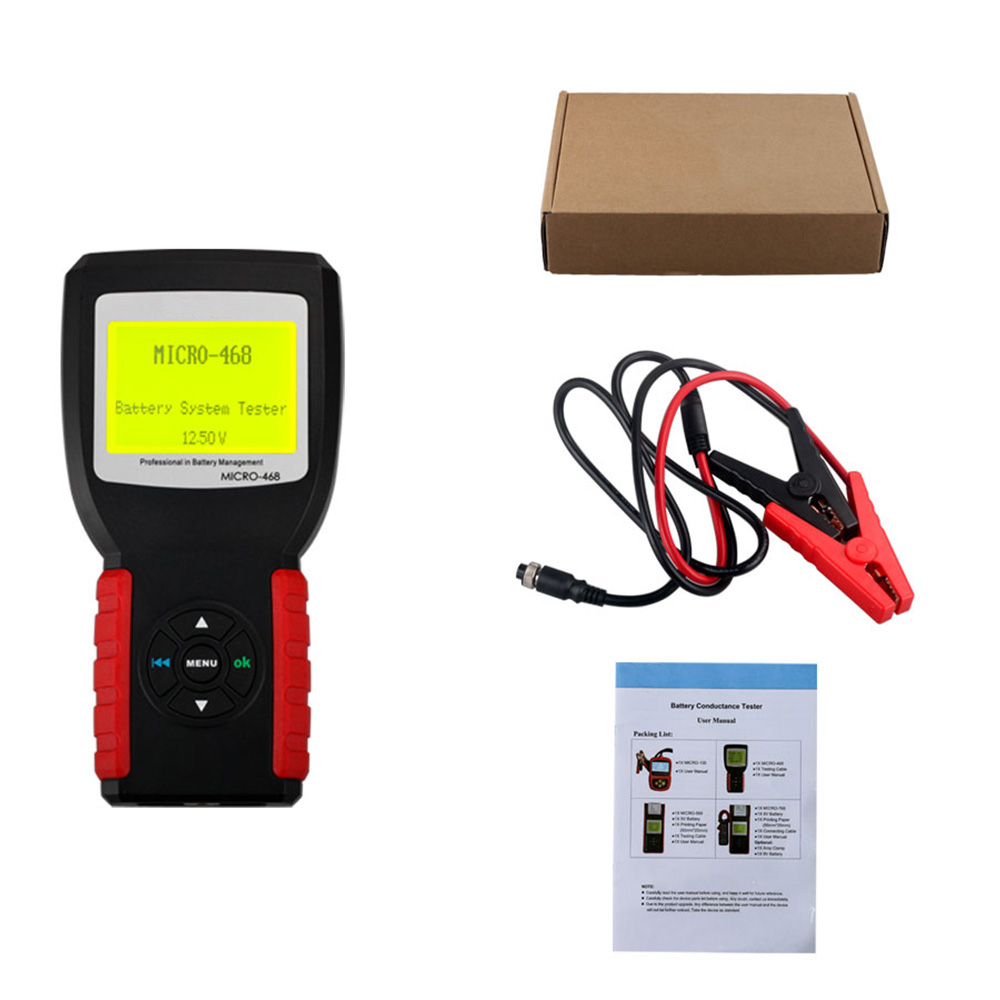

MICRO-468 Portable Car Battery Tester

Features:

Test range: CCA100-2000,30-200Ah

Test result: SOH,SOC,CCA,IR,Conductance value,Starting & Charging System,etc.

Test battery type: All automotive cranking lead-acid starter battery,including ordinary lead-acid

battery,EFB,AGM flat plate battery,GM spiral battery,AGM spiral battery,Gel battery,etc.

Test standards: CCA,BCI,CA,MCA,JIS,DIN,IEC,EN,SAE,GB

Advantages:

1.Simple, secure, fast, and accurate display battery life test results (the test takes about 3 seconds)

2.Eight lines with back light LCD display and humane language prompted interface

3.Does not emit light, no heat, no discharge, no spark, no operating dangerous

4.Automatic temperature compensation function with ripple voltage test function Multi- language menu display

5.Removable replacement test line

6.Dedicated Kelvin test clip

Advanced Functionality:

Applicable to a variety of models, all kinds of batteries, and a variety of system mode

Directly detected in the car, do not need to remove the battery

Directly test the battery of the loss of electricity, bad cell battery

Battery test results include the State of Health %, State of Charge % and actual CCA capacity.

Scope: suitable for 6V & 12V battery and 12V & 24V starting and charging system detects

Specifications:

Voltage Measure Range:6-30DCV.

Temperature Measure Range:-18°C - +70°C.

Cable Length: 120cm( 47.24in) 3M(3.28yd)optional

Housing Material: Acid-resistant ABS plastic
