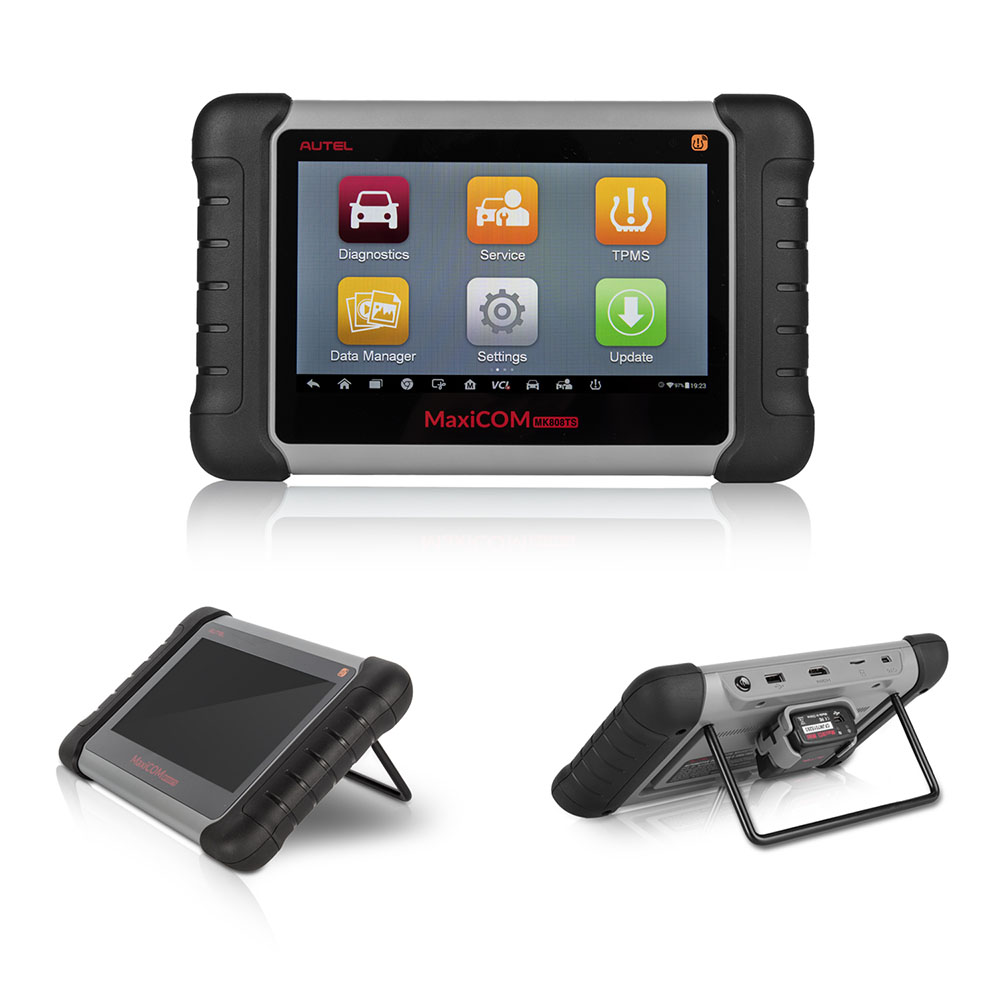

Autel MaxiCOM MK808ts Diagnostic Tool Automotive Scanner with Oil Reset/EPB/SAS/BMS/DPF/IMMO/TPMS functions

New Auto Diagnostic Tool Autel MaxiCOM MK808TS TPMS Professional Diagnostic Tool



Item No.: ALTP001

Weight NW: 4kg (3.13 LB)

Package: 20cm*15cm*3cm (Inch:15.35*12.32*4.84)

 Related Download Files:







 .pdf

 .pdf

 .pdf

CE-FC-ROHS
GET GUOTES

GET GUOTES

  X
Submit

Autel MaxiCOM MK808TS Specification:



Recommended Use:Indoor

Operating System:Android 4.4.2, KitKat

Processor:Cortex-A9 processor (1.5 GHz)

Memory:32GB

Display :7-inch LCD capacitive touchscreen with 1024 x 600 resolution

Connectivity:Mini USB 2.0/ USB 2.0/ Wi-Fi/ HDMI Type A/ Micro SD card (supports up to 32GB)

Sensors:Light sensor for brightness auto changing

Audio input/output:Input: N/A ; Output: buzzer

Power and Battery: 3.7 V/5000 mAh lithium-polymer battery

Charges:via 5 VDC power supply

Tested Battery Life:Around 7 hours of continuous use

Battery Charging Input:5 V/1.5 A

Power Consumption:600 mA (LCD on with default brightness, Wi-Fi on) @3.7 V

Operating Temp:-10 to 60°C(14 to 140°F)

Storage Temp:-20 to 70°C (-4 to 158°F)

Operating Humidity:5% - 95% non-condensing

Dimensions (W x H x D):270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0 mm (1.4”)

Net Weight:885 g (2.31 lb.)

Protocols:ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

Autel MaxiCOM MK808TS Features:



Advanced TPMS diagnostics for complete TPMS health check

Activate 98% of all known TPMS sensors

Program AUTEL MX-Sensors

Comprehensive OBD relearn coverage

Onscreen relearn procedure

Read/clear codes for all available systems.

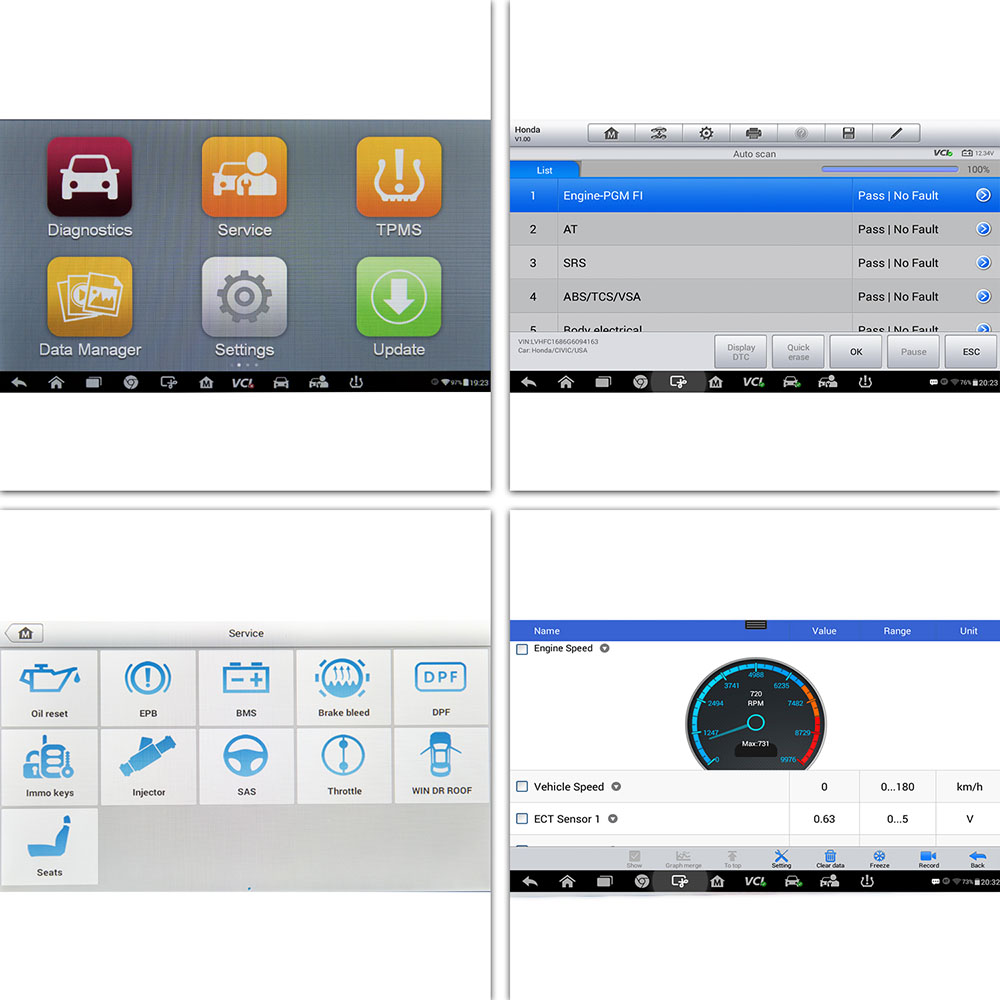

Display live data in text, graph & analog for easy data review

Auto VIN technology can automatically identify the vehicle’s make, model and year information in no time.

Reset Steering Angle Sensor (SAS)

Reset service mileage and service intervals

Relearn parking brake pad after replacement

Support forced DPF regeneration and adjusting injectors

Support battery registration and reset

Car list

Tesla, Saturn, Pontiac, Mercury, Lincoln, Jeep, Hummer, GMC,Ford, Dodge, Chrysler,Chevrolet,Cadillac, Buick, VW, Volvo, Smart,Skoda, Saab, Rolls-Royce, Renault, Porsche, Peugeot, Opel, Mini, Maybach, Maserati, Lotus, Landrover, Lancia, Lamborghini, Jaguar,HSV, Fiat, Ferrari, Dacia, Citroen, BMW, Benz, Bentley, Audi, Astonmartin, Alpina, Alfaromeo,Abarth, Toyota, Suzuki, Subaru, Ssangyong, Scion, Nissan, Mitsubishi, Mazda, Lexus, Kia,Isuzu, Infiniti, Hyundai, Honda, Holden, Daewoo, Acura

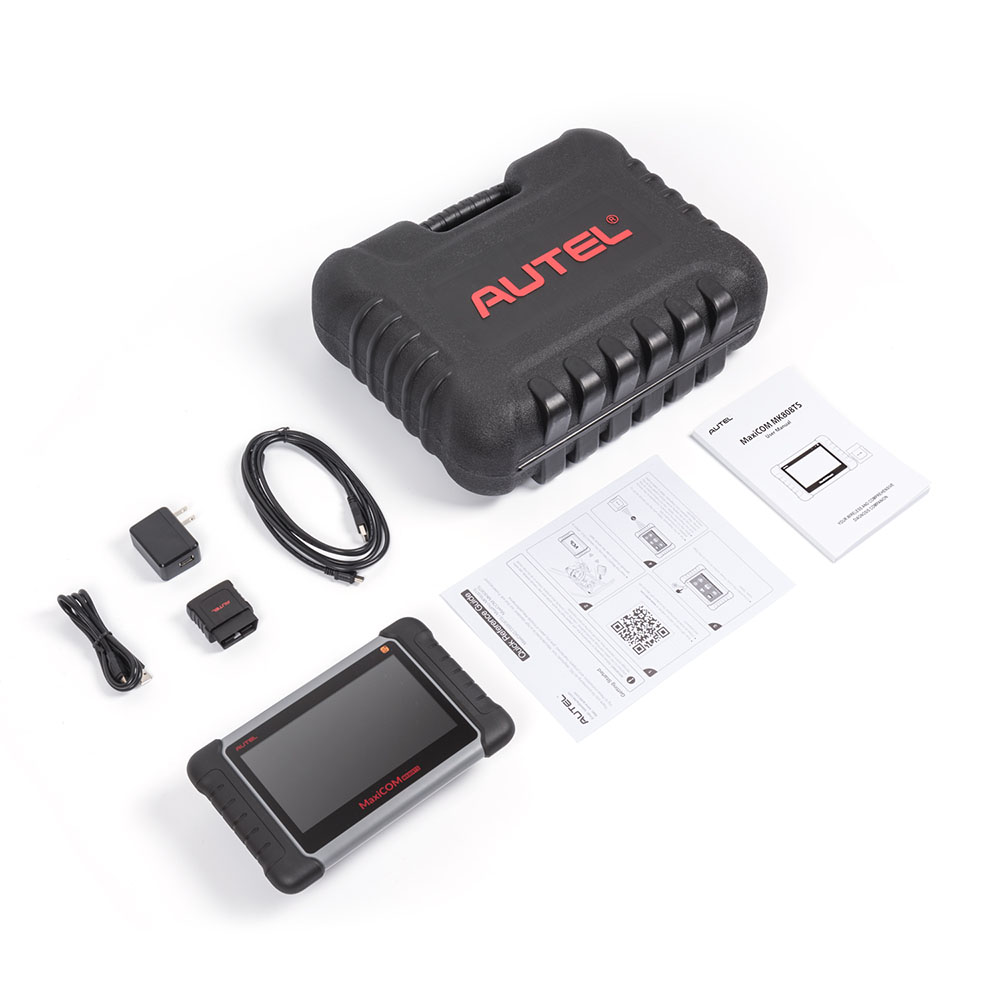

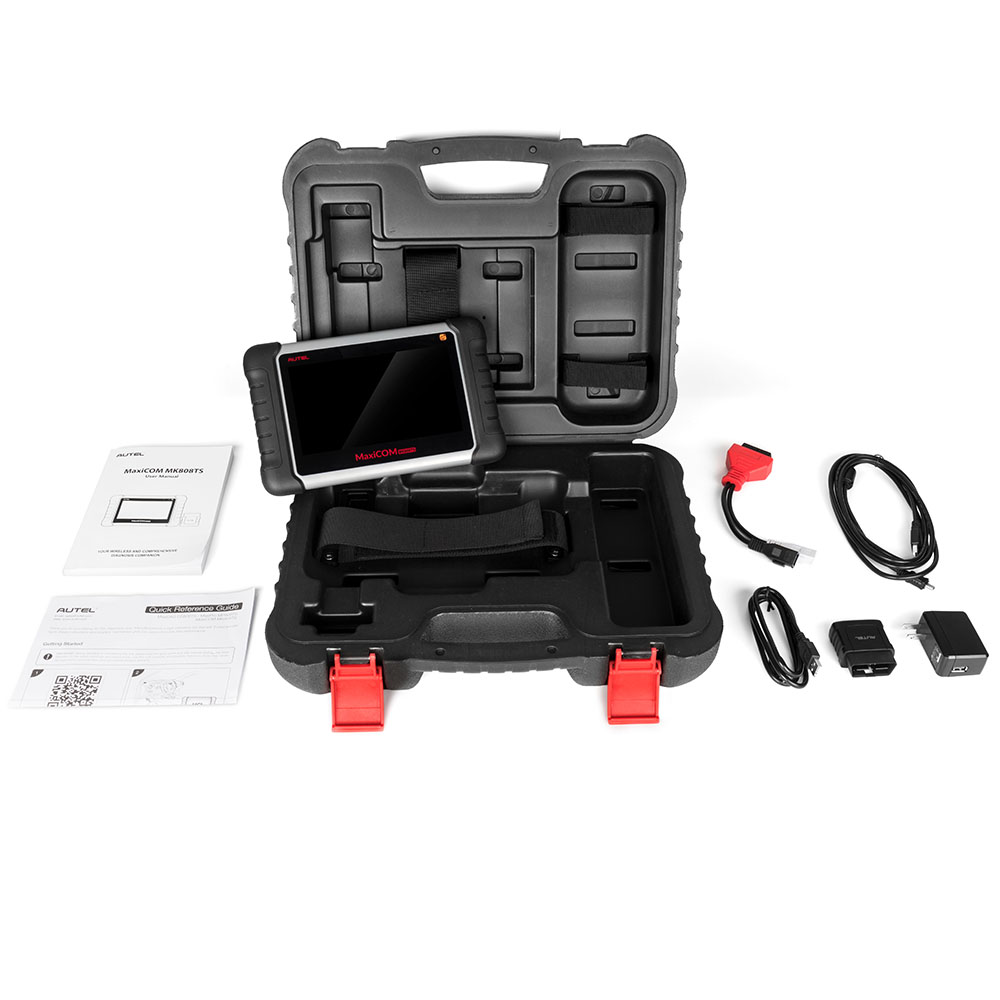

Autel MaxiCOM MK808TS Package List:

  • USB External Power Adapter

    MaxiVCI Mini

    Quick reference guide

    USB Cable (for charging)

    USB External Power Adapter

  • Carry case

    USB Cable (for test)

    User Manual

    Magnet
