AusLand ALT-240SCA Electrical Clear Floor Two Post Lift

AusLand ALT-240SCA

Item No.:ADLT004

Weight:695kg(1532.20)

Package:1.6m³

Related Download Files:

AusLand ALT-240SCA Catalogue

GET GUOTES

Standard Configuration:

Supporting arms: 2×2 stage Long Arms & 2×2stage Short Arms

Model:ALT-240SCA

Capacity: 4000kg

Weight: 715kg

A. Max. lifting: 1900mm

B. Overall height: 3780mm

C. Overall width: 3400mm

D. Drive through clearance: 2480mm

E. Supporting arm length front min.: 685mm

F. Supporting arm length front max.: 1100mm

G. Supporting arm length rear min.: 845mm

H. Supporting arm length rear max.: 1330mm

I. Adapter height min.: 110mm

J. Adapter height max.: 155mm

K. Clear size column spacing: 2760mm

L. Switch off level: 2700mm

Motor performance: 2.2kw

Electrical connection: 380V-415V

(3 phases): 50-60Hz

Electrical connection: 215V-240V

(1 phases): 50-60Hz

Lifting time: ≤ 60sec

Lowering time: 20-60 sec

Automatic Lock Release

1. Extension Adapter 150mm & 80mm

2. Foot Protections-01

3.Foot Protections-02

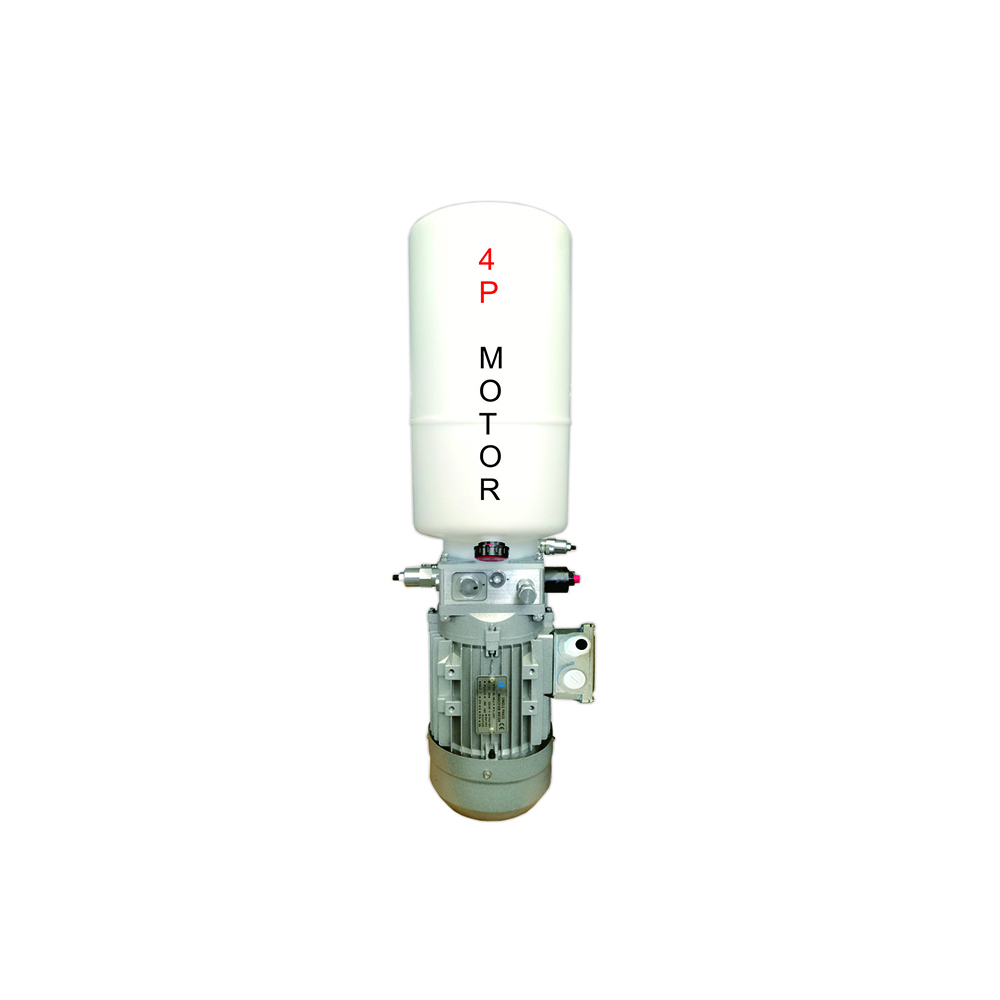

4.Eco-Alu-Shell Motor

5.2×2 Stage Long Arms, 2×3 Stage Short Arms
