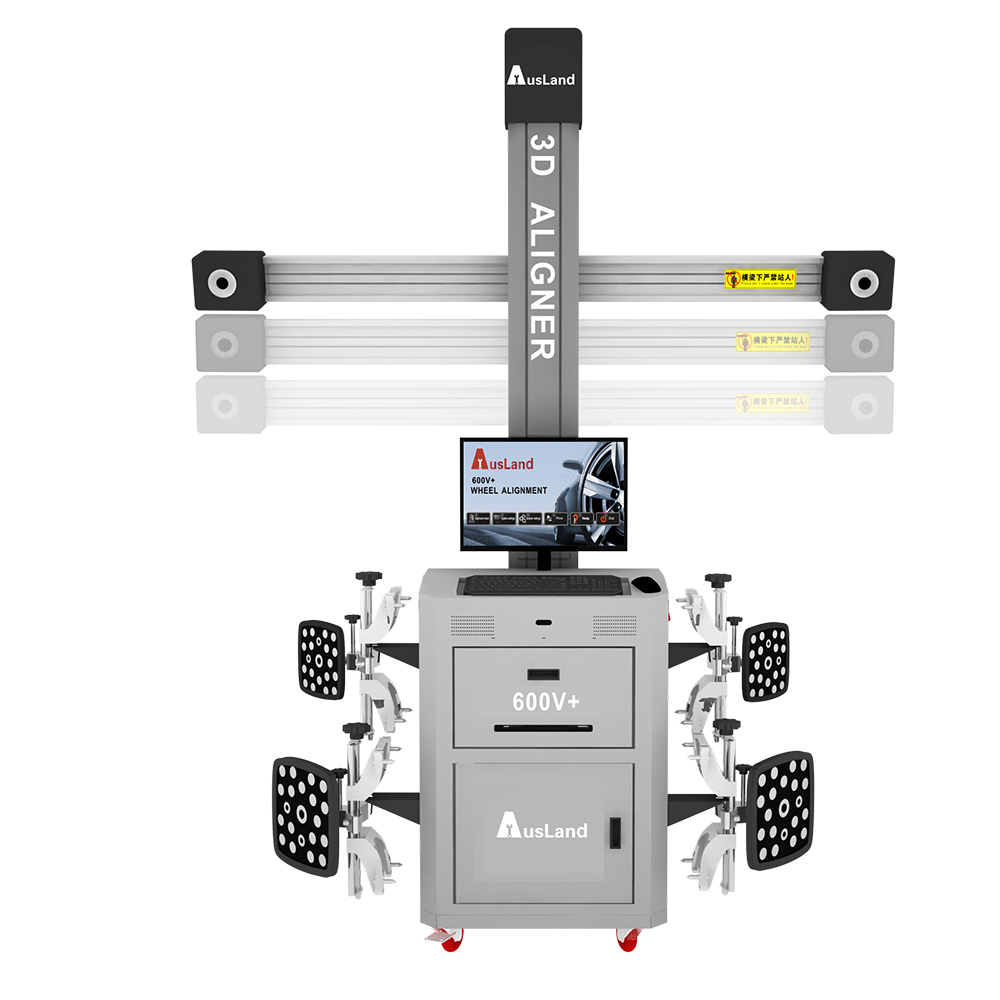

Ausland-600V+ Multi-Station AUTOMATIC TRACKING 3D Wheel Aligner





Item No.:ADWA003

Weight NW:

Package:

 Related Download Files:







 .pdf

 .pdf

 .pdf

CE-FC-ROHS
GET GUOTES

GET GUOTES

  X
Submit

Product advantage:

1.Intelligent sound recognition

2.Measurement platform support:pit,four post lift, big scissor lift,small scissor lift

3.Auto trace function no requirement of manual intervention

4.Camera beam follows lift movement automatically during the measurement procedure,ennable the operator to work on the chassis at any height.

5.Support improperly leveled platform,it can be measured as long as the target is in the visual range.

6.Optimized dynamic visual technology, live caster data

7.Shortest in the industry, rolling runout compensation without pause

8.Track width ,Track width difference,wheelbase, wheelbase difference detection

9.Display real-time Kingpin , adjust suspension data conveniently

10 .Real-time target monitor

Specification

Item Precision Range maximum measuring range
Camber: ±2’ ±2° ±20°
Front Total Toe-in: ±2’ ±2° ±20°
Caster: ±4’ ±10° ±20°
SAI/KPI: ±6’ ±15° ±20°
Setback: ±2’ ±2° ±10°

Environment requirements

Temperature:-10-50°

Relative humidity:≦85%

Display Precision:0.01°/1′/0.1mm/0.1inch
