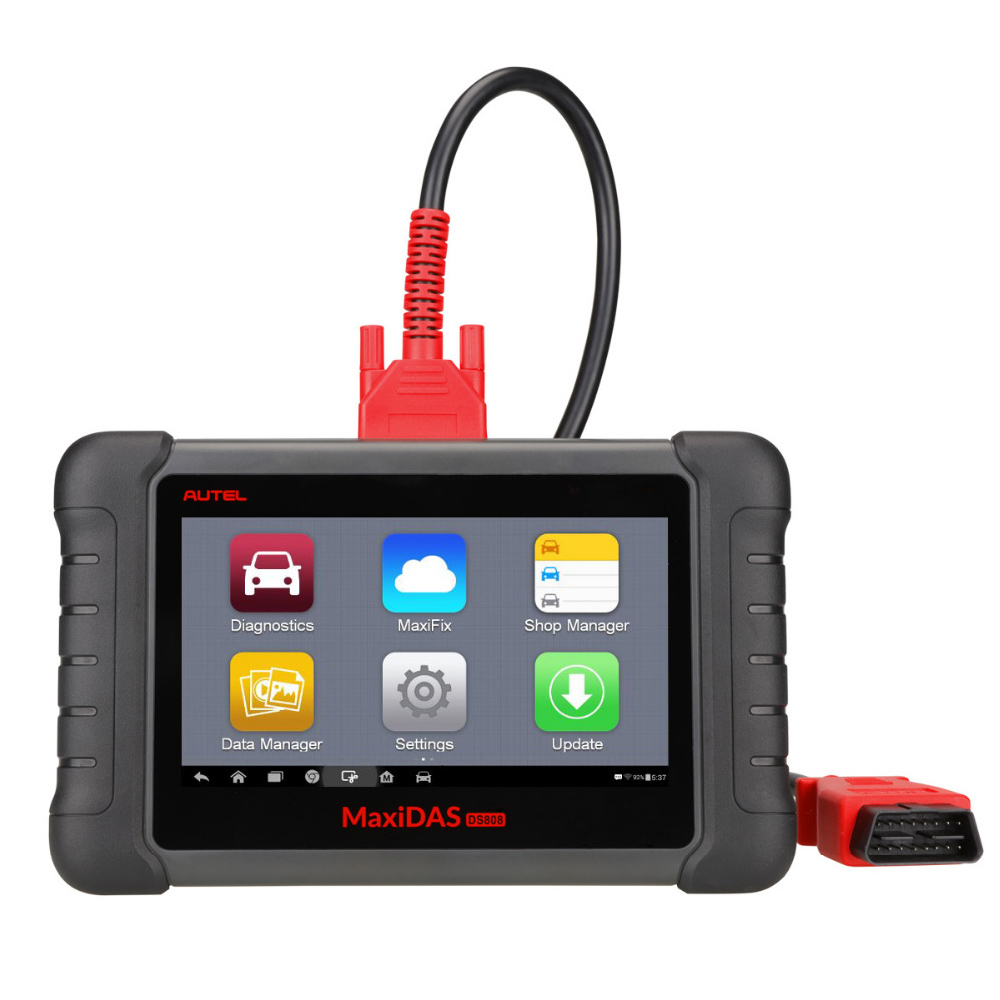

AUTEL MaxDAS DS808

New Auto Diagnostic Tool Autel MaxiCOM MK906 Same Function as Autel MaxiSYS MS906 Updated Version of DS708



Item No.: DS808

Weight NW: 1.42kg (3.13 LB)

Package: 20cm*15cm*3cm (Inch:15.35*12.32*4.84)

 Related Download Files:







 DS808.pdf

 DS808-02.pdf

 DS808-03.pdf

CE-FC-ROHS
GET GUOTES

GET GUOTES

  X
Submit

MaxDAS DS808 Specifications:



Recommended Use: Indoor

Operating System: AndroidTM 4.4.4

Processor: Cortex-A9 processor (1.5 GHz)

Memory: 32GB

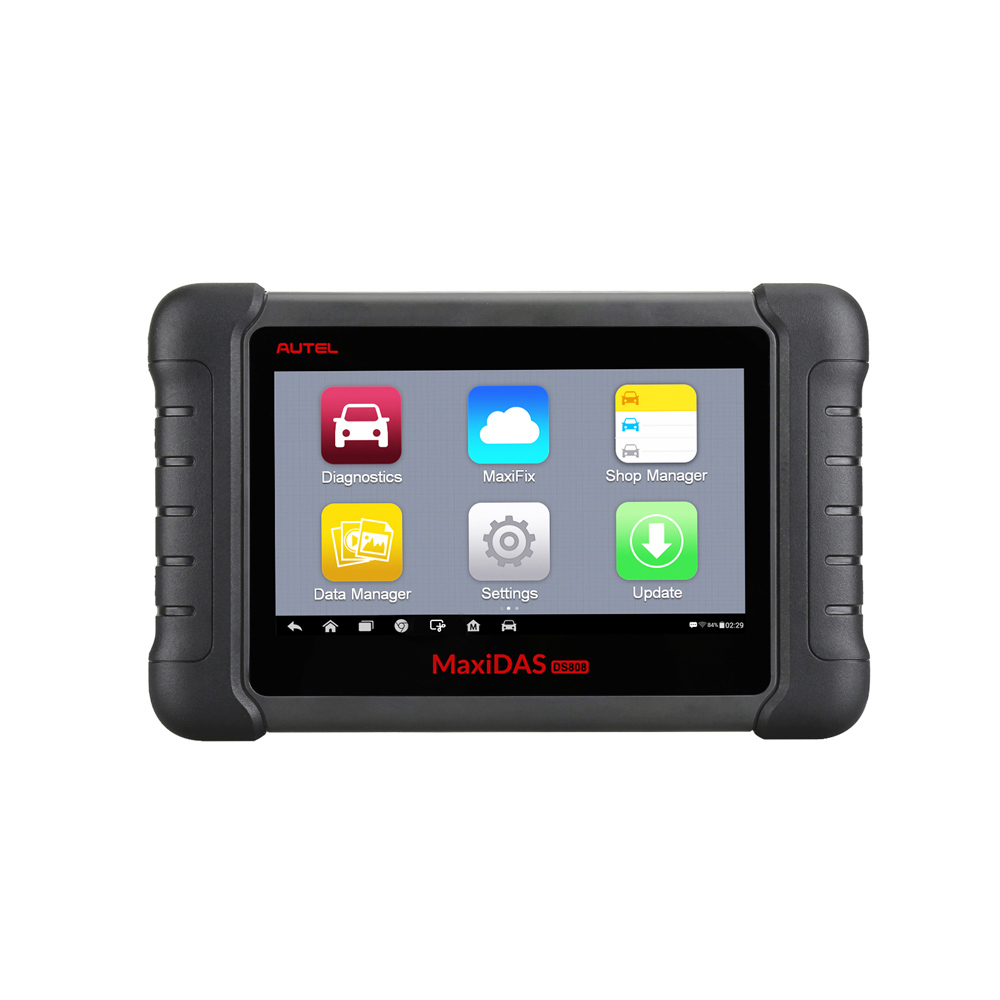

Display: 7-inch LCD capacitive touchscreen with 1024x600 resolution

Connectivity: Mini USB 2.0/USB 2.0/Wi-Fi/Micro SD card (supports up to 32GB)

Sensors: Ambient light sensor for brightness auto changing

Audio Input/Output: Input: N/A,Output: buzzer

Power and Battery: V/3200 mAh lithium-polymer battery,Charges via 5 VDC power supply

Tested Battery Life: Around 4.5 hours of continuous use

Battery Charging Input: 5 V/1.5 A

Power Consumption: 500 mA (LCD on with default brightness, Wi-Fi on) @3.7 V

Operating Temperature: -10 to 60°C (14 to 140°F)

Storage Temperature: -20 to 70°C (-4 to 158°F)

Operating Humidity: 5% - 95% non-condensing

Dimensions (W x H x D): 237.8 mm (9.4”) x 148.6 mm (5.9”) x 35.5 mm (1.4”)

Net Weight: 788g(2.42 lb.)

Supported Automotive Protocols: ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898(Highspeed,Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

Autel MaxDAS DS808 Features:



Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes

Exceptional OE-Level system coverage for all electronic systems

Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, etc. Smart AutoVIN technology for identifying vehicles easily

Automatic system and software updates with real-time push message notifications via Wi-Fi

Instant remote control tech support anytime, anywhere

Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes/p>

Interactive Data Logging sessions enable direct contact with Autel Technical Support for first-hand troubleshooting of diagnostic bugs and errors

One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized

Convenient data management system for managing internal program applications and reviewing data

Autel Maxidas DS808 Diagnostic Function:

retrieve ECU information

read & erase DTCs

view live data

perform active tests

The Diagnostics application can access the electronic control unit (ECU) for various vehicle control systems, such as engine, transmission, antilock brake system (ABS), airbag system (SRS) and more.

Autel Maxidas DS808 Vehicle List:

European vehicle list:

AUDI, BENZ, BMW, DACIA, EU FORD, LANDROVER, MINI, OPEL, PEUGEOT, RENAULT, SEAT, SKODA, VW, VOLVO, SMART, JAGUAR, BENZ SPRINTER, SAAB, FIAT, ABARTH, LACIA, ALFA ROMEO, VAUXHALL, MAYBACH, BENTLEY, BUGATTI, PORSCHE.

USA vehicle vist:

GM, CHRYSLER, FORD

Asia vehicle list:

SUZUKI, KIA, DAWEOO, ISUZU, TOYOTA, SUBARU, SCION, NISSAN, MITSUBISHI, LEXUS, INFINITI, HYUNDAI, HOLDEN, HONDA, ACCURA, MAZDA.



Autel Maxdidas DS808 Update:

Make sure the Display Tablet is connected to a power source with stable access to the internet.

Tap the Update application button from the MaxiDAS Job Menu; or tap the update notification message when received one; or tap the Update icon on Vehicle Menu in Diagnostics application. The Update application screen displays.

Check all available updates: If you decide to update all the items, tap the Update All button.If you only want to update one or some of the item(s), tap the Update button on the right column of the specific item(s).

Tap the Pause button to suspend the updating process. When you tap Continue to renew the update, the updating process will resume from the break point.

When the updating process is completed, the firmware will be installed automatically. The previous version will be replaced.

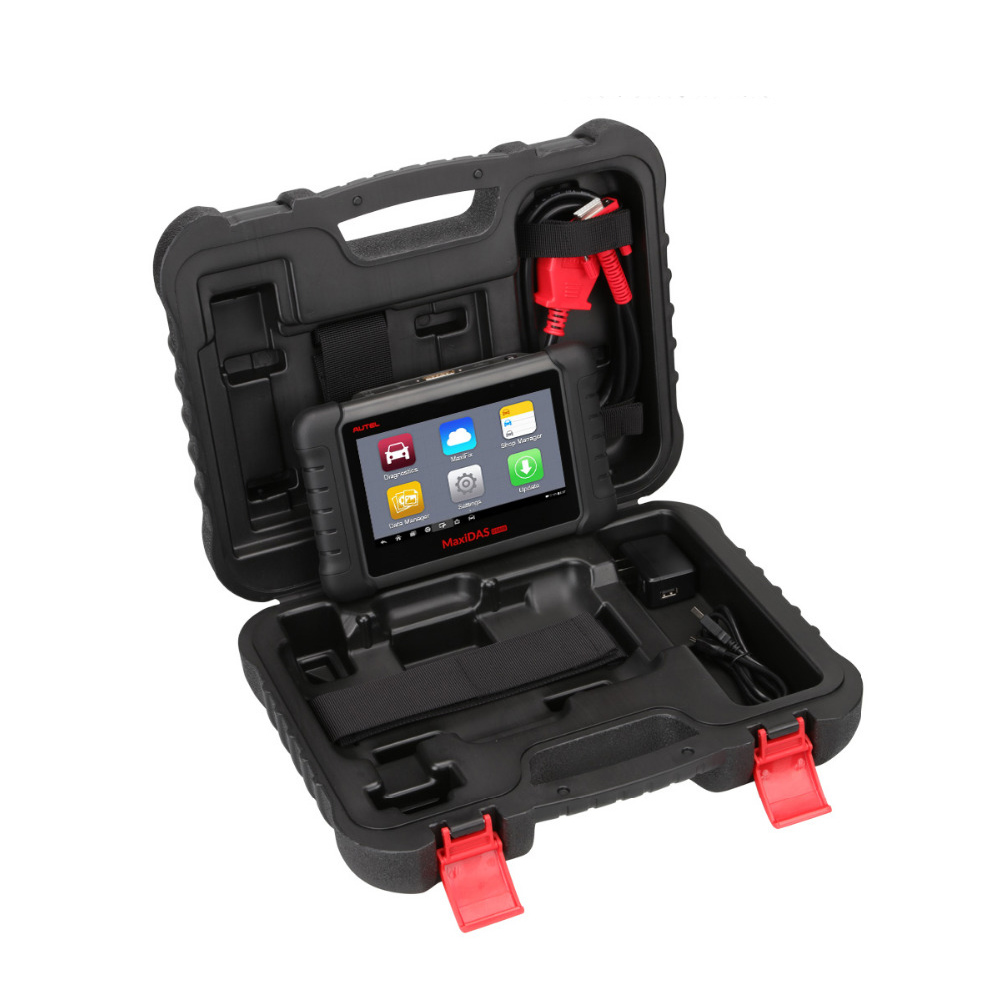

Packing List:

  • USB External Power Adapter

    USB External Power Adapter

    User Manual

    Quick reference guide

  • Main cable

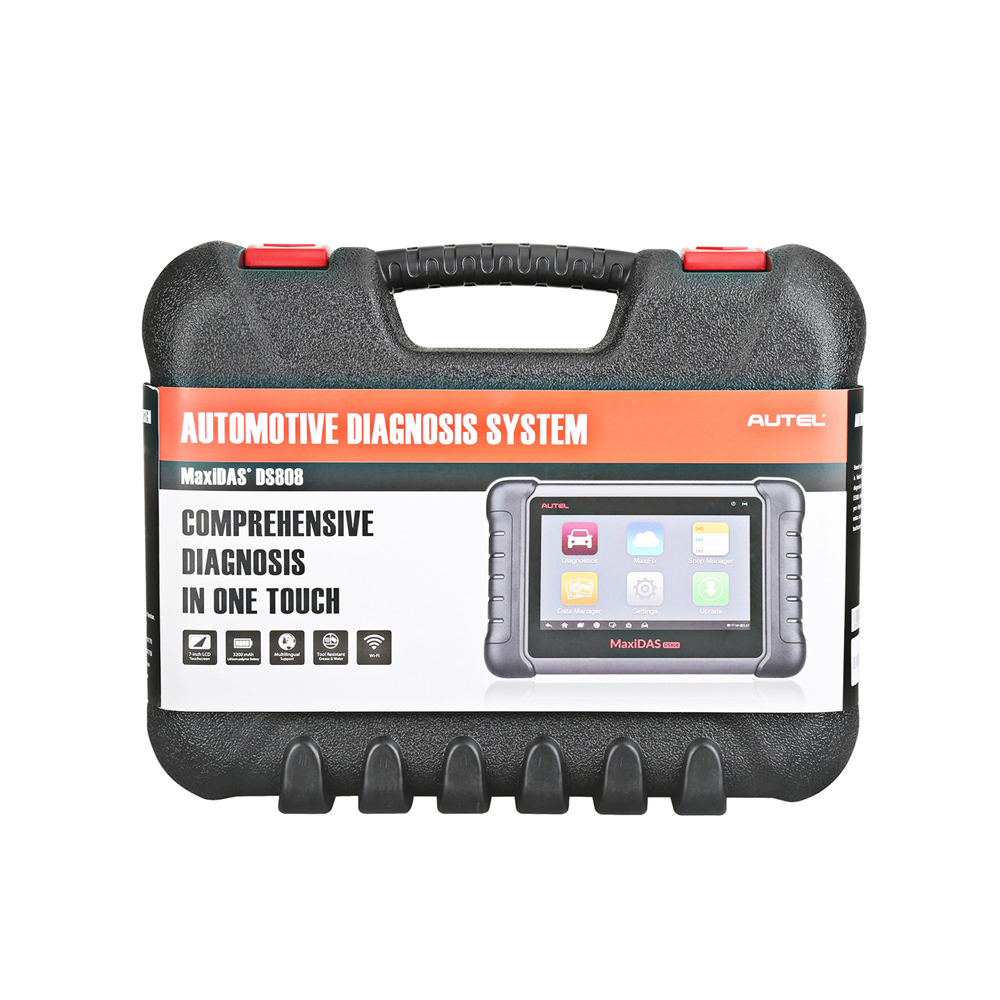

    Carry Case Mini

    USB Cable
