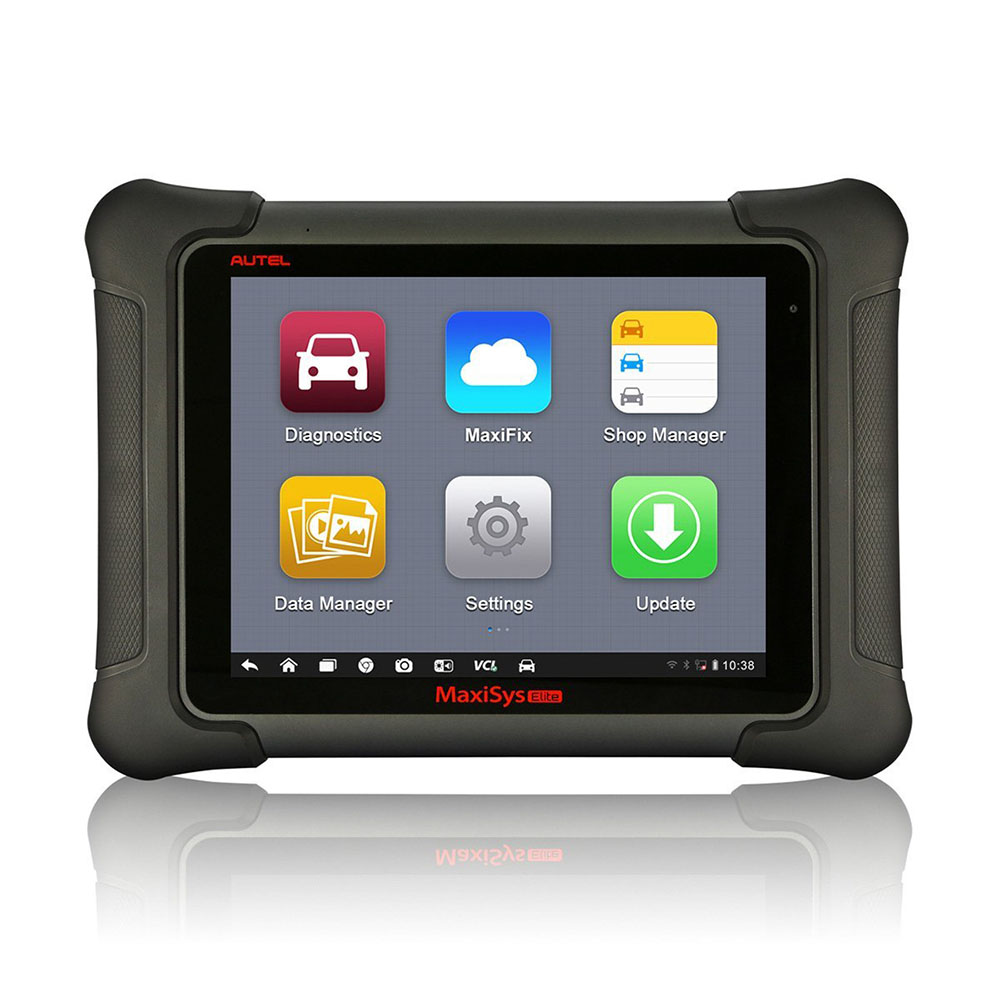

Autel MaxiSys Elite autologic diagnostic tool

Car fault diagnosis equipment MaxiSys Elite autologic diagnostic tool



Item No: Autel MaxiSys Elite

Weight NW: 12kg

Package: 67cm x 12cm x 45cm

 Related Download Files:

 Elite.pdf

 Elite-02.pdf

 Elite-03.pdf

CE-FC-ROHS
GET GUOTES

GET GUOTES

  X
Submit

Autel Maxisys Elite J2534 Car ECU Test Tool

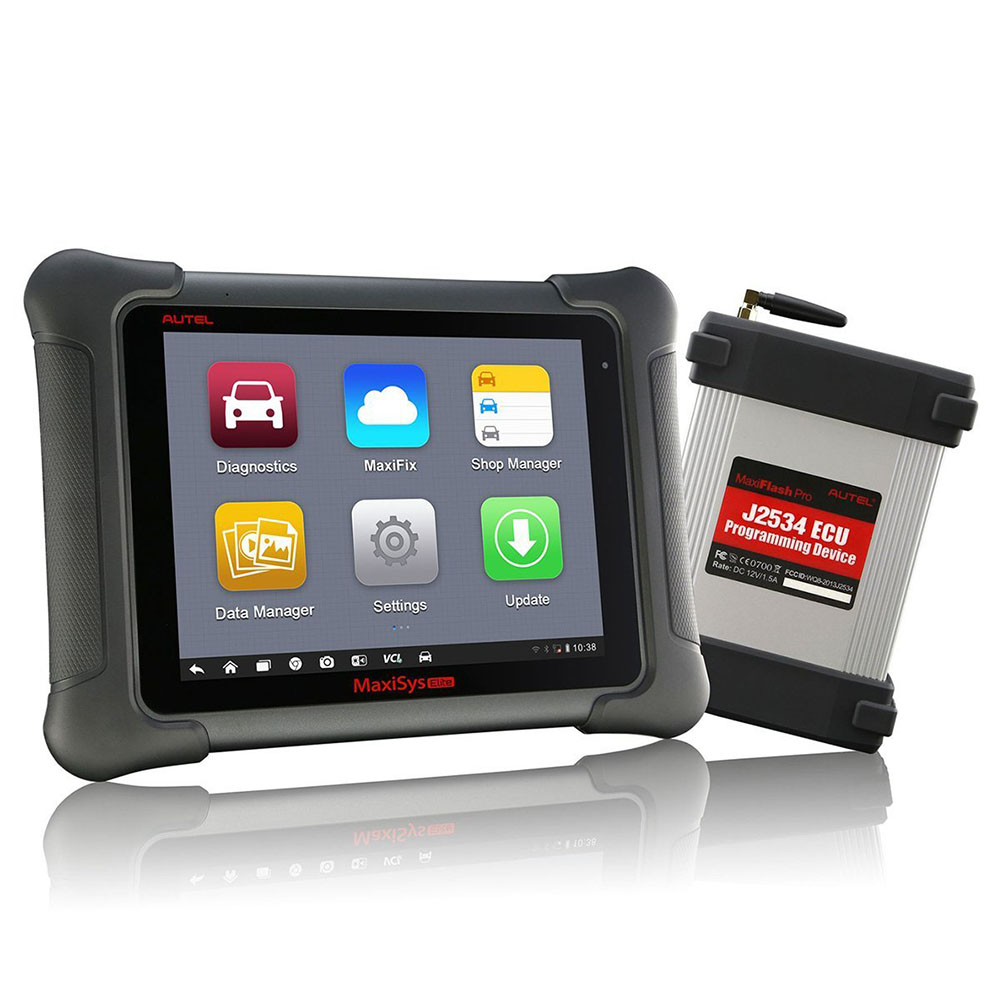

Latest AUTEL MaxiSys Elite with J2534 ECU Preprogramming Box

Autel MaxiSys Elite can diagnose the more than 80 US, Asian and European vehicle coverage for codes, live data, actuation tests, adaptations, coding and ECU programming Displays live data in text.

Autel Maxisys Elite Specifications:



Operating System: Android 4.4.4 KitKat

Processor: NVIDIA Tegra® 4 (4-PLUS-1 Quad-core Processor) 1.8GHz with ARM Cortex – A15 CPU

Memory: 2GB RAM & 32GB Embedded Memory

Display: 9.7” Retina display with 2048X1536 resolution & Capacitive touch screen

Connectivity: 802.11a/b/g/n/ac WIFI,Version 2.1 3Mbs Bluetooth,RJ45 Ethernet Connection,3.0 USB (2.0 Compatible),HDMI 1.4a,SD Card (Support up to 32GB)

Camera (rear): Rear: 8.0 Megapixel, Autofocus with Flashlight, Front: 2.0 Megapixel

Sensors: Ambient Light Sensor, G-sensor

Audio Input/Output: Microphone;Dual Speakers;3-Band 3.5 mm stereo/standard headset jack

Power and Battery: 3.7V/13600mAH Lithium-polymer battery;DC/12V/3A Power Supply

Input Voltage: DC/12V/3A

Power Consumption: Max 20W

Operating Temperature: -10 to +55°C

Storage Temperature: -20 to +70°C

Dimensions (W x H x D) : 309 X 225 X 35 (mm)

Autel MaxiSys Elite Features:

1. The most extensive complete system coverage for more than 80 US domestic, Asian and European makes and models

2. Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming

3. Uniquely integrated vehicle programming capabilities working with a SAE J2534-1 & -2 compliant vehicle programming pass-thru interface

4. Automatic system and software updates with real-time push message notifications via internet

5. Instant remote control tech support anytime, anywhere

6. Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and errors

7. One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized

8. Unique ergonomic design with rubberized outer protection and a rugged internal housing

9. Hardware running speed is twice than Maxysys MS908P.

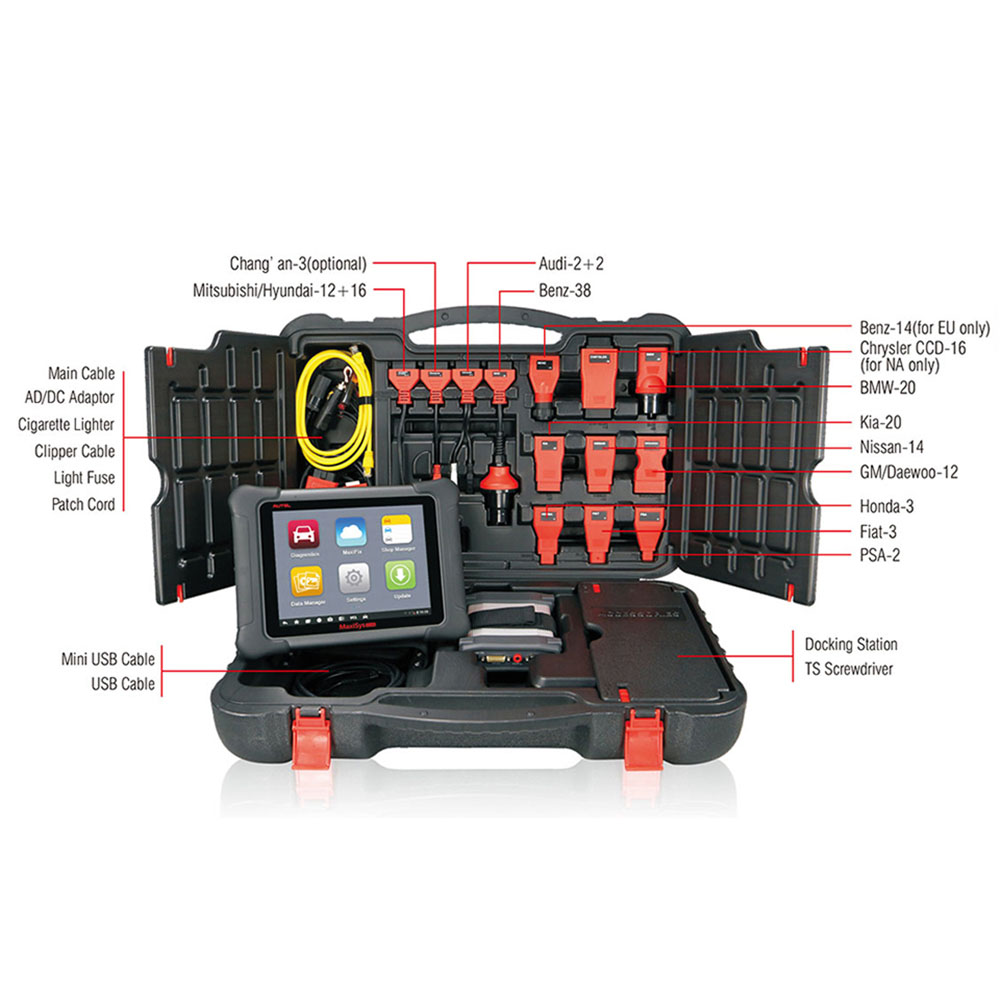

Autel Maxisys Elite Packing List:



1pc x Maxisys Elite Interface

1pc x Lighter Fuse

1pc x GM/Daewoo-12 adaptor

1pc x PSA-2 adaptor

1pc xFiat-3 adaptor

1pc x BMW-20 adaptor

1pc x Benz-38 adaptor

1pc x Kia-20 adaptor

1pc x Mitsubishi/Hyundai-12+16 adaptor

1pc x Nissan-14 adaptor

1pc x Honda-3 adaptor

1pc x USB Cable

1pc x Cigarette Lighter

1pc x Compact Disc (CD)

1pc x AC/DC External Power Adapter

1pc x Clipper Cable

1pc x Screwdriver

1pc x VW/AUDI-2+2 adaptor

1pc x Screwdriver

1pc x Adaptor for Chrysler-16 (for USA only) / 1pc x Adaptor for Benz-14 (for EU only)

1pc x Mini USB Cable

1pc x Ethernet Serial Cable
