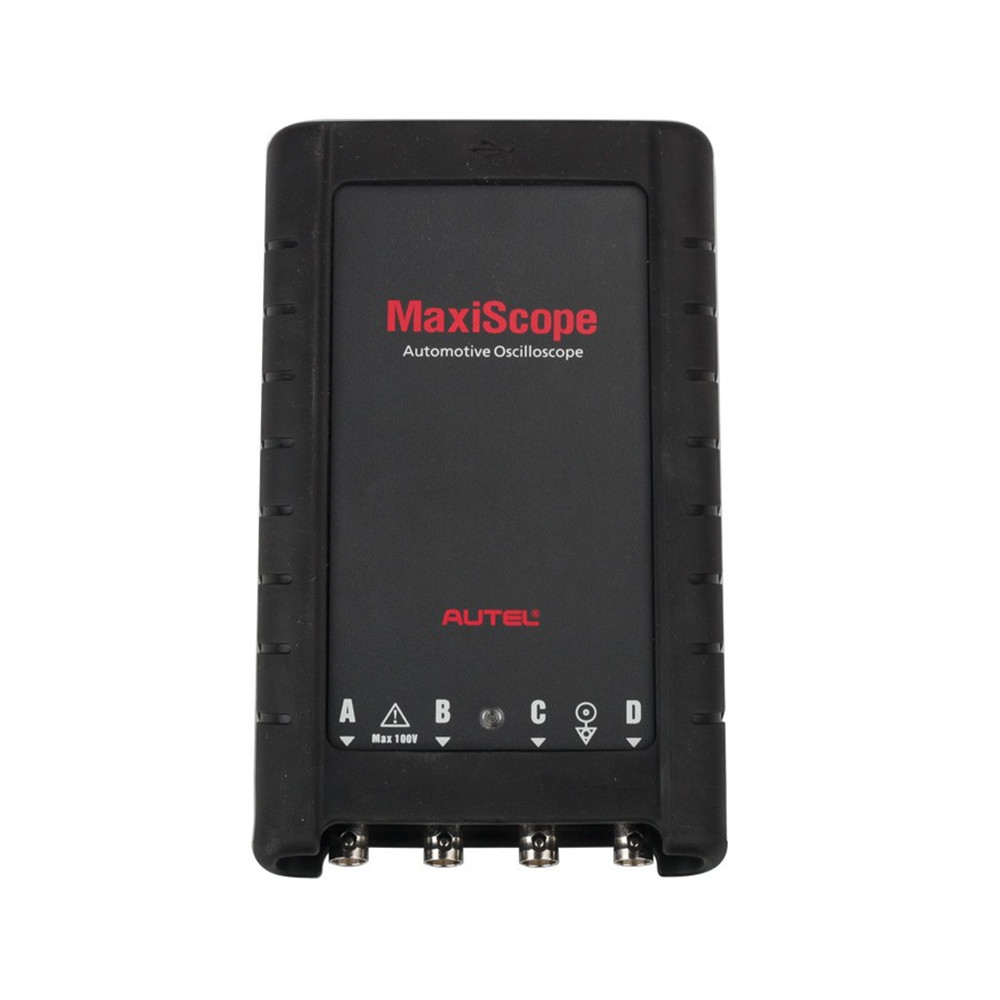

MP408 Features:
Features one-click auto setup of voltage scale and time base
Works on all makes and models of modern vehicles
Compatible with LIN, CAN and FlexRay data bus standards
Reads and displays electrical signals in high resolution waveforms
Allows manual editing of measurement parameter display
Saves and reviews waveform data
Features color coded 4-channel control panel
Intuitive UI design features easy trigger point adjustment and real time scale info display

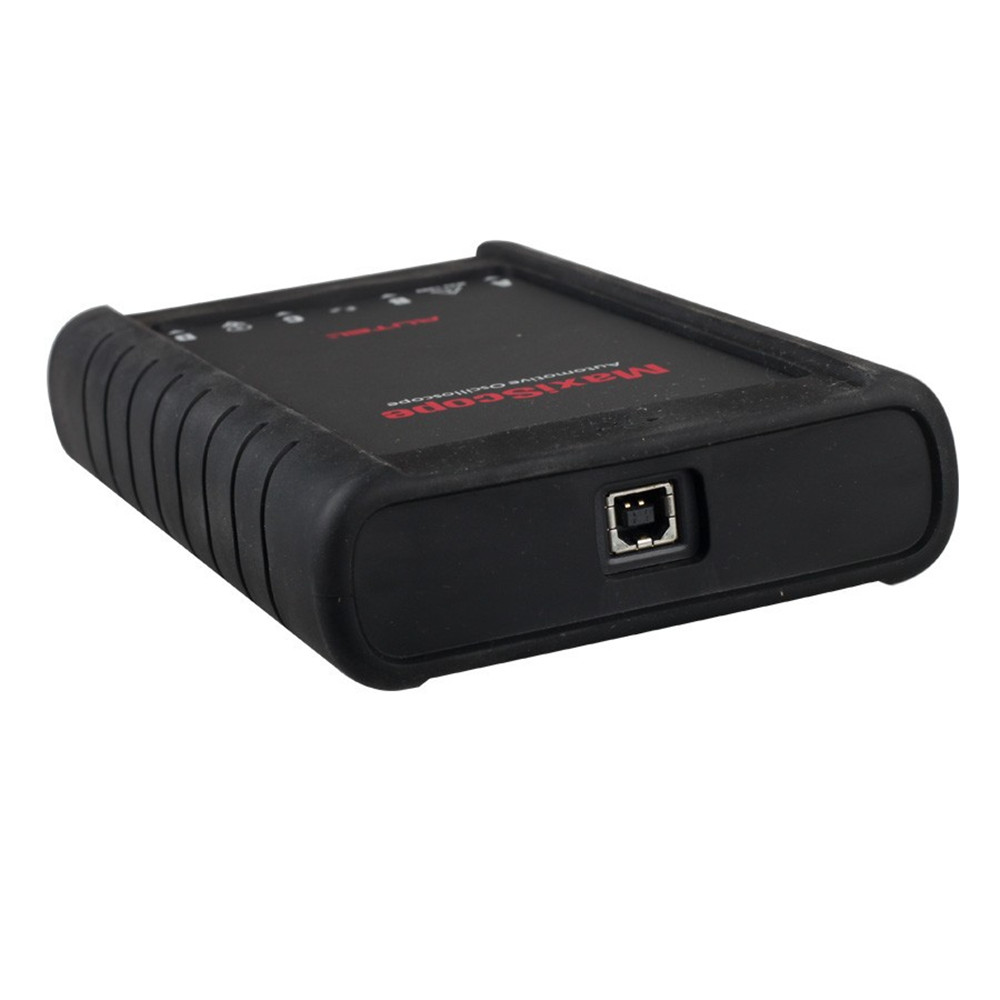

Direct power supply through USB connection
Free online software update through the Internet
Portable design with strong housing and protective rubber boot
Specification
Vertical resolution:12 bits
Channels:4
Bandwidth:20MHz
Accuracy:1%
Sensitivity:10mV/div to 20V/div
PC Interface:USB 2.0 – Cable supplied
Power Requirements:Powered from USB port
Input Ranges (full scale):±v50mV to ±100V in 11 ranges
Input Impedance:1MΩ in parallel with 22pF

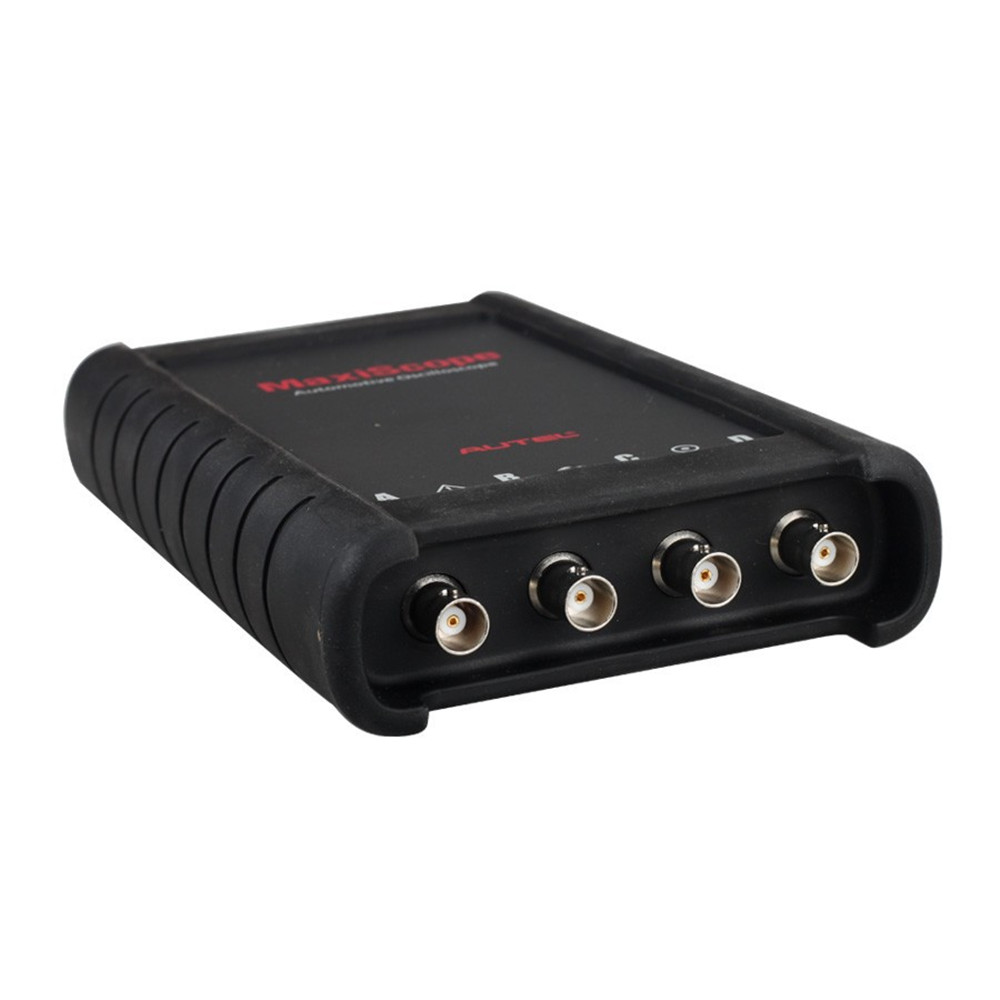

Input Type:Single-ended, BNC connector
Input Coupling:Software selectable AC/DC
Overload Protection:±200V on single input
Buffer Memory:32M samples shared among active channels
Waveform Buffer:Up to 1000 waveforms
Timebase Ranges:100ns/div to 1000s/div
Operating Temperature Range:0°C to 50°C (15°C to 40°C for quoted accuracy)
Storage Temperature Range:-20°C to +60°C
Storage Humidity Range:5% to 95%RH, Non-condensing
Dimensions:190X115X38mm
Weight:< 0.5kg
Maximum Sampling Rate (Single Shot)
1 or 2 channels in use:80MS/s
3 or 4 channels in use:20MS/s

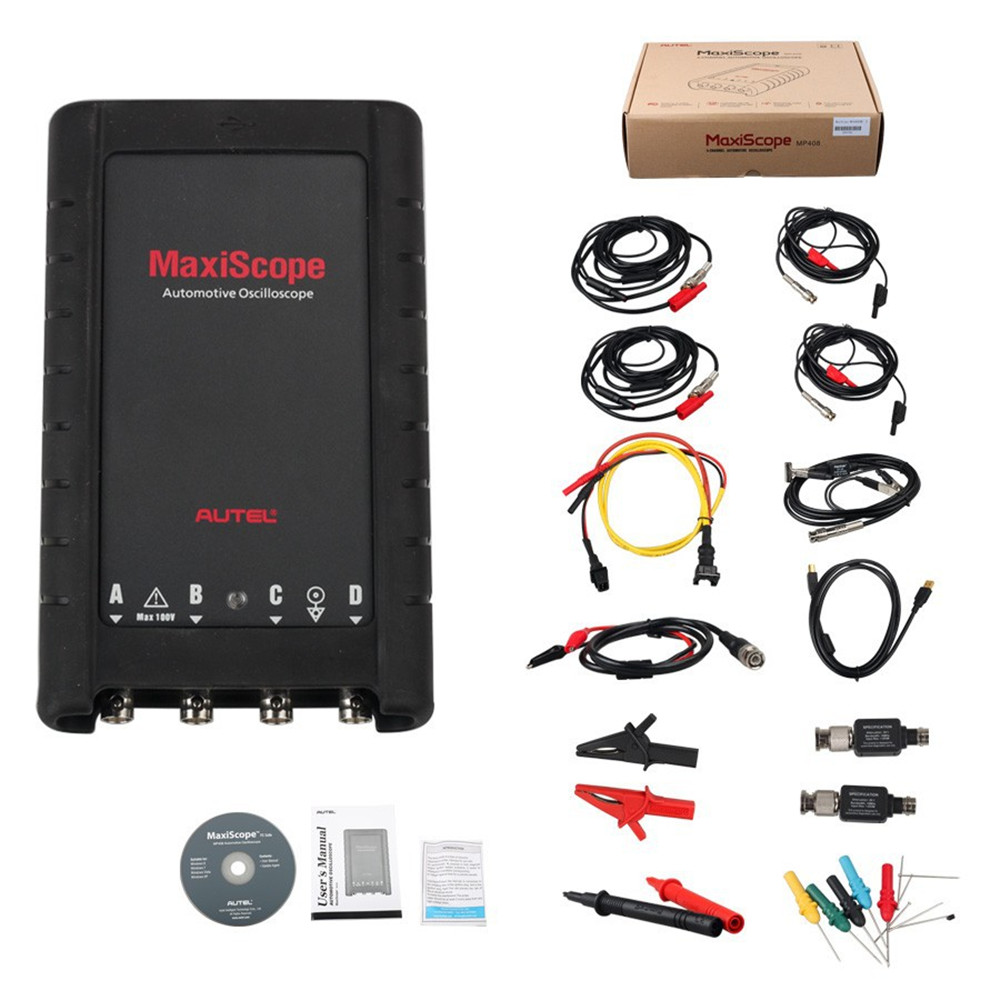

Packing list
1.5m USB Cable X1
Secondary Ignition Pickup - X1
Attenuators 20:1 - X2
Small Crocodile Clip Set - X1 Pair
Multimeter Probes – X1 Pair
3m (10ft) Screened Test Leads - X4
2-pin Breakout Lead - X1
Large Crocodile Clip Set - X1 Pair
Acupuncture Probe Set - X1
