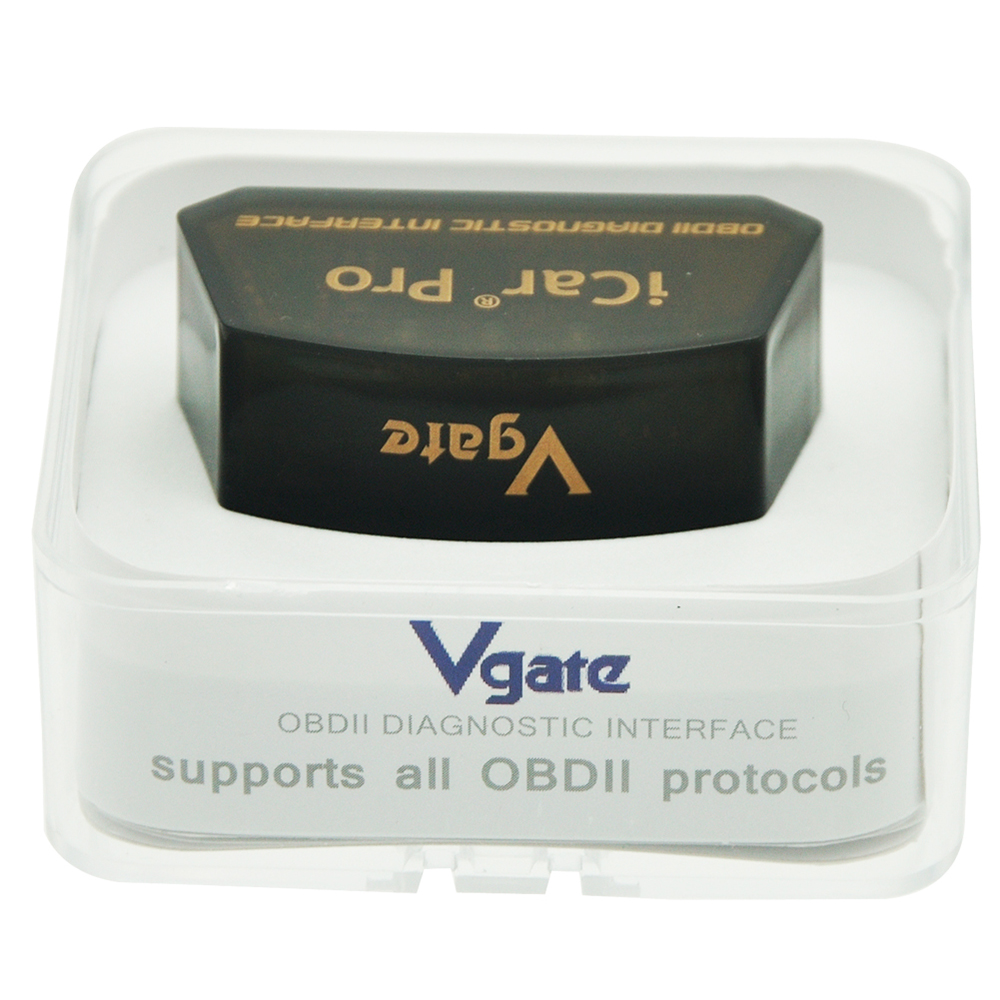

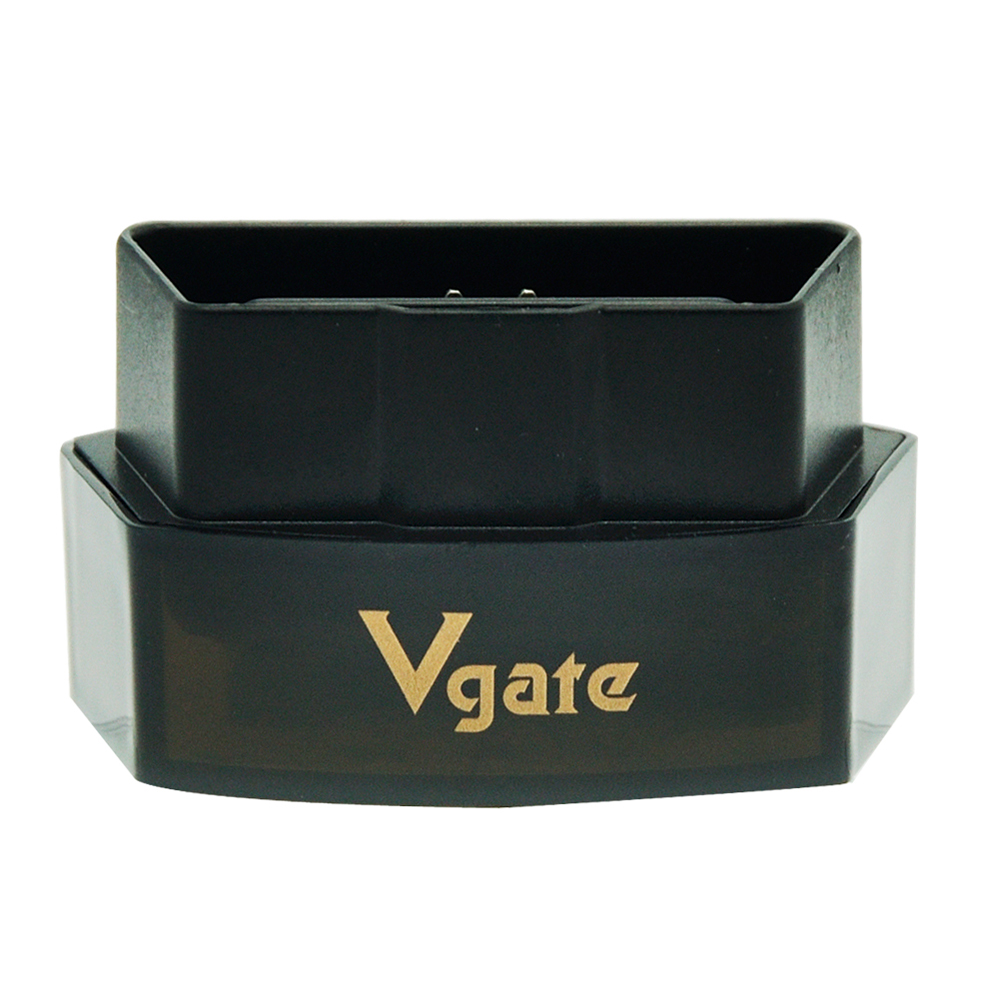

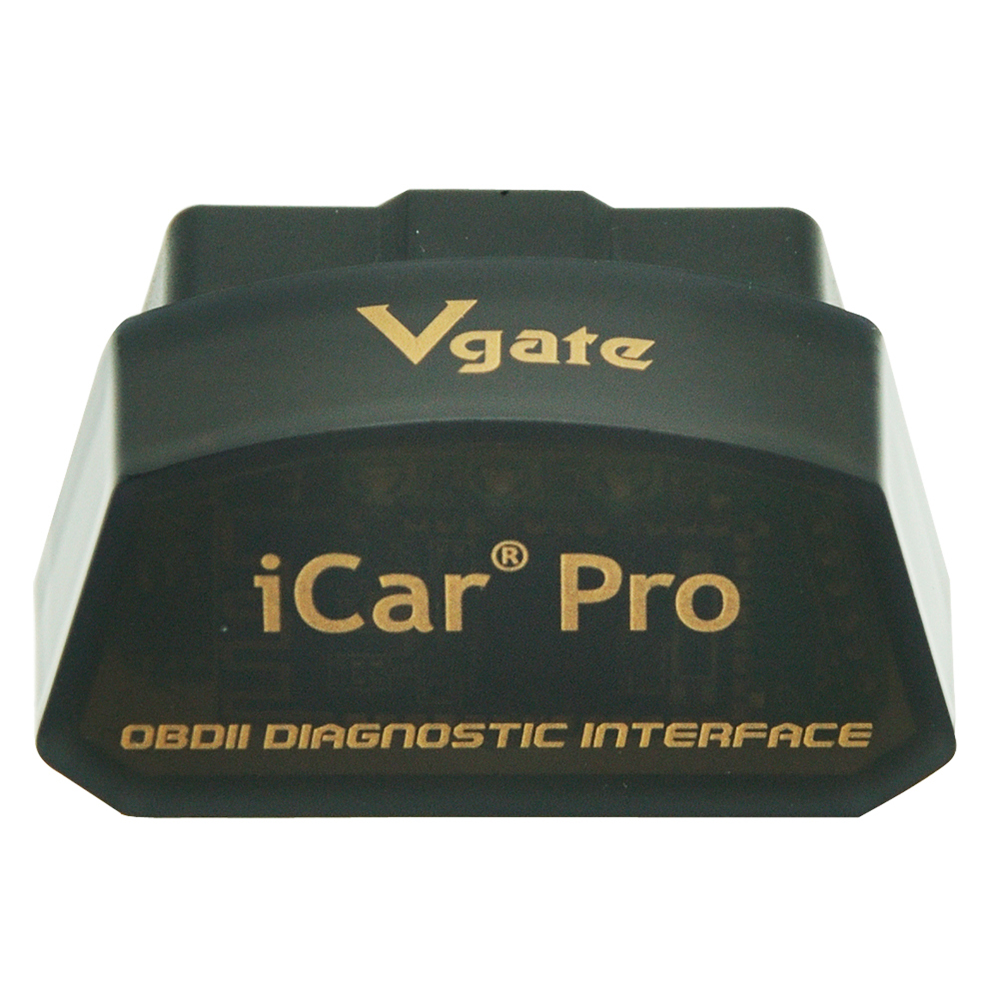

icar pro wifi OBD Scanner

Vgate iCar OBD II adapter is a powerful car diagnostic tool developed to read the real-time car engine data, such as engine speed, ignition time, fuel trim, water temperature, fuel consumption.

Item No.:OBCS005-W

Weight NW:0.1KG(0.22LB)

Package:7cm*7cm*3.5cm(Inch: 2.76*2.76*1.38)

Related Download Files:

.pdf

GET GUOTES

Features:

CLEAR CHECK ENGINE LIGHT - This iCar Pro code reader will help you save money and accurately diagnose check engine light problem. Very easy to use.

EASY FITMENT - The majority of cars made in the past 2 decades are fitted with an OBD2 diagnostic port, simply find the port and plug the iCar Pro in.

FIT AND FORGET - It really is possible to fit and forget beacuse it's micro size and unique power saving functionality that protects your battery

WORKS WITH HUNDREDS OF APPS - The Vgate iCar Pro Bluetooth Low Energy device works with the most popular OBD apps. Please find download instruction for Android device in product description.

2 YEAR WARRANTY - We offer a 2 year warranty as standard. If you have any problem with the device simply send it back and we will despatch a brand new replacement the following working day.

Functions:

Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning. (over 3000 generic code definitions in the database).

Clear trouble codes and turn off the MIL ("Check Engine" light)

Engine RPM

Calculated Load Value
Coolant Temperature

Fuel System Status

Vehicle Speed

Short Term Fuel Trim

Long Term Fuel Trim

Intake Manifold Pressure

Timing Advance
Intake Air Temperature

Air Flow Rate

Absolute Throttle Position

Oxygen sensor voltages/associated short term fuel trims

Fuel System status

Fuel System status

Tips before your purchase:

For your vehicle to be OBD II compliant it must have a 16-pin DLC (Data Link Connector) under the dash and the Vehicle Emission Control Information

Label must state that the vehicle is OBD II compliant. To be sure your vehicle complies with OBD-II, look for a sticker on the vehicle

under the hood in the engine compartment that clearly states “OBD II compliant or certified”.

Vehicle Coverage:

Works on all OBD2 Vehicles (1996 onwards in USA) and EOBD vehicles (Petrol cars from 2001 and diesel cars from 2003/2004 in Europe)

OBD-II protocols supported:

SAE J1850 PWM(41.6 Kbaud)

SAE J1850 VPW(10.4 Kbaud)

ISO9141-2(5 baud init,10.4 Kbaud)

ISO14230-4 KWP(5 baud init,10.4 Kbaud)

ISO14230-4 KWP(fast init,10.4 Kbaud)

ISO15765-4 CAN(11bit ID,500 Kbaud)

ISO15765-4 CAN(29bit ID,500 Kbaud)

ISO15765-4 CAN(11bit ID,250 Kbaud)

ISO15765-4 CAN(29bit ID,250 Kbaud)

SAE J1939 CAN(29bit ID,250* Kbaud)

USER1 CAN(11*bit ID,125* Kbaud)

USER2 CAN(11*bit ID,50* kbaud)

Specification:

Supply Voltage: 11.5V—15V

Supply Current: <200Ma

Standby Current: <30Ma ( TONWON Pro =<3Ma )

Operating Temperature: -40℃--85℃

Operating Humidity: 5%--95%RH Non-Dewfall

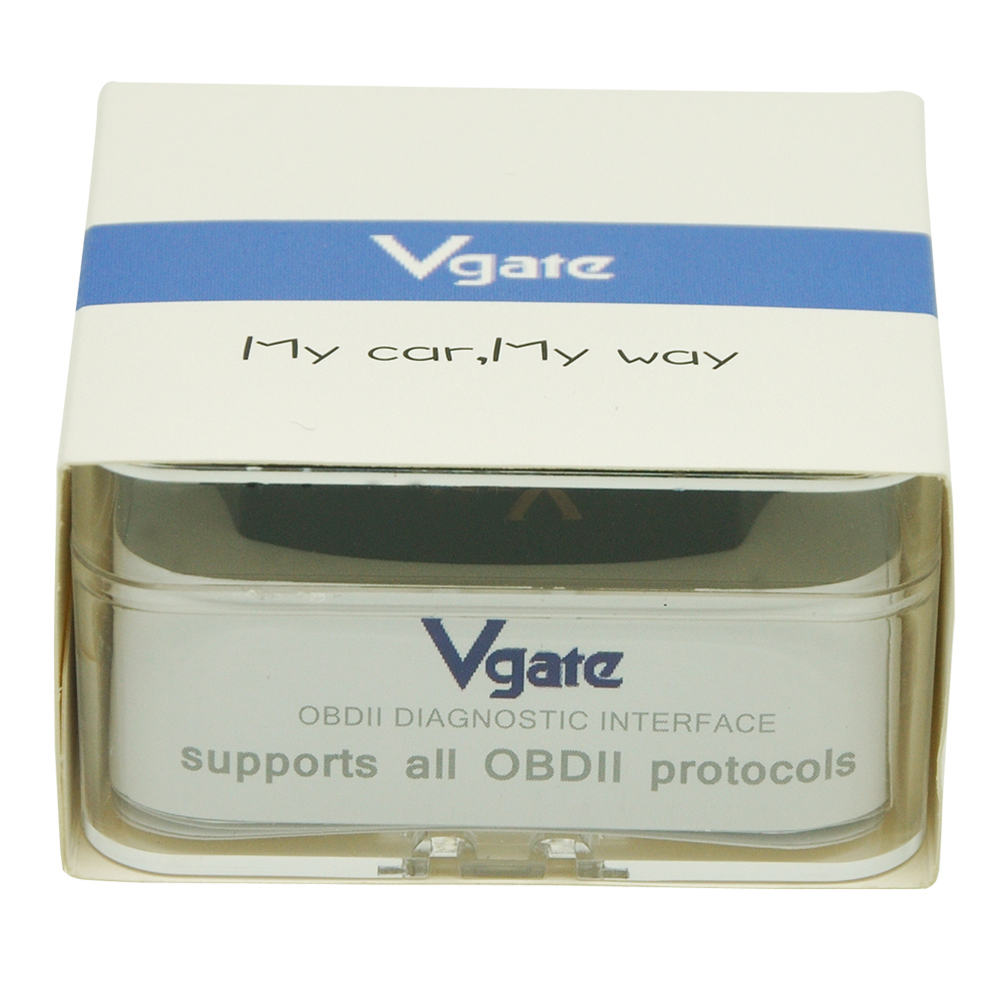

Package Includes:

1pc x Vgate iCar Pro wifi OBDII adapter

1pc x User manual
