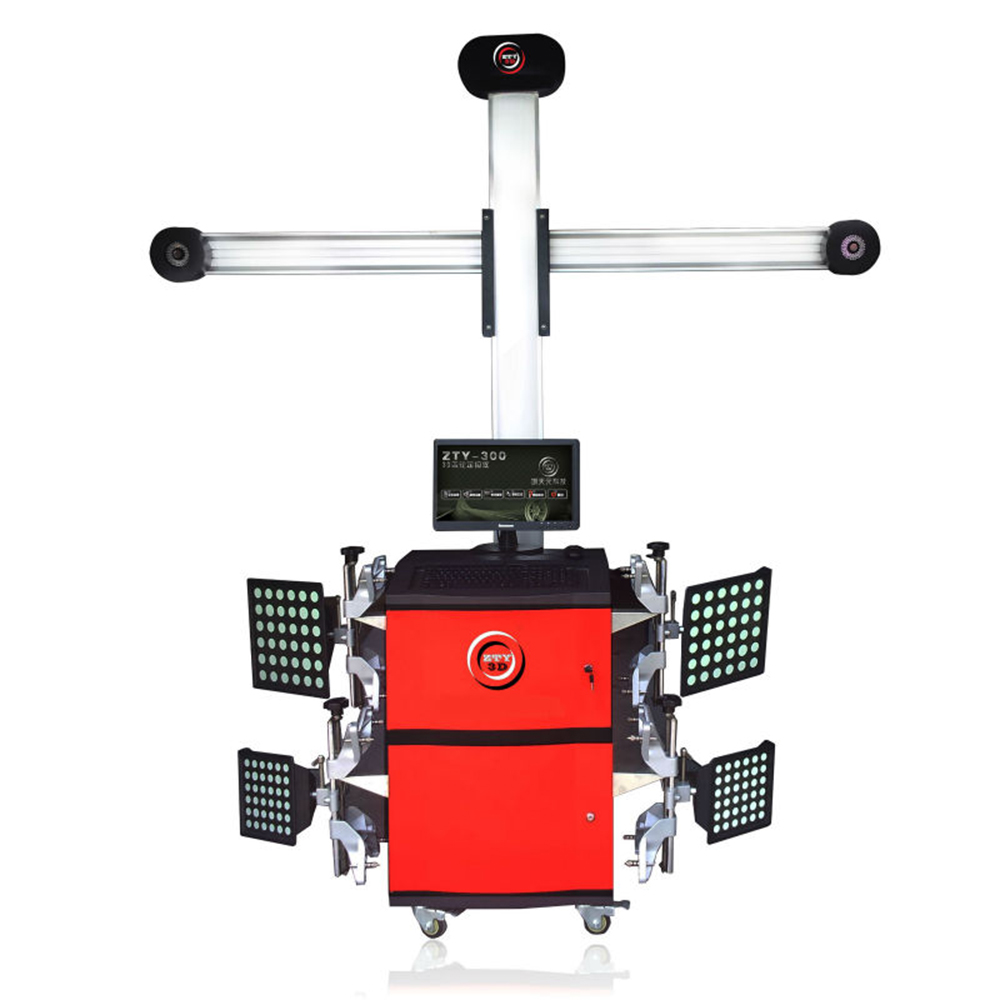

Highlight of ZTY-300M Wheel Aligner:
1, 3D Camera Alignment Machine
2, Take up small space: Only need 2 post lift, affordable choose.
3, Intelligent Tracking: Self tacking, automatic tracking
4, Calibration Easiness: Simplicity, Fast to calibration
5, Flexible in working condition require
ZTY-300M Wheel Aligner Specification:
Power Supply: AC 110/220V 50
Computer Host: Lenovo/Dell (or all in one computer)
Monitor: 18. 5 inch color monitor (all in one computer comes with 23 inch monitor)
Toe-in: 0~+_20 degree
Camber: 0~+_8 degree.
SAI/Kingpin: 0~+_20 degree
Caster: 0~+_20 degree
Thrust Angle: 0~+_5 degree
Rim diameter: 10 ~ 23 inch
Display accuracy: 0.01°/ 1’ / 0.1mm / 0.1inch
ambient temperature: -10°c~50°c
relative humidity: ≤85%

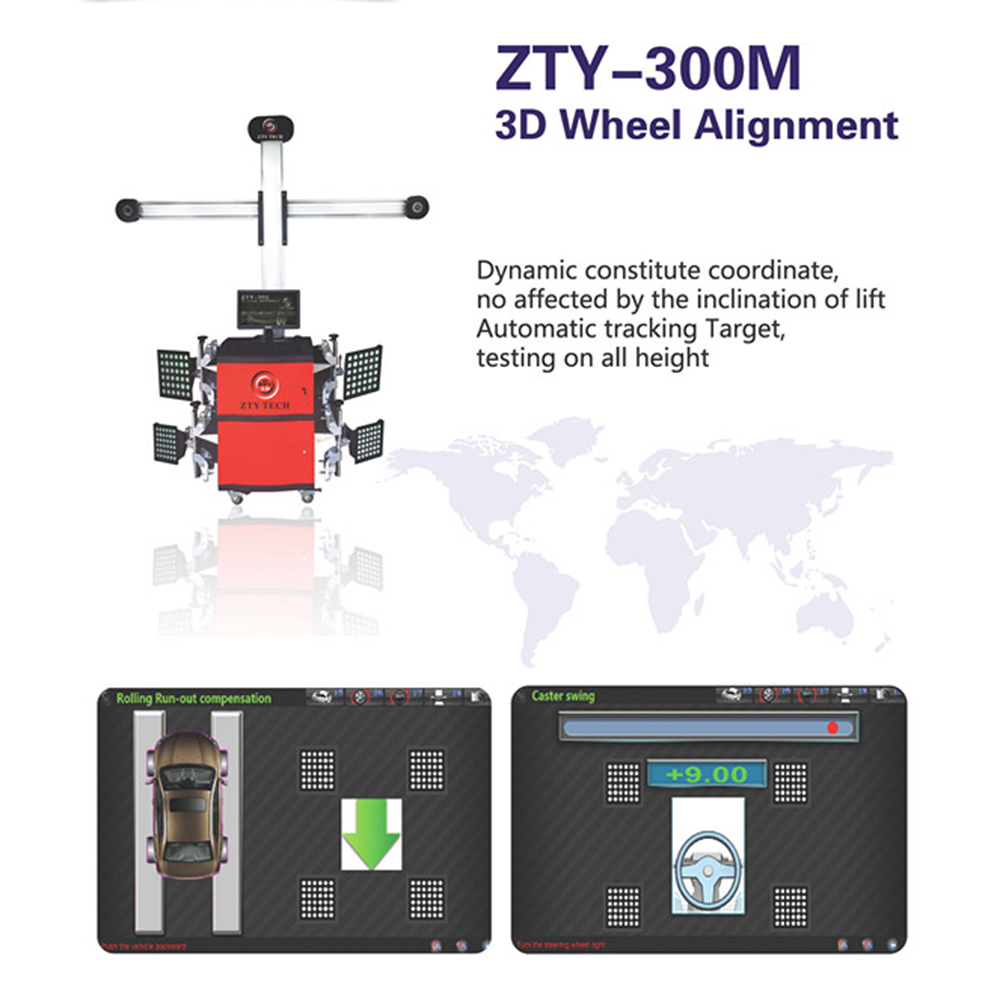

ZTY-300M 3D Camera Wheel Alignment Advantage:
1 Independent intellectual property rights, hold invention and utility patents
2 Superiority on technology, have more than 3 ten years specialist
3 Specializing 3D wheel alignment R & D, more reliable, more cost-effective
4 Dynamic constitute coordinate, no affected by the inclination of lift
5 Quick,select mode>rolling run-out>caster swing>result,quick one step.
6 None waiting during rolling or caster swing, save test time
7 Automatic calculate wheel diameter, no manual input.
8 Industry best camera and optical system.
9 A wide range of wheel clamp,clamp 10~23 inch rim
10High precision anti-throwing target,Reinforced plastic enclosure,Laser fabrication, unique L recognition motifs
11 Friendly interface,The unique manufacturer search function
12 Perfect additional measurement
13 Real-time check target picture
