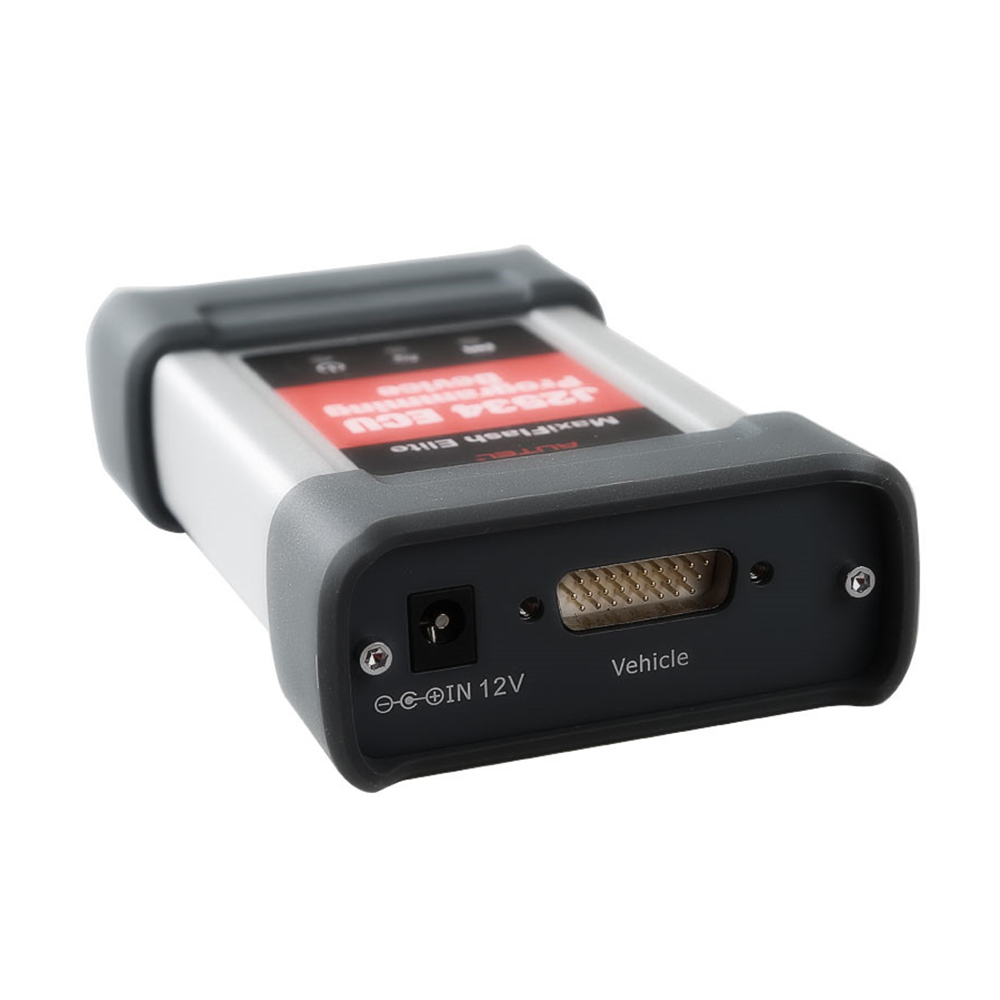

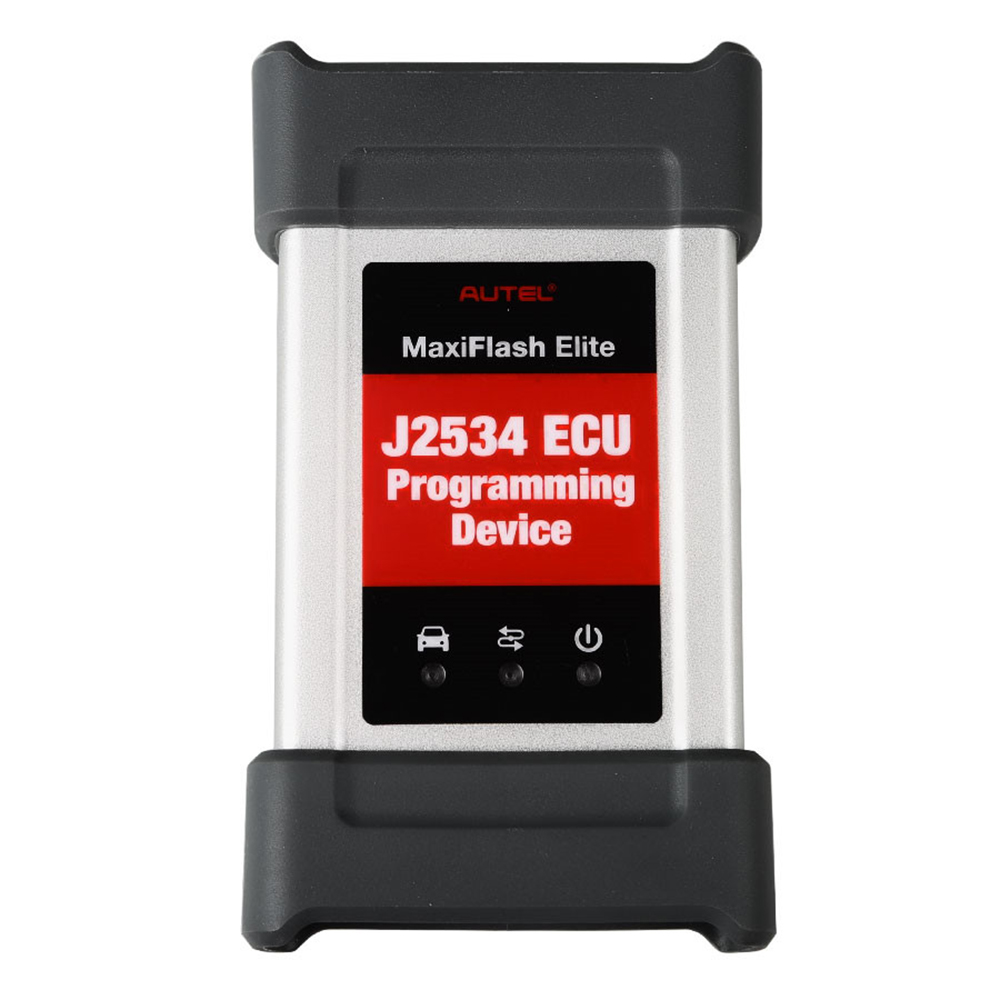

Autel MaxiFlash Pro J2534 ECU Programming Tool

Autel MaxiFlash Pro J2534 ECU Programming Device Reliable, fast performance, and flexible Using the OEM software, this premier tool is capable of providing dealer-level programming capabilities for all makes, all models at an affordable price Support Toyota, Volvo, Honda, Jaguar and BMW.



Item No.:ALDT008

Weight:1.6KG(3.53LB)

Package:33cm*23cm*8cm(Inch: 12.99*9.06*3.15)

 Related Download Files:







 .pdf

 .pdf

 .pdf

CE-FC-ROHS
GET GUOTES

GET GUOTES

  X
Submit

Autel MaxiFlash Pro J2534 ECU Programming Device Features and Functions:

1. Fully compatible with both SAE J2534-1 and J2534-2 reprogramming standards

2. Performs the standard PassThru J2534 functionality

3. Compatible with Toyota Techstream, Volvo VIDA, Honda HDS, Jaguar-Land Rover IDS and BMW 3G for OEM diagnostics

4. Fast performance ensures quickly reprogramming even the newest controllers

5. Wireless with advanced networking functions

6. Built-in wireless and data storage

7. Rugged design capable of withstanding harsh environments

8. Internet upgradeable

Notice:

1. MaxiFlash Pro can work together with Autel Maxisys 908/ 908P to support more cars

2. If you work it alone, it can only support Toyota Techstream, Volvo VIDA, Honda HDS, Jaguar-Land Rover IDS and BMW 3G for OEM diagnostics (Need to Get Software Yourself)

3. For programming functions, customers need to have online account and password

Autel MaxiFlash Pro J2534 ECU Programming Device Specification:

Supply Current: 350mA @ 6VDC 200mA @ 12VDC 110mA @ 24VDC

Operating Temperature: 0°C to +60°C (ambient)

Storage Temperature:  -65°C to +100°C (ambient)

Dimensions: Length: 183.8 mm (7.23") Width: 135.5mm (5.33") Height: 41 mm (1.6")

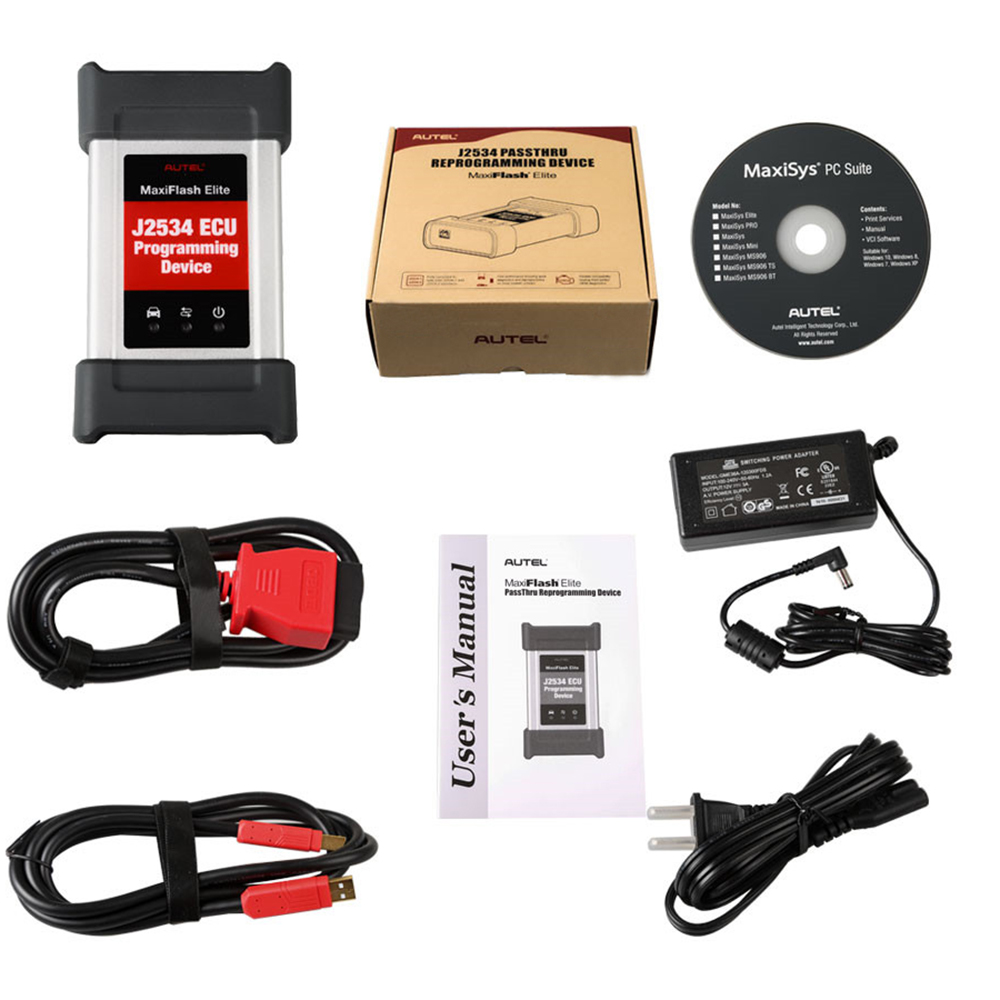

Package including:

1pcs x J2534 ECU Programming Device

1pc x MVCI to OBDII Cable

1pc x Wi-Fi Antenna

1pc x USB Cable

1pc x OBDII 16PIN Cable

1pc x User's Manual

1pf x Ethernet Serial Cable

1pc x AC/DC External Power Adapter

1pc x CD
