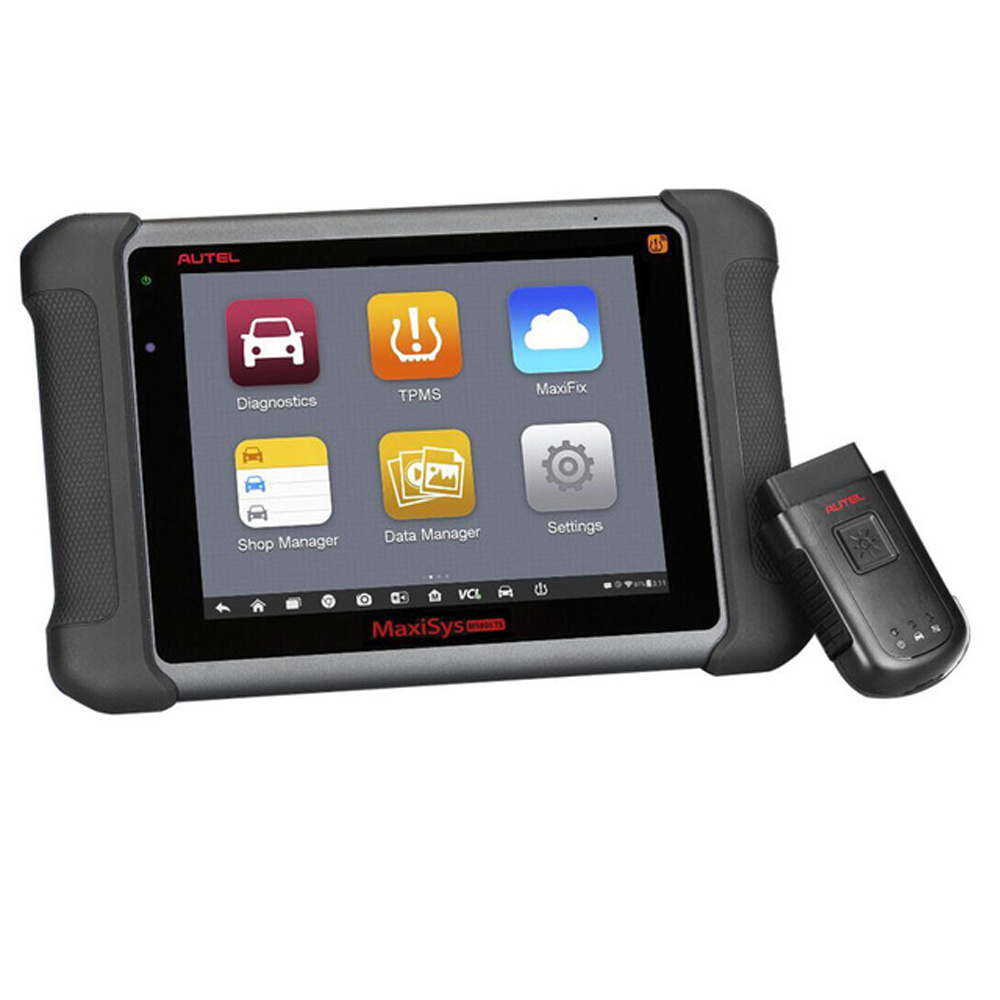

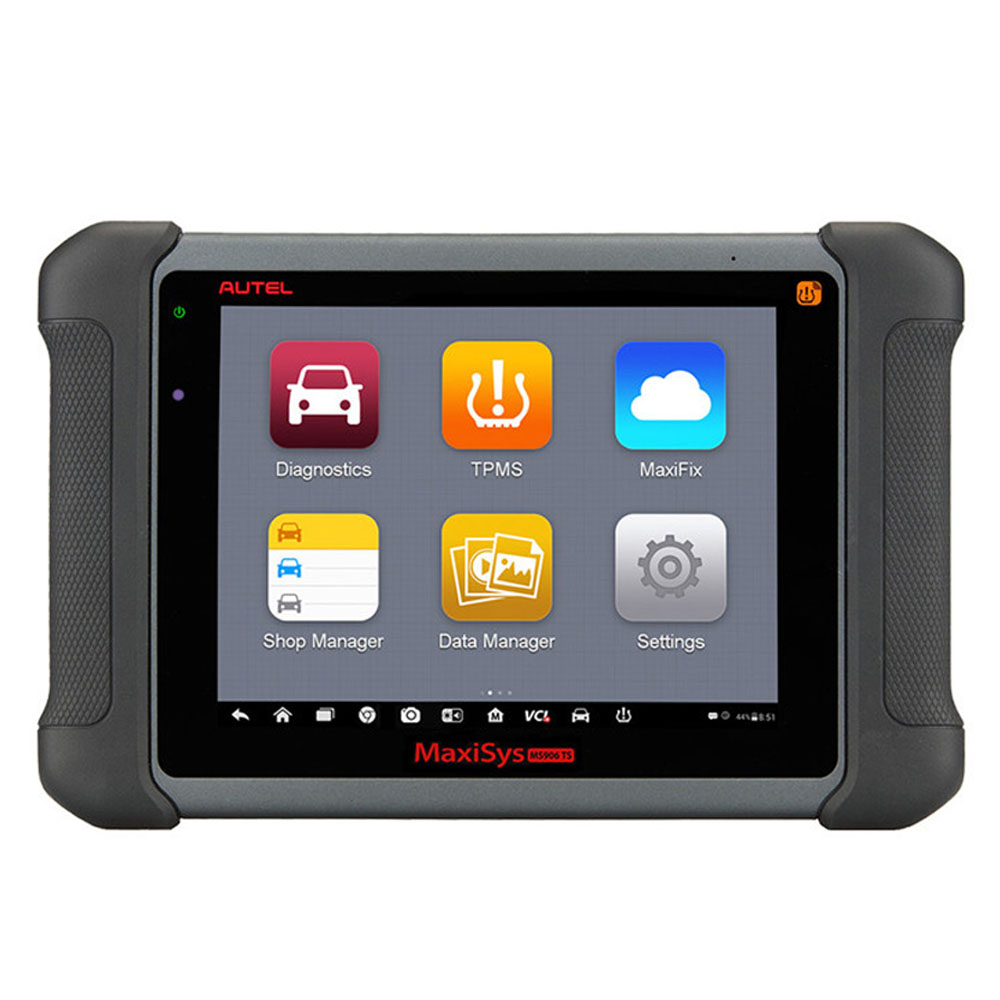

Autel MaxiSys MS906TS

New Auto Diagnostic Tool Autel MaxiCOM MK906 Same Function as Autel MaxiSYS MS906 Updated Version of DS708



Item No.:ALDT007

Weight NW:12kg(26.46LB)

Package:66cm*22cm*44cm(Inch:25.98*8.66*17.32)

 Related Download Files:







 MS906TS User Manual.pdf

 Car List for Autel MaxiSYS MS906TS.pdf

 .pdf

CE-FC-ROHS
GET GUOTES

GET GUOTES

  X
Submit

Maxisys MS906TS Specifications:



Operating System: AndroidTM 4.4.2, KitKat

Processor: Samsung Exynos T5260 6-Core Processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15)

Memory: 2 GB RAM & 32 GB ROM

Display: 8.0" LED capacitive touch screen with 1024x768P resolution

Connectivity: Wi-Fi (802.11 b/g/n), USB: 2.0, Mini USB 2.0, Wireless BT V2.1+EDR, Class1, HDMI 1.4a, SD Card (support up to 32 GB)

Camera (rear): Rear-facing, 8.0 Megapixel, AF with Flashlight

Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS)

Audio Input/Output Microphone, Single Speaker, 3-Band 3.5 mm stereo/standard headset jack

Power and Battery: 10,000 mAh 3.7 V lithium-polymer battery, Charging via 12 V AC/DC power supply

Input Voltage: 12 V (9-35 V)

Power Consumption: 5 W

Operating Temperature: -10 to 55°C (14 to 131°F)

Storage Temperature: -20 to 70°C (-4 to 158°F)

Housing: Rubberized outer protection and rugged internal housing

Autel Maxisys MS906TS Features:



Extraordinarily powerful Samsung Exynos Hexa-core processor

8.0” 1024x768 LED-backlit glossy Multi-Touch capacitive display with IPS technology for ultra-mobility

Internal reliable 32GB SSD for better performance

Built-in 8-megapixel rear camera with autofocus and flashlight

802.11b/g/n Wi-Fi to access your favorite web resources

Unique ergonomic design with rubberized outer protection and a rugged internal housing

Built-in rechargeable lithium-polymer battery for up to 14 hours of continuous operation

USB, audio and auxiliary ports make it easy to connect accessories

Open source Android Operating System for fast boot-up and multitasking

Easy and intuitive navigation makes finding what you need simple and fast

The most extensive complete system coverage for more than 80 US, Asian and European makes and models

Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding

Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, coding etc.

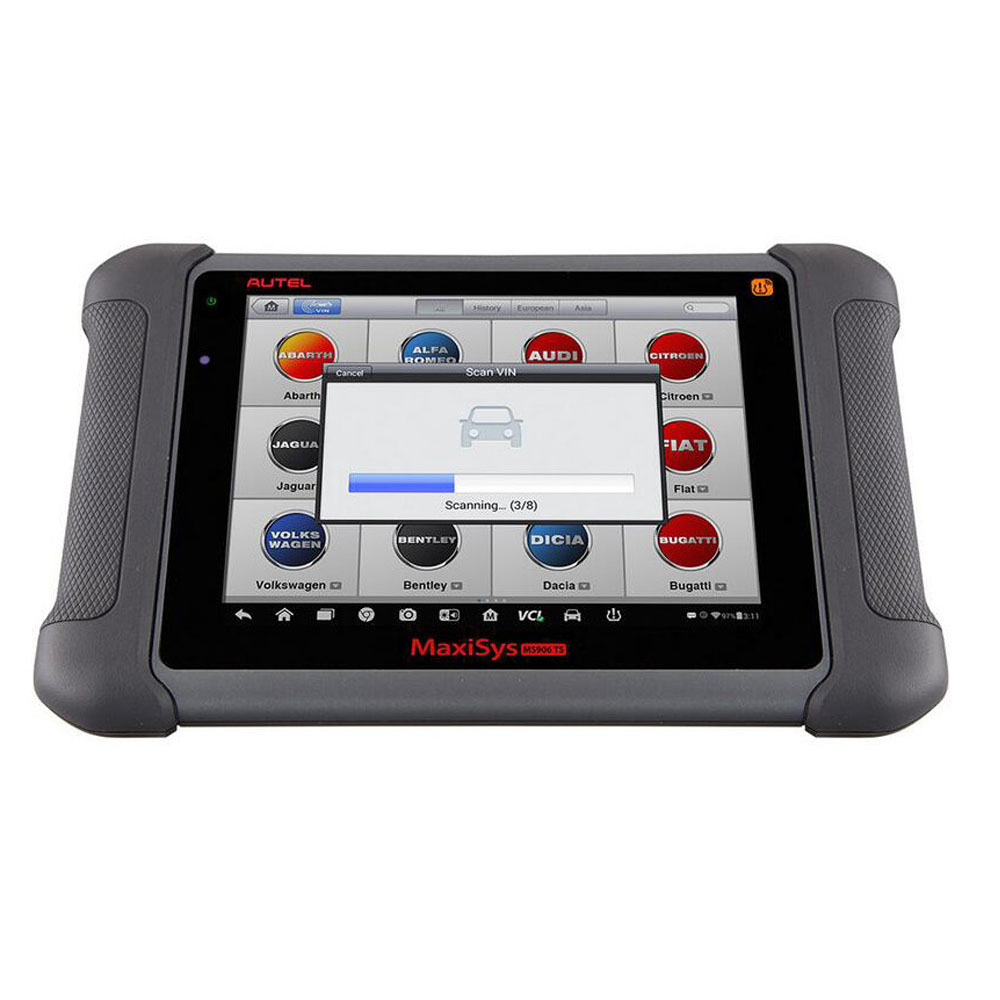

Smart AutoVIN technology for identifying vehicle easily

Uniquely integrated TPMS service application designed for triggering known OEM TPMS sensors, programming Autel MX-Sensor and performing TPMS sensor relearn procedure

Automatic system and software updates with real-time push message notifications via internet

Instant remote control tech support anytime, anywhere

Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes

Interactive Data Logging sessions enable direct contact with Autel Technical Support for first-hand troubleshooting of diagnostic bugs and errors

One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized

Enhanced wireless BT connectivity between the display tablet and VCI device allows greater mobility and ease at work

Convenient data management system for managing internal program applications and reviewing data

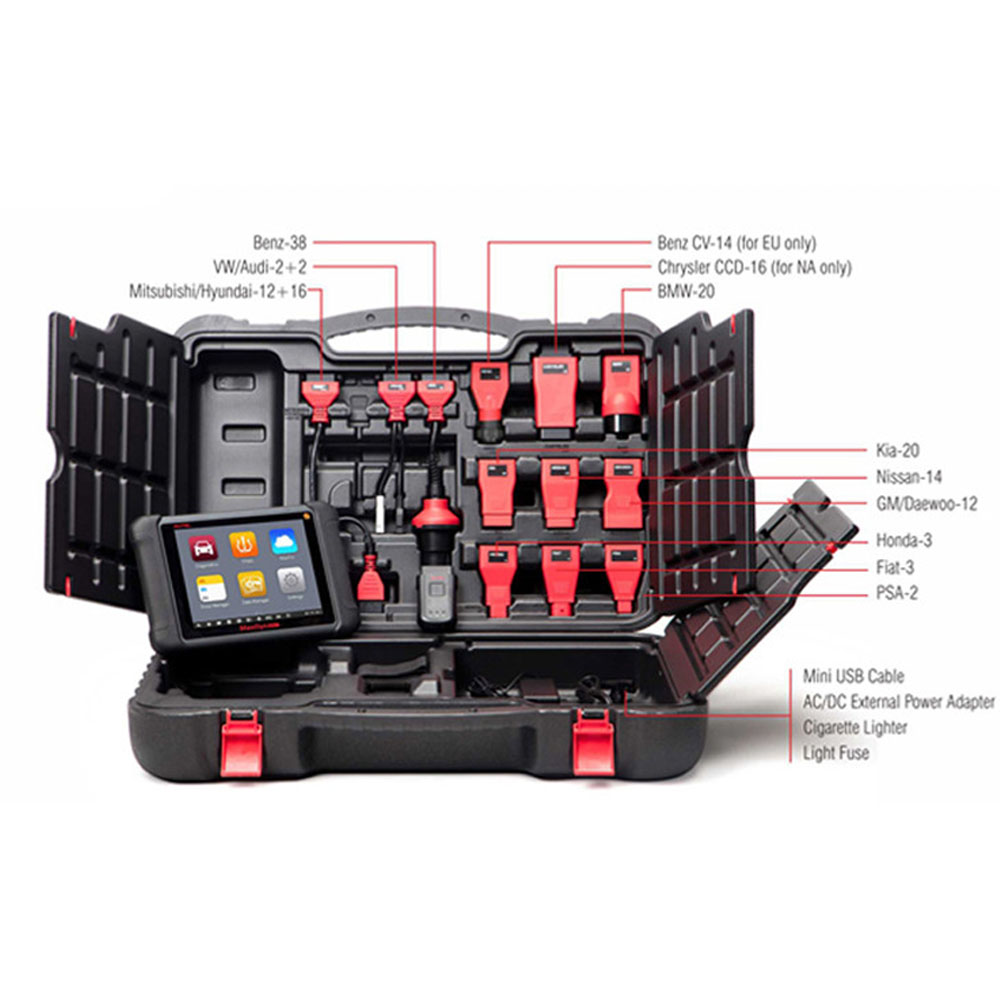

Packing List:

  • User Manual

    Carrying Case

    Adaptor for Chrysler-16 (for NA only)

    Light Fuse

    MaxiVCI V100

  • Quick reference guide

    Adaptor for GM/Daewoo-12

    Adaptor for PSA-2

    Adaptor for Fiat-3

    Adaptor for BMW-20

  • Adaptor for Benz-38

    Adaptor for Kia-20

    Adaptor for Mitsubishi/Hyundai-12+16

    Adaptor for Nissan-14

    Adaptor for Honda-3

  • Cigarette Lighter

    Compact Disc (CD)

    AC/DC External Power Adapter

    Adaptor for Benz-14 (for EU only)

  • Adaptor for VW/AUDI-2+2

    Soft Cloth

    Packing List

    Mini USB Cable
