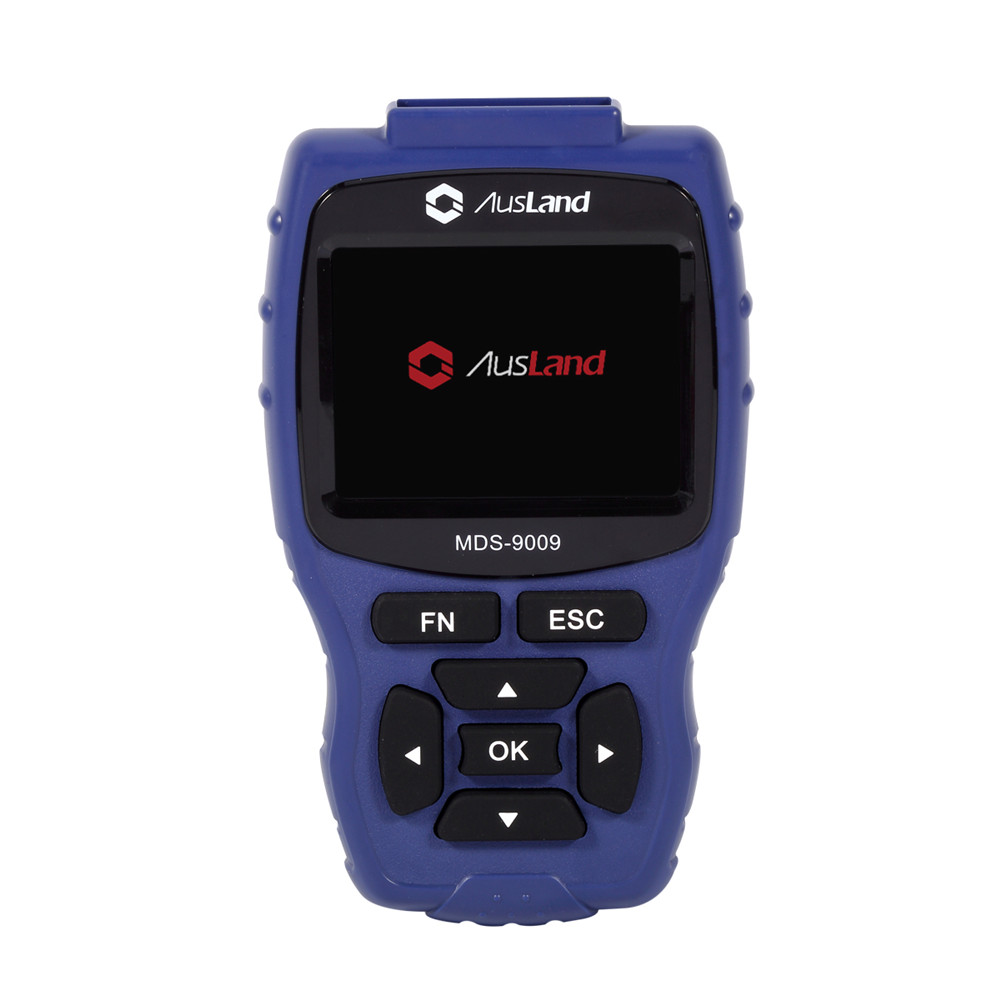

AUSLAND MDS-9009 Full System Basic Function Car Diagnostic Scan Tool
MDS-9009 Multi-diag specialist is full system diagnostic scanner with basic function such as read codes, clear codes and live data. Not only for small garages, independent repairs, enthusiasts, But also for technicians by delivering OE-level diagnosis on all the electronic systems.
Ausland MDS-9009 Auto Diagnostic Tool OBDII Features
1. Read fault codes
2. Clear fault codes
3. Retrieve data stream
4. EVAP test
5. Vehicle information
6. I/M Readiness
MDS-9009 Multi-Diag Specialist Features
1. Supports over 40 global car brands OBD2/EOBD vehicles. it can read/clear pending and stored codes, read freeze frame, view live data stream (in text/graphic format), O2 sensor test, emission test, I/M readiness test, etc.
2. It can Support Full Systems, Such as Engine System Diagnostic, ABS System Diagnostic, SRS/Airbag Reset, Transmission System Diagnostic, EPB(Electronic Parking Brake Service Perform), Steering Angle Sensor, Tire Pressure Monitoring, ACC System, Car Headlight, Air Condition System, Car Audio Multimedia, Instrument Cluster, OBD2 Codes Reader, Erase Error Codes, Sensor Live Data, Data Graphing Display.
3. The unique FN hot key allows customization of your own Favorites on the main menu for the next car test directly. This is very convenient for the Mechanic and the DIYer.
4. Multi-language is available (English, Spanish, French, Polish, Russian, Japanese, Italian, Korean, German, and Dutch and so on).
5. OBD2 scanner is well built with a large and high-definition TFT screen, easy-to-read UI, and thousands of DTC tips.
MDS-9009 Specification：
Display: 3.5’’ TFT LCD
Operating temperature: 0 ～ +50℃
Storage temperature: -20 ～ +70℃
Operating current: 150mA 12V(Typical)
Power consumption:1.8W(Typical)
Packing dimension: 176*102*33mm(L×W×H)
Weight: 270g

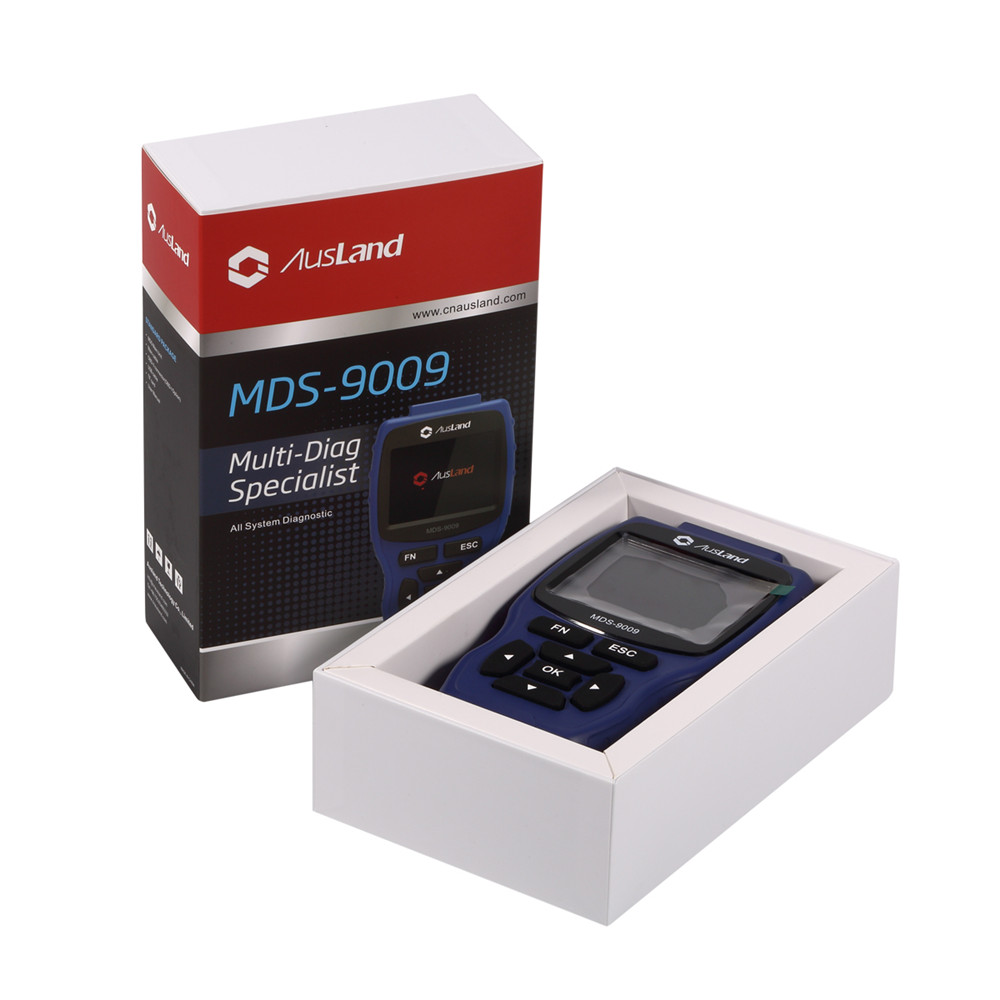

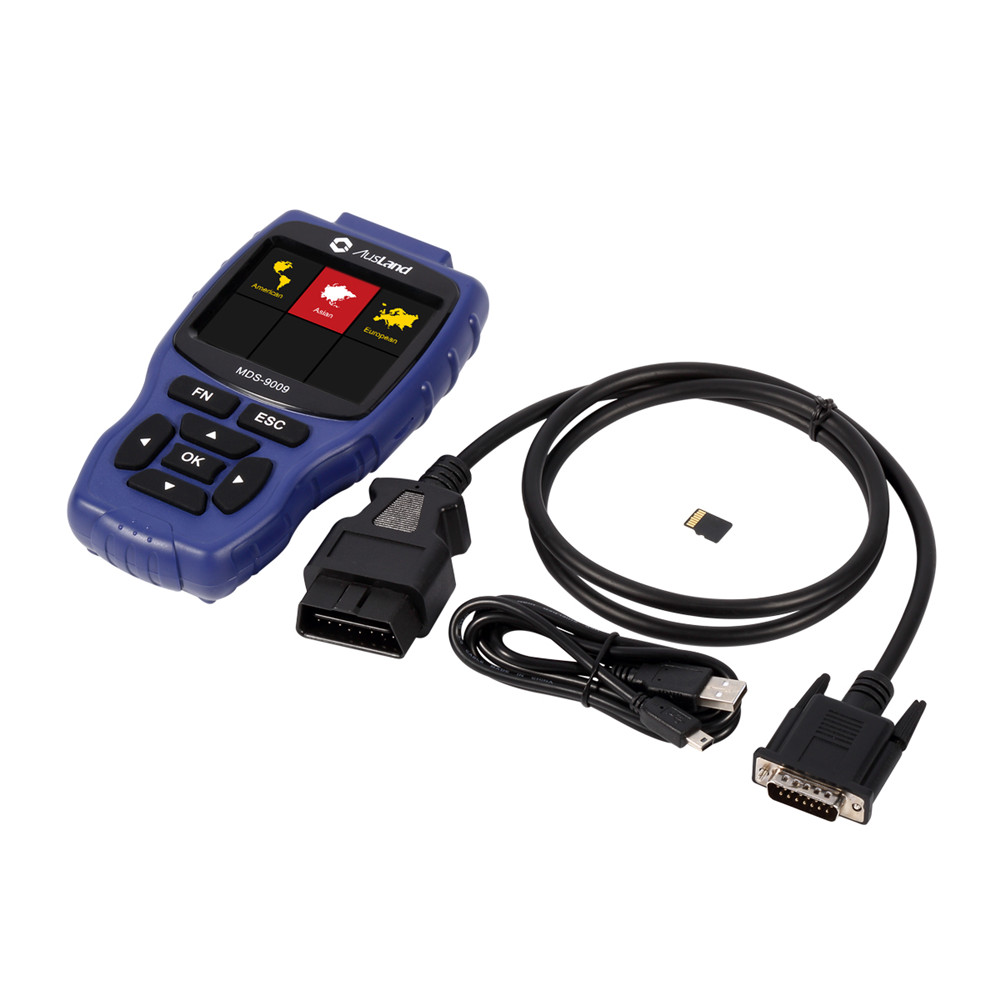

MDS-9009 Packing List:
Main unit 1pc
Main Cable 1pc
OBDII-16 Connector 1pc
USB Cable 1pc
User Manual 1pc
