XTOOL EZ500 HD Heavy Duty

Xtool EZ500 HD is a high-end and new style auto diagnostic device developed by XTOOL based on Android system. Its open source Android operating system provides fast boot-up and multitasking. EZ500 HD provides extensive vehicle coverage for most US, Asian and European makes, which makes it the best solution for workshops.

Item No.:DLHD005

Weight NW:8.2KG(18.08LB)

Package:45cm*41.5cm*8cm(Inch: 17.72*16.34*3.15)

Related Download Files:

.pdf

GET GUOTES

XTOOL EZ500 Features:

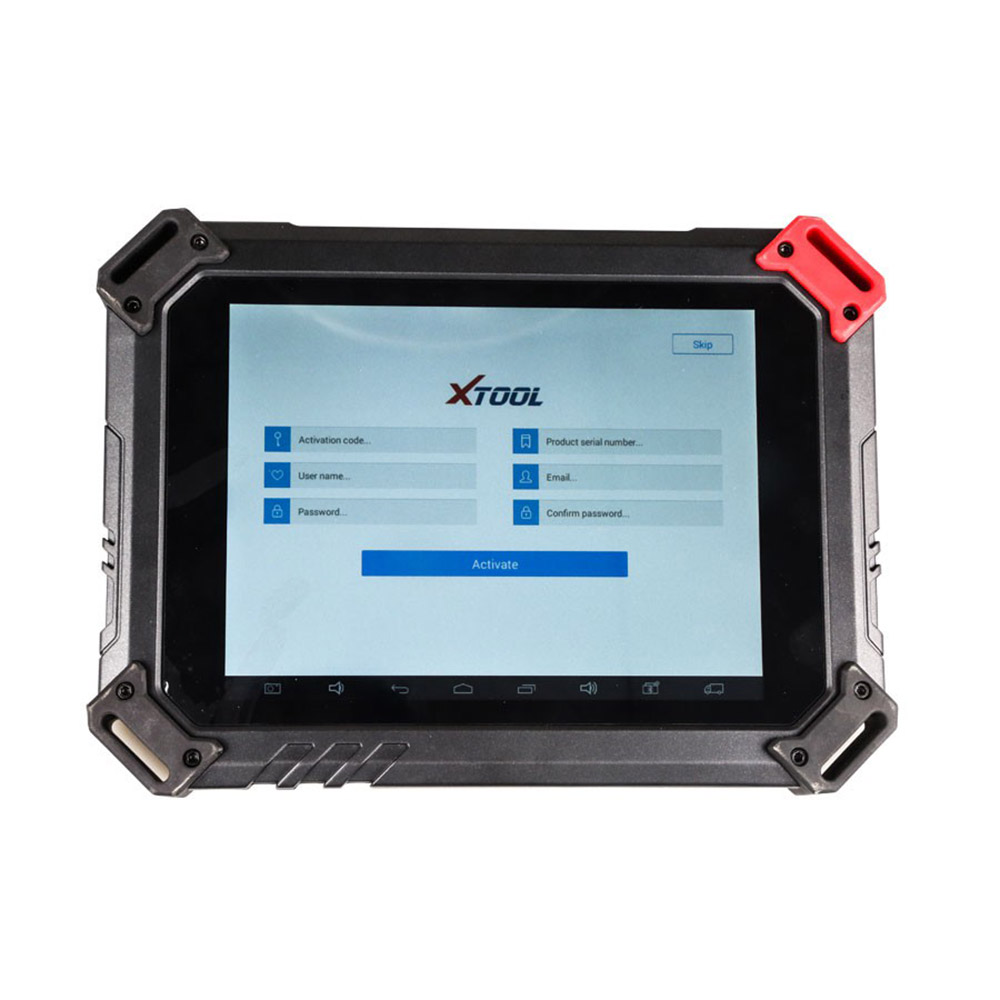

Easy registration with EZ500 HD connected to WIFI

One-click software update via WIFI

Remote access

Diagnosis reports in PDF file

Record and playback live data

8.0 inch multi-touch screen

On-board battery

Extensive vehicle coverage for most US, Asian and European vehicle makes

Language supported: English only

Specifications:

Operating System: Android 4.4.4

Memory: 1GB RAM,16GB Flash

CPU: Quad Core, 1.6GHz

Display: 8.0 Inch IPS 10-Point Multi-touch Screen with 1024×600P Resolution

Sensors: Gravity Sensor, Light Sensor

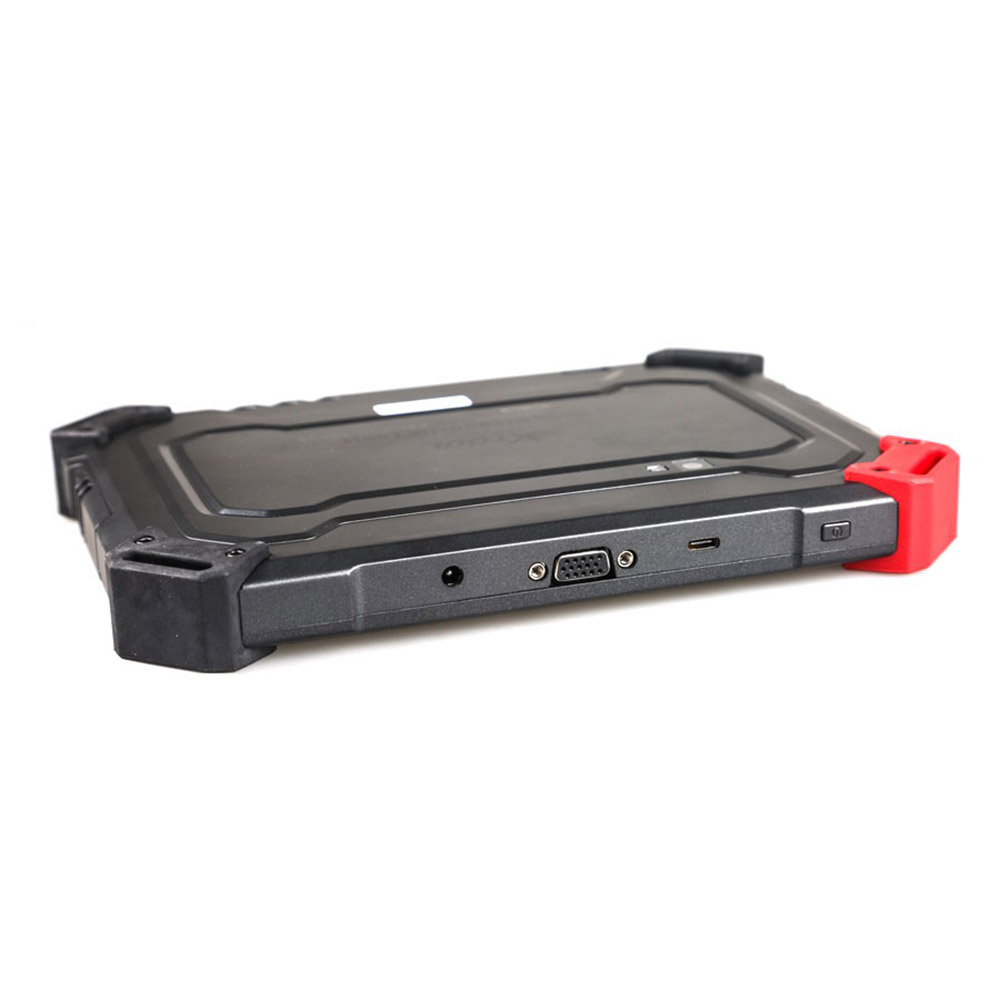

Input/Output:Microphone, Dual Speakers, 3.5 mm headset jack, Mini HDMI Port, DC5.5, TF Card Port

Battery: 4000mAh, 7.4V

Wi-Fi: WIFI 2.4Ghz

Power Voltage: 12V

Power Consumption: 29.6W

Operating Temperature: -20 to 50℃(-4 to 126℉)

Humidity: <90%

Dimension: (L*W*H): 240*177*30mm

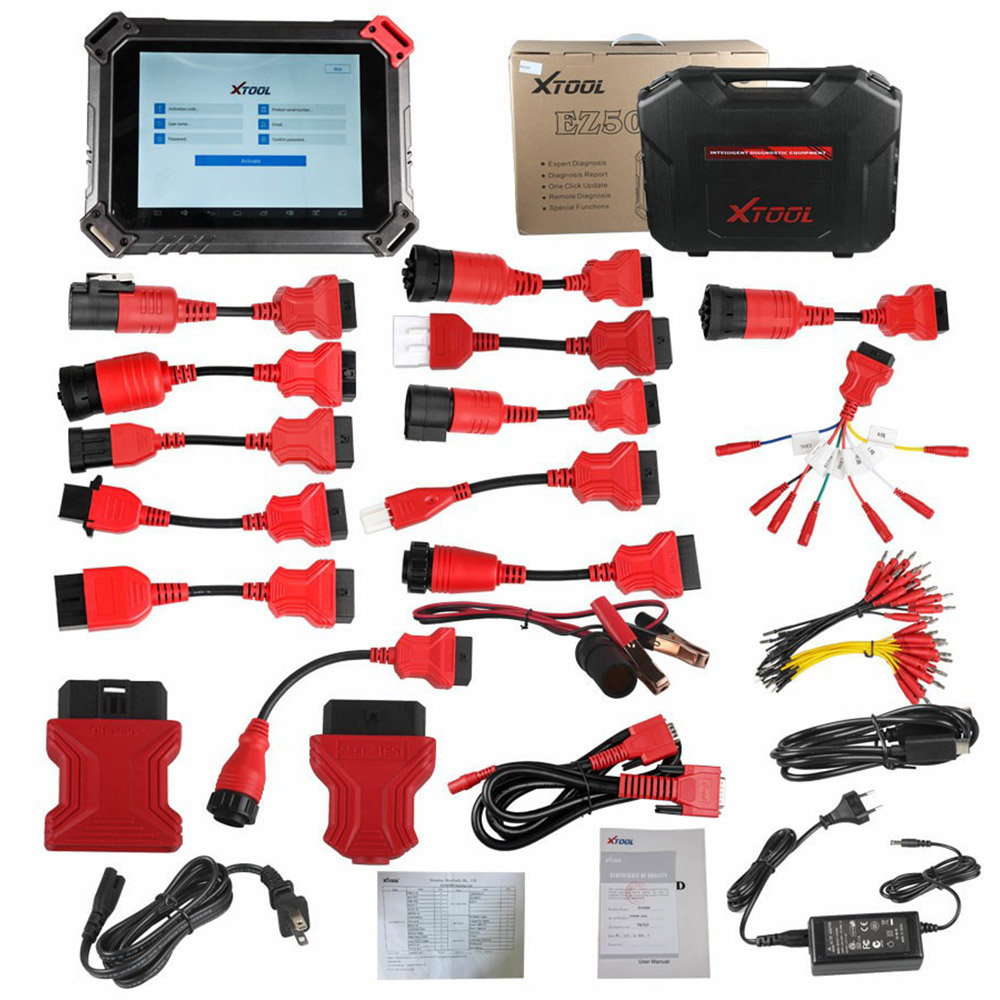

Package including:

1pc x EZ500 HD Tablet

1pc x Charger for Tablet

1pc x Charger Cable US

1pc x Charger Cable EU

1pc x OBD II-16

1pc x SELFTEST

1pc x OBD-R16
1pc x ISUZU-3

1pc x ISUZU-20

1pc x DENSO-12

1pc x IVECO-30

1pc x IVECO-30-1

1pc x CUMMINS-9

1pc x YUCHAI-4
1pc x CAT-9

1pc x CUMMINS-6

1pc x VOLVO-8

1pc x BENZ-14

1pc x Universal Cable

1pc x Battery Cable

1pc x Cigar Lighter Cable
1pc x DB15 Main Cable

1pc x USB TYPE-C Cable

1pc x Tool Case

1pc x Carton

1pc x Certificate of Quality

1pc x Packing List

1pc x User Manual
