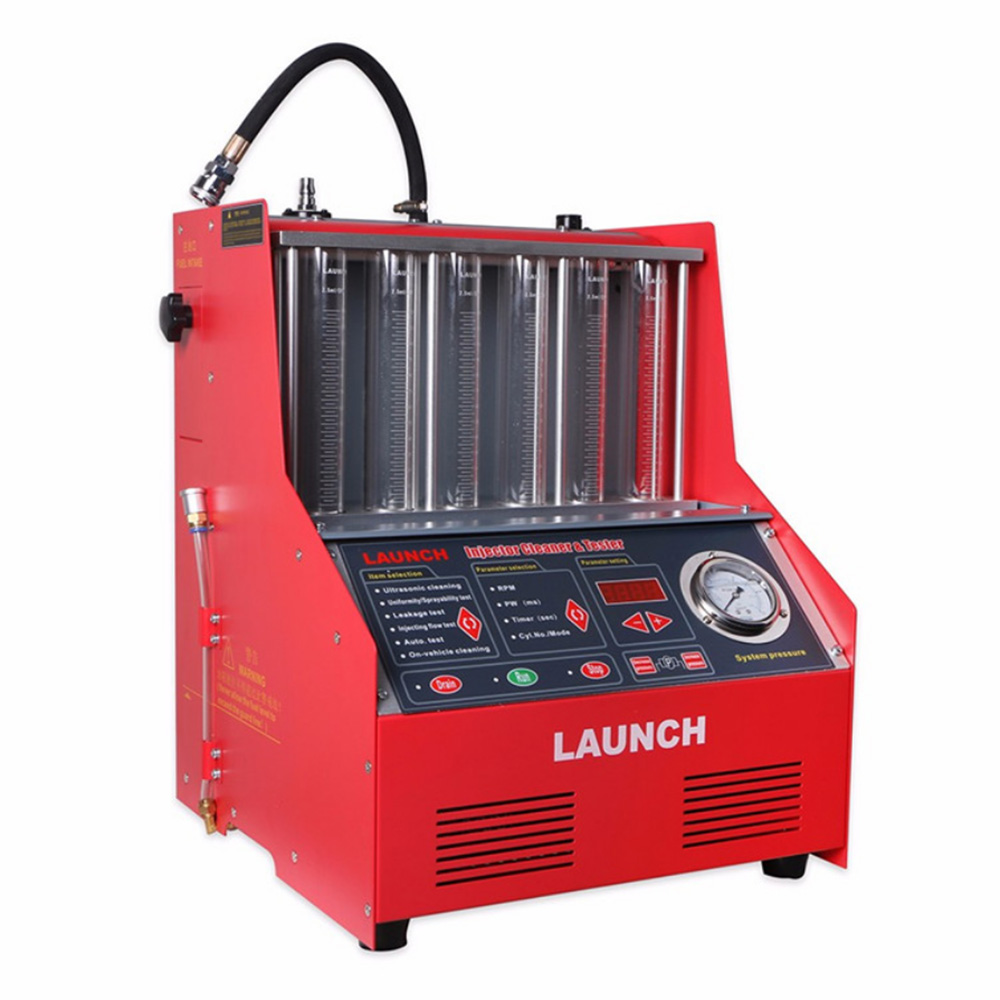

100% Original Launch CNC602A Auto Fuel Injector Cleaner & Tester
CNC-602A is an advanced electromechanical product, which can clean and test Auto engine injectors by simulating engine working conditions. It can also perform cleaning on the injectors and fuel supply system on vehicle
Specifications:
Power supply: AC220V±10%,50/60Hz;AC110V±10%, 50/60Hz.
Input Power: 250W
Ultrasonic cleaner power: 100W
Simulated RPM range: 10-9990rpm; step: 10rpm
Time range: 1-9999s
Pulse width: 0.5-25ms; step 0.1 ms
Fuel tank capacity: 4700ml
Features:
Ultrasonic cleaning: To perform simultaneous cleaning on several injectors, to remove the carbon deposits on the injector completely.
Uniformity/Sprayability test: To test the uniformity of injecting amount of each injector, and to monitor the spraying status of each injector with the lighting of backlight. This test is also for reverse flush.
Leakage test: To test the sealing and dribbling conditions of injectors under system pressure.
Injecting flow test: To check the injecting amount of the injector in 15 seconds of constant injection.
Auto. test: To test injectors by simulating different working conditions.
n-vehicle cleaning: The unit is equipped with various adaptors and couplers that facilitate cleaning on the injectors on vehicle./p>
Packing List:
CNC pulse signal connection cable 1,T=0.5
CNC pulse signal connection cable 2,T=0.8

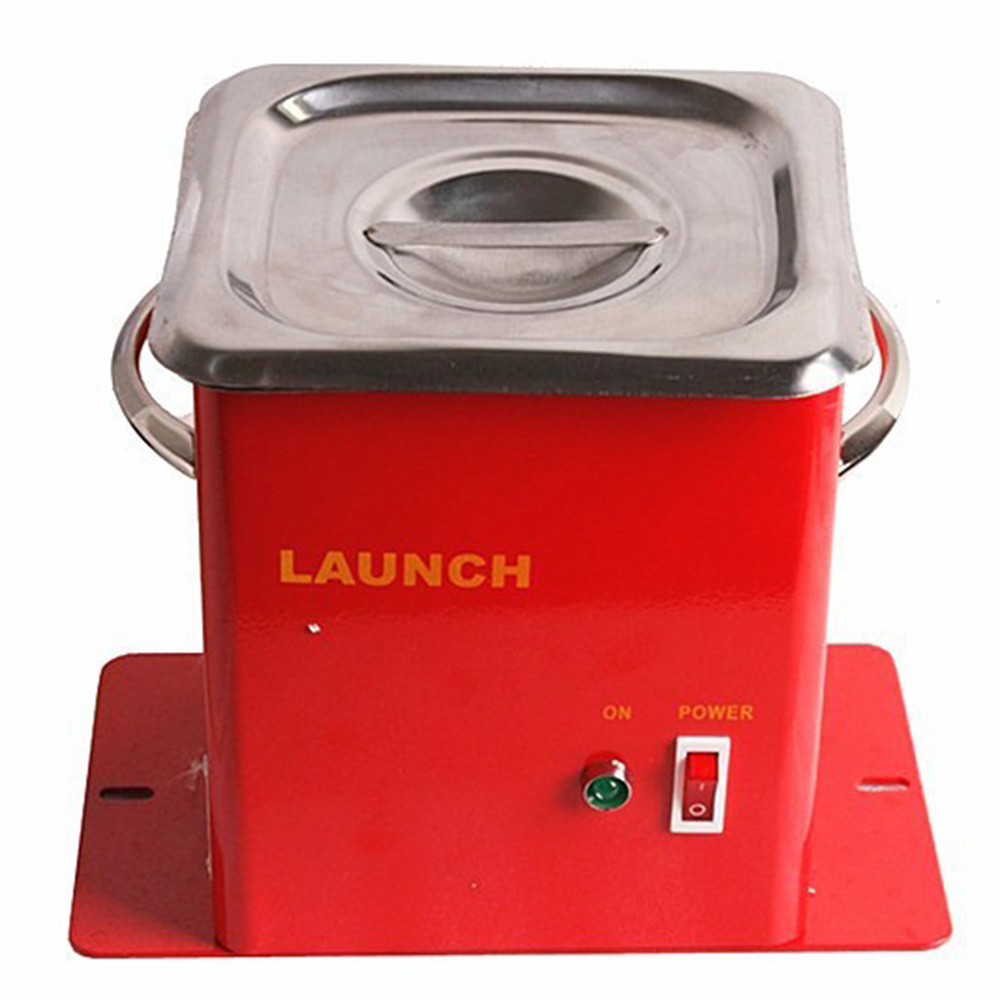

Ultrasonic cleaner assembly 100W
On-vehicle adaptor package(tool kits)
CNC-602A user manual(En&Ch)
Top-supply connector 1
Swiss thread adaptor for fuel top-supply injector
Coarse thread adaptor for fuel top-supply injector
CNC-601/801 Hexangular stopper
CNC-801 BUICK injector adaptor
Injector testing liquid
Injecter detergent
