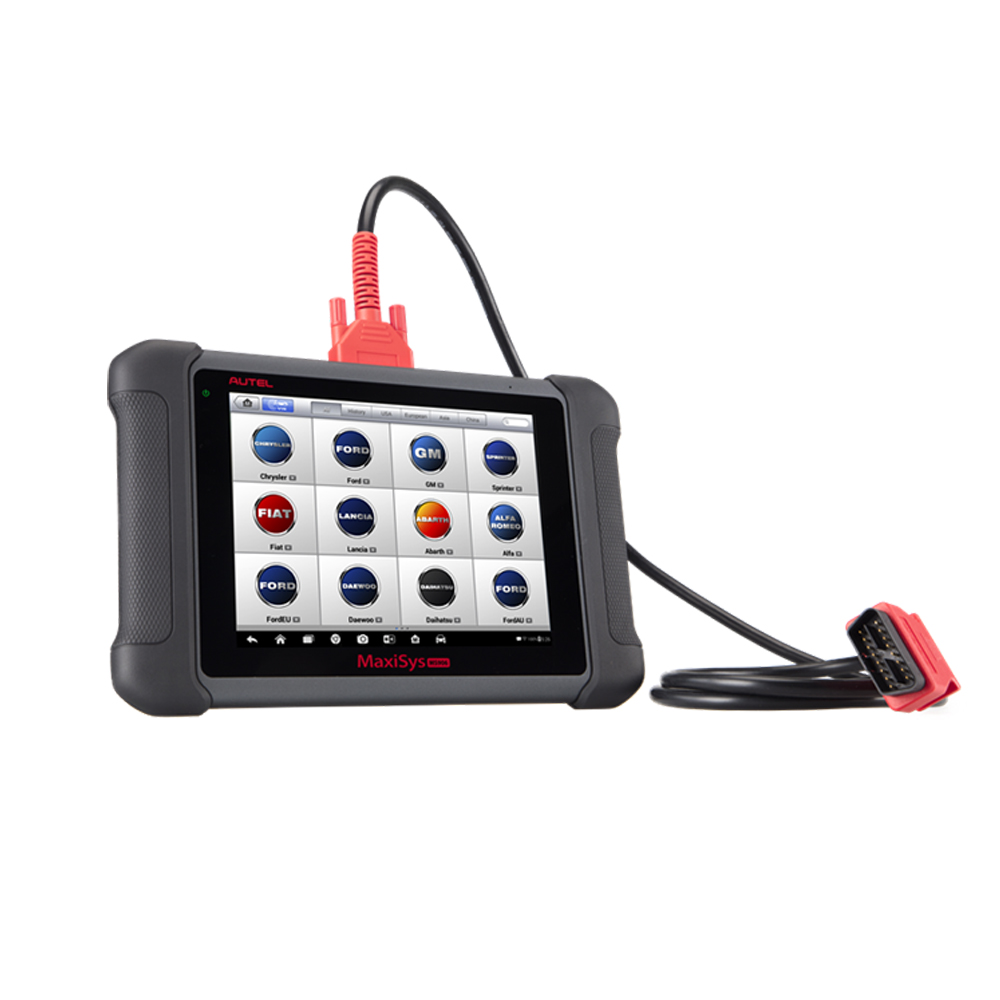

Autel MaxiSys MS906

Maxisys MS906 Specifications:

Operating System: AndroidTM 4.0, Ice Cream Sandwich

Processor: Samsung Exynos Quad-Core Processor 1.4GHz

Memory: 2GB RAM & 32GB On-board Memory

Display: 9.7 inch LED capacitive touch screen with 1024x768P resolution

Connectivity Ethernet: RJ45 Ethernet Connection,Cellular: 3G/4G module: WCDMA

Camera (rear) Rear-facing: 5.0 Mexgapixel, AF with Flashlight

Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS)

Audio Input/Output Microphone: Dual Speakers, 4-Band 3.5 mm stereotype/standard headset jack

Power and Battery: 11000 mAh 3.7 V lithium-polymer battery, Charging via 12 V vehicle power

Input Voltage: 12 V (9-24 V)

Power Consumption: 6.5 W

Operating Temperature: -10 to 55 ℃ (14 to 131 ℉)

Storage Temperature: -20 to 70 ℃ (-4 to 158 ℉)

Housing Strong plastic housing with protective rubber boot

Dimensions (W x H x D): 300 mm (11.81”) x 220 mm (8.66”) x 50 mm (1.97”)

Weight NW: 1.42 kg (3.13 lb), MaxiSys GW: 8.655 kg (19.08 lb) / MaxiSys Pro GW: 8.052 kg (17.75 lb)

Software

Open source Android Operating System for fast boot-up and multitasking

Easy and intuitive navigation makes finding what you need simple and fast

Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes

Complete capabilities for codes, live data, actuation tests, adaptations and ECU coding

Displays live data in text, graph, analog and digital gauge for easy data review and analysis

Configures display options, sets triggers, records and playbacks results with one touch

Records and playbacks live data to pinpoint troubles of sensors and components

Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes

Remote technical support for convenient demonstration, training and increased customer satisfaction

Prints out recorded data anytime and anywhere with Wi-Fi technology

Automatic Wi-Fi updates available in new software releases

Hardware:

Extraordinarily powerful Cortex-A9 quad-core processor

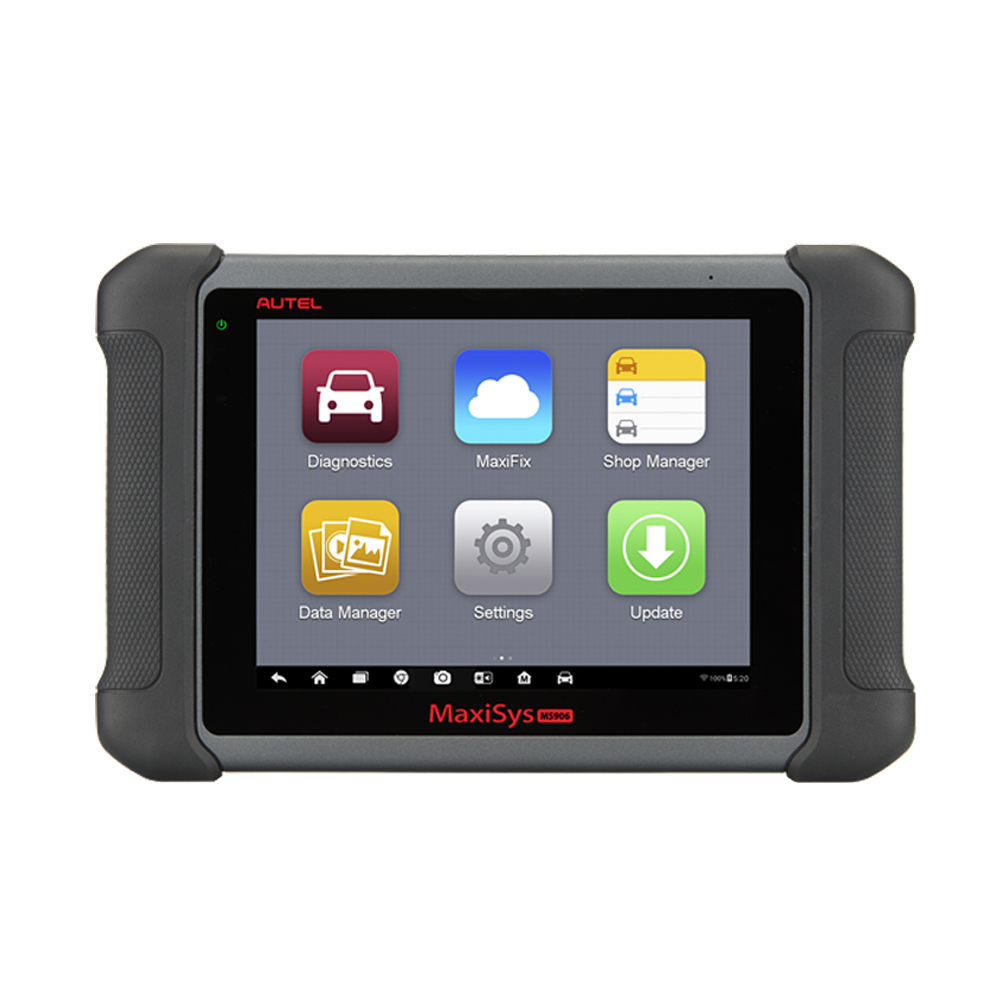

9.7” 1,024x768 LED-backlit glossy Multi Touch capacitive display with IPS technology

Internal reliable and fast 32GB Solid State Drive for better performance

Built-in 5-megapixel rear camera with autofocus and flashlight

Dual-band (2.4 GHz & 5.0 GHz) 802.11n Wi-Fi to access your favorite web resources

Unique shop tough ergonomic design features strong rubber protection and housing;

Built-in rechargeable lithium-ion battery for up to 8 hours of continuous operation

USB, audio and auxiliary ports make it easy to connect accessories

The VCI connects to the main unit wirelessly with up to 230 meters working range
