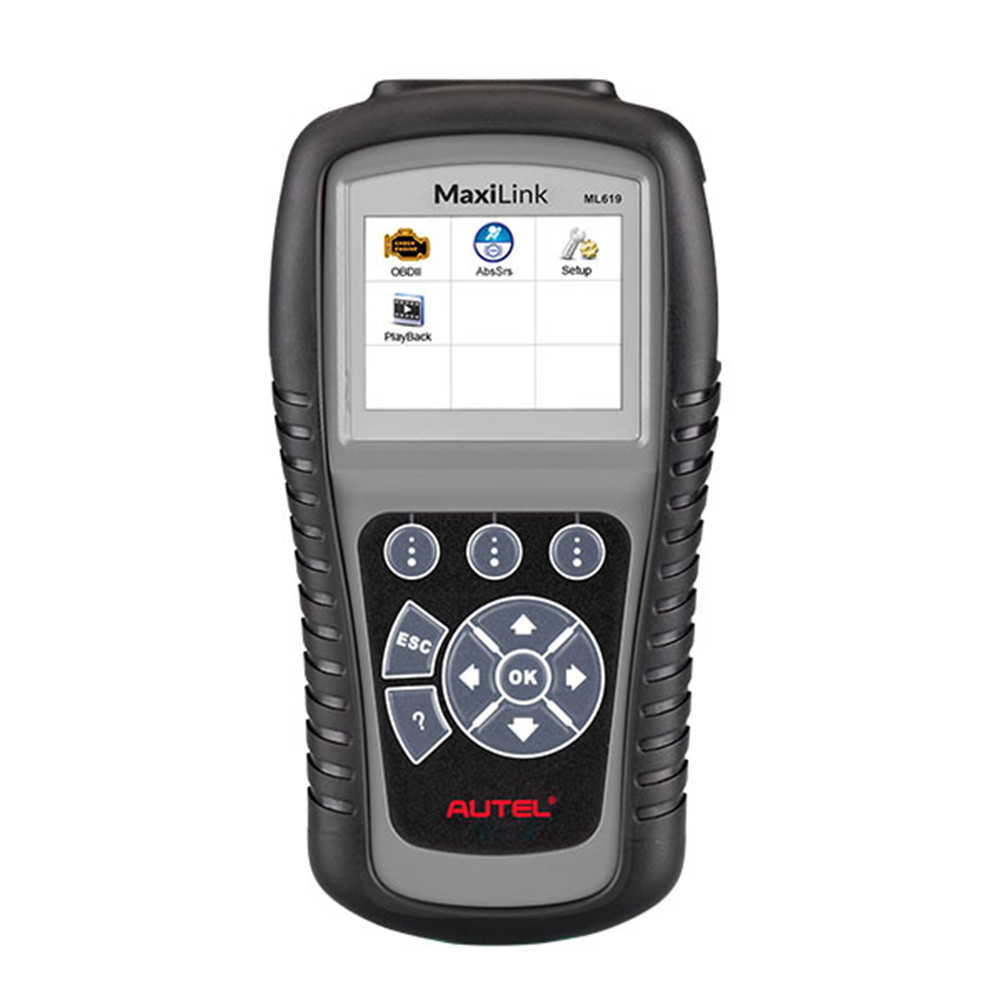

Autel MaxiLink ML619 is the Update Version AutoLink AL619

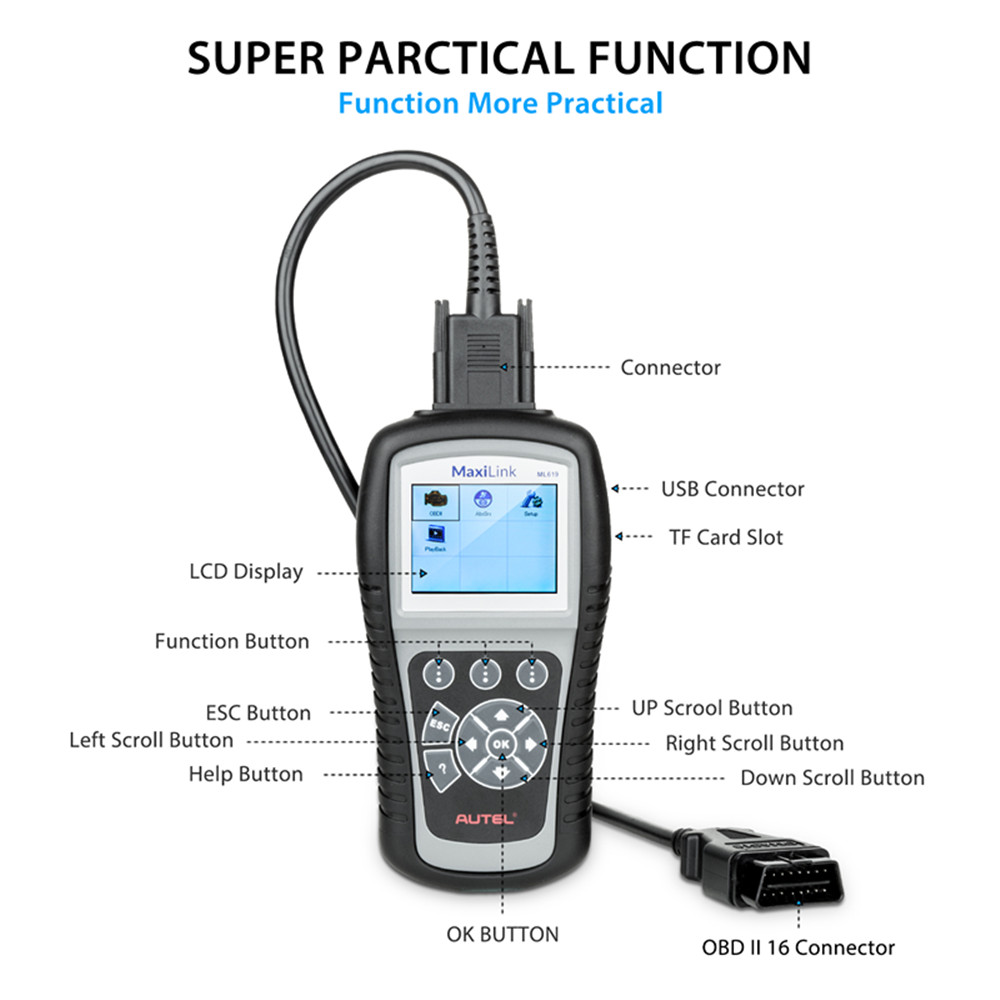

1) OBD II CONNECTOR – connects the scan tool to the vehicle’s Data Link Connector (DLC).
2) LCD DISPLAY – indicates test results.
3) FUNCTION BUTTONS – corresponds with “buttons” on screen for executing commands.
4) ESC BUTTON – cancels a selection (or an action) from a menu or returns to the previous screen.
5) LEFT SCROLL BUTTON – when looking up DTC definitions, press to review previous character and to display additional information on previous screens if present; press to view previous screen or previous frames of recorded data. It is also used to view previous trouble code when viewing DTCs.
6) HELP BUTTON – displays help information and accesses DTC Guide function.
7) DOWN SCROLL BUTTON – press to move down menu and submenu items in menu mode. When more than one screen of data is retrieved, press to move down to information on next screen. When looking up DTC, it is used to change value of selected character.
8) RIGHT SCROLL BUTTON – when viewing DTC definitions, press to move to next character and to view additional information; press to view next screen or next frames of recorded data. It is also used to view next trouble code when viewing DTCs.
9) OK BUTTON – confirms a selection (or action) from a menu.
10) UP SCROLL BUTTON – press to move up menu and submenu items in menu mode. When more than one screen of data is retrieved, press to scroll to the previous screens. When looking up DTC, it is used to change value of selected character.
11) USB CONNECTOR – connects the scan tool to the Windows PC for printing.
12) TF CARD SLOT – holds the TF card.
MaxiLink ML619 Specifications:
Display: TFT color display (320 x 240 dpi)
Operating Temperature: 0 to 60°C (32 to 140 F°)
Storage Temperature: -20 to 70°C (-4 to 158 F°)
Power: 8.0 to 18.0 V power provided via vehicle battery
Length\Width\Height: 199 mm (7.83”)\104.5 mm (4.11”)\37.5 mm (1.48”)
Weight: 0.28kg (0.75lb, without wire) or 0.484kg (1.3lb, with wire)
