Jdiag P200 Smart Hook Power Probe Circuit Tester Free Update Online For Electronic Systems

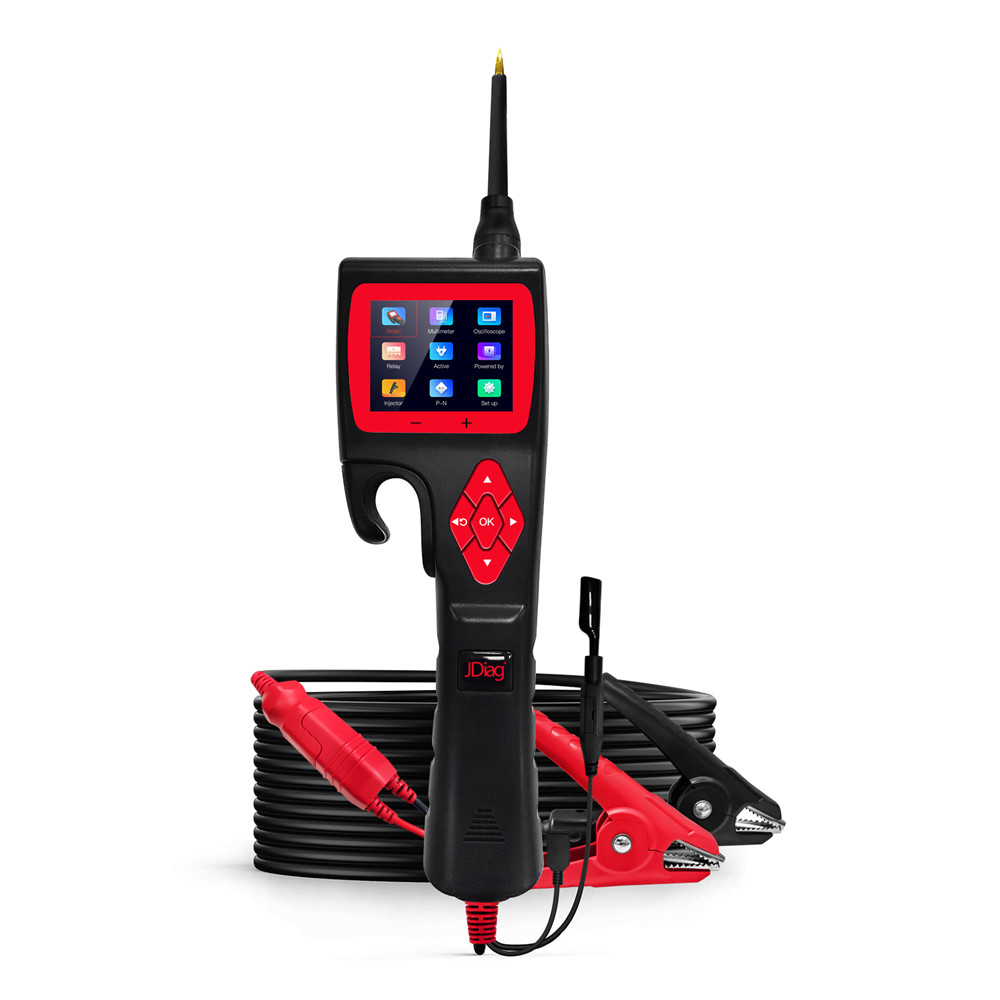

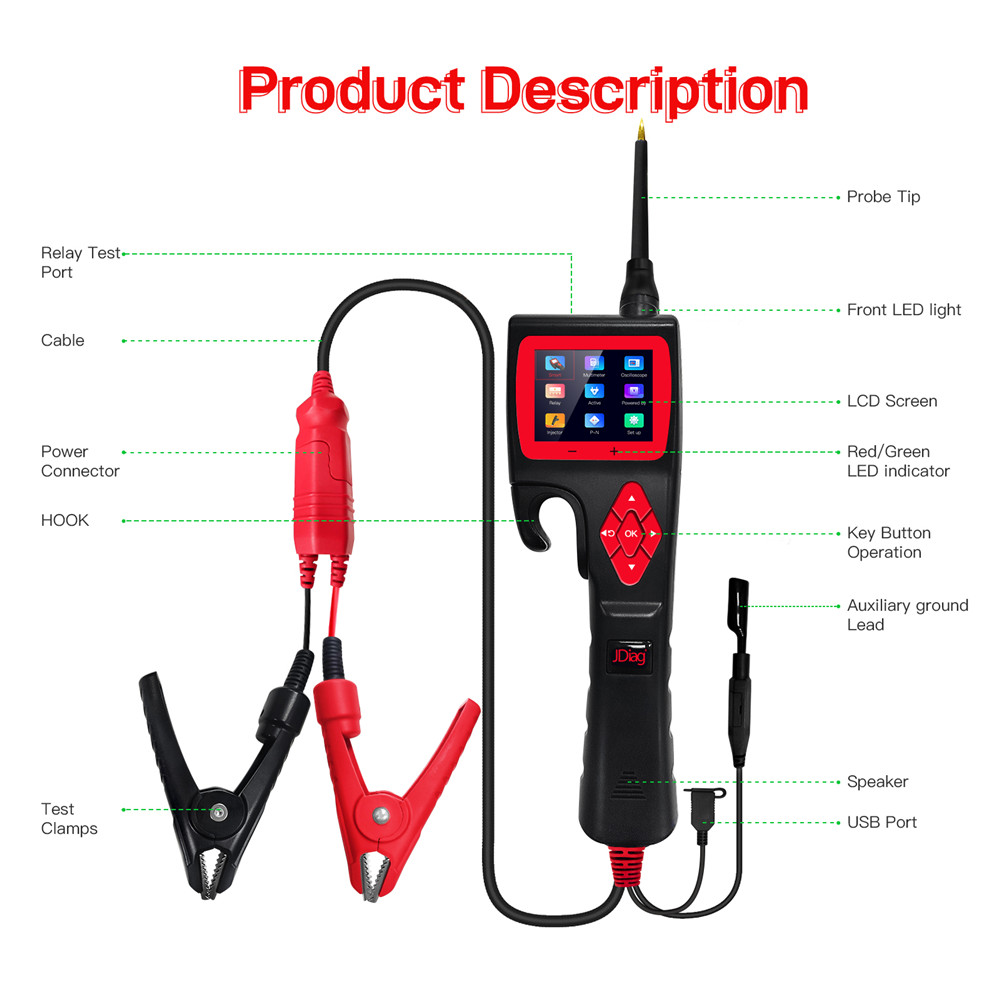

Jdiag P200 Smart Hook Description:

JDIAG P200 SMART HOOK Powerful Probe, the new generation of intelligent circuit analyzer, is the only circuit tester that can be upgraded in the market. It can test all 9V-30V electronic systems quickly. The test time can be greatly shortened, making it more convenient, faster and smarter!

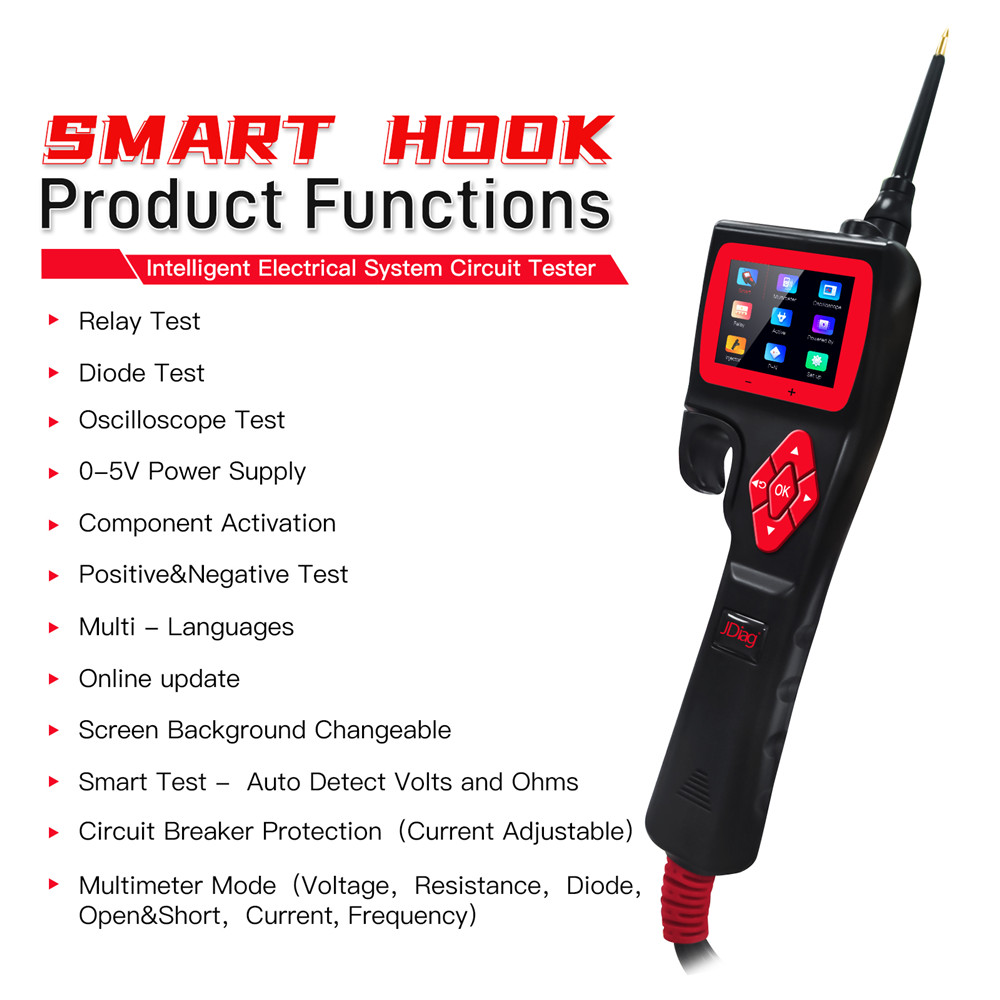

Jdiag P200 Features:

1.Intelligent identification of voltage/resistance

2.Multimeter mode (measure voltage, resistance, diode, continuity, current and frequency)

3.Relay test

4.Injector test

5.Diode test

6.Oscilloscope function

7.0-5V adjustable power supply

8. Activation of vehicle components

9.Positive and negative polarity test

10.Intelligent circuit breaker protection (adjustable overload)

11.Screen style background optional

12.Network online upgrade

13.Built-in Multi Lingual

Product Specifications And Parameters:

Display: (320*240 DPI)TFT true color display

Working temperature: 0-60°C (32-140 F°)

Storage temperature: 40-70°C (-40-185 F°)

External power supply: 12V or 24V powered by battery

Minimum working voltage: 9V

Maximum working voltage: 30V

Maximum measuring voltage: 150V

Minimum measuring voltage: 0.1V

Resistance measurement range: 1 ohm~200K ohm

Current measuring range: 0~18A

Maximum continuous current: 18A

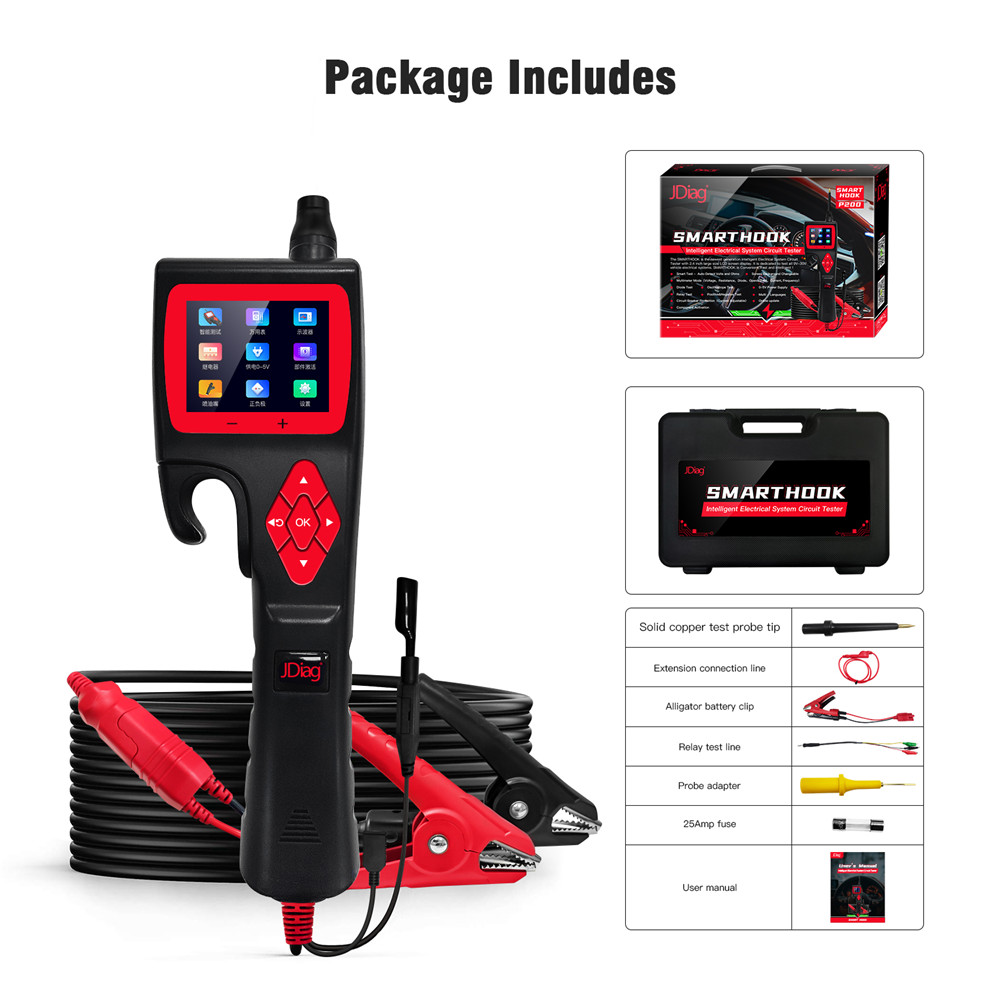

Packing List for Jdiag P200:

1) Main unit

2) Solid copper test probe

3) Double pass test connection line

4) Alligator clip battery cable (Special Design)

5) Relay test line

6) Probe adapter

7) 25Amp fuse

8) Operation manual

9) Packing Toolbox
