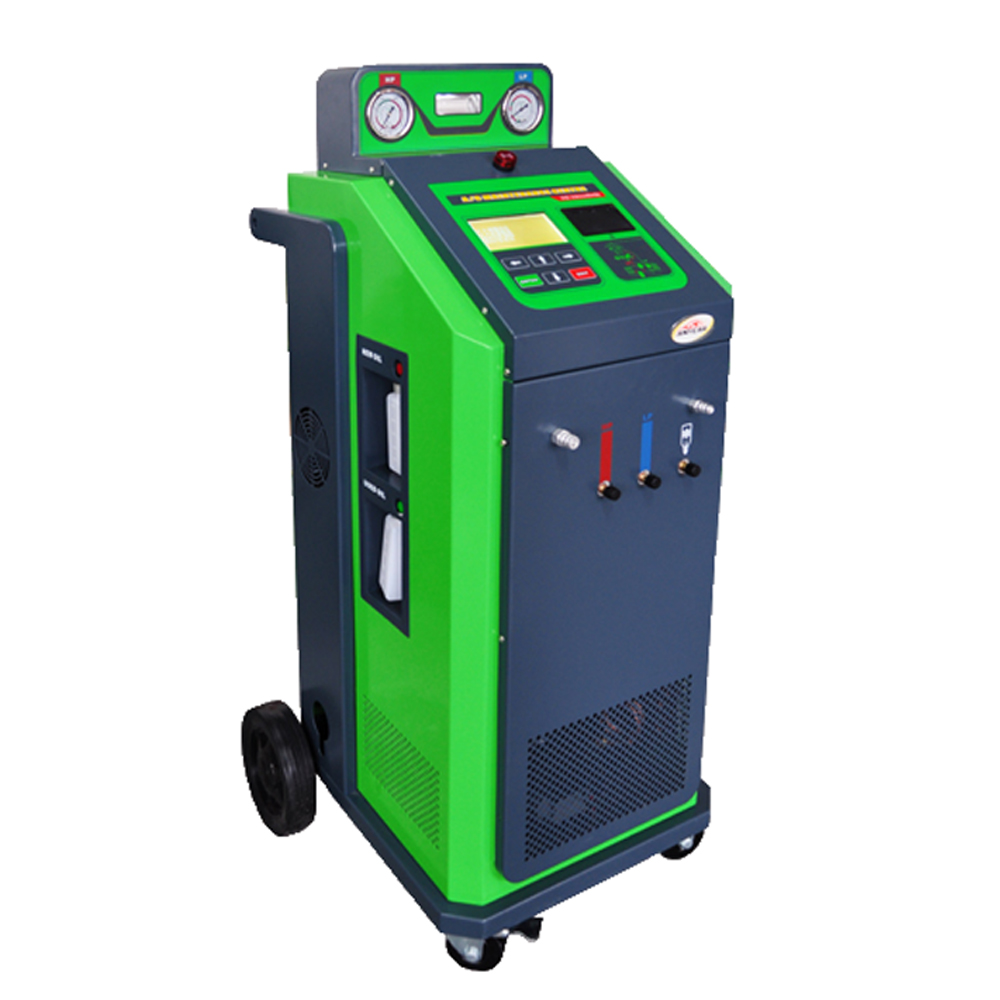

A/C System Maintenance Centre AMC-200 (220V)

AMC-200 A/C System Maintenance Centre



AMC series A/C system maintenance equipment is with the latest design technique which uses the best control principle and the manufacturing process.
AMC-200 A/C System Maintenance Centre is intelligent equipment collecting of the A/C flushing, recovery, recycling, recharging and other functions in one. It’s with the beautiful shape, humanized operation interface, and advanced manufacturing processes to make the A/C maintenance professional and simple.

Item No.:ADMC008-220

Weight: 120kg(264.55LB)

Package:68cm*58cm*132cm(Inch:26.77*22.83*51.97)

 Related Download Files:







 .pdf

 .pdf

 .pdf

CE-FC-ROHS
GET GUOTES

GET GUOTES

  X
Submit

AMC-200 A/C System Maintenance Centre



1. Features:

A.Internal pipeline of A/C system flushing, effectively cleared the internal greasy and fouling, to restore the A/C system performance.

B.With forward flushing, reverse flushing, and pulse flushing functions, which greatly improve the cleaning effect.

C.Using large-size glass tube with LED backlighting, can effectively observe the entire cleaning process.

D.Vertically installing the HP & LP gauges let the operator be able to observe the pressure parameters timely even in the car.

E.Unique design of the pipeline to achieve the high recycling rate no matter with the gas or the liquid.

F.Easy to operate with the concise operating interface.

2.Specifications:



A.Voltage input: AC220V±10%~50/60Hz

B.Compressor:12.12cm3

C.Vacuum pump: 7.2m3/h,10Pa

D.Load cell: ±10g

E.Tank: 12L

F.Oil bottle: 260ml,double

G.Working pressure: max. 17.5bar

H.HP gauge: -1bar~3.5MPa

I.LP gauge: -1bar~1.5MPa

J.Backlighting:LED

3.Functions:



1) Primary functions

A.flushing

B.Recovery/Recycling

C.Used oil discharging

D.vacuum

E.New oil filling

F、Recharging

2) Subsidiary functions

A.Refrigerant supplying

B.Load cell calibration

C.Parts checking

D.Maintenance procedure for dry filter

E.Alarms

F.Parameters setting

G.Parameters inquiring
