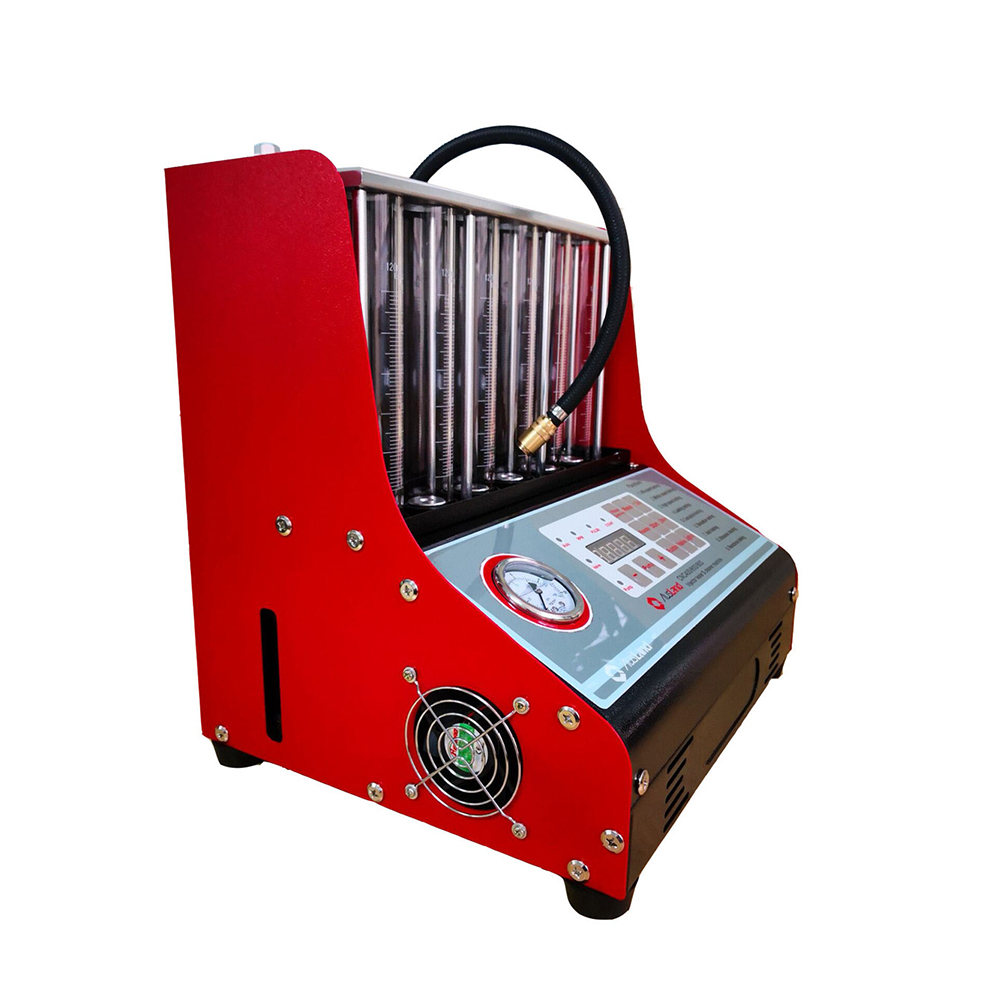

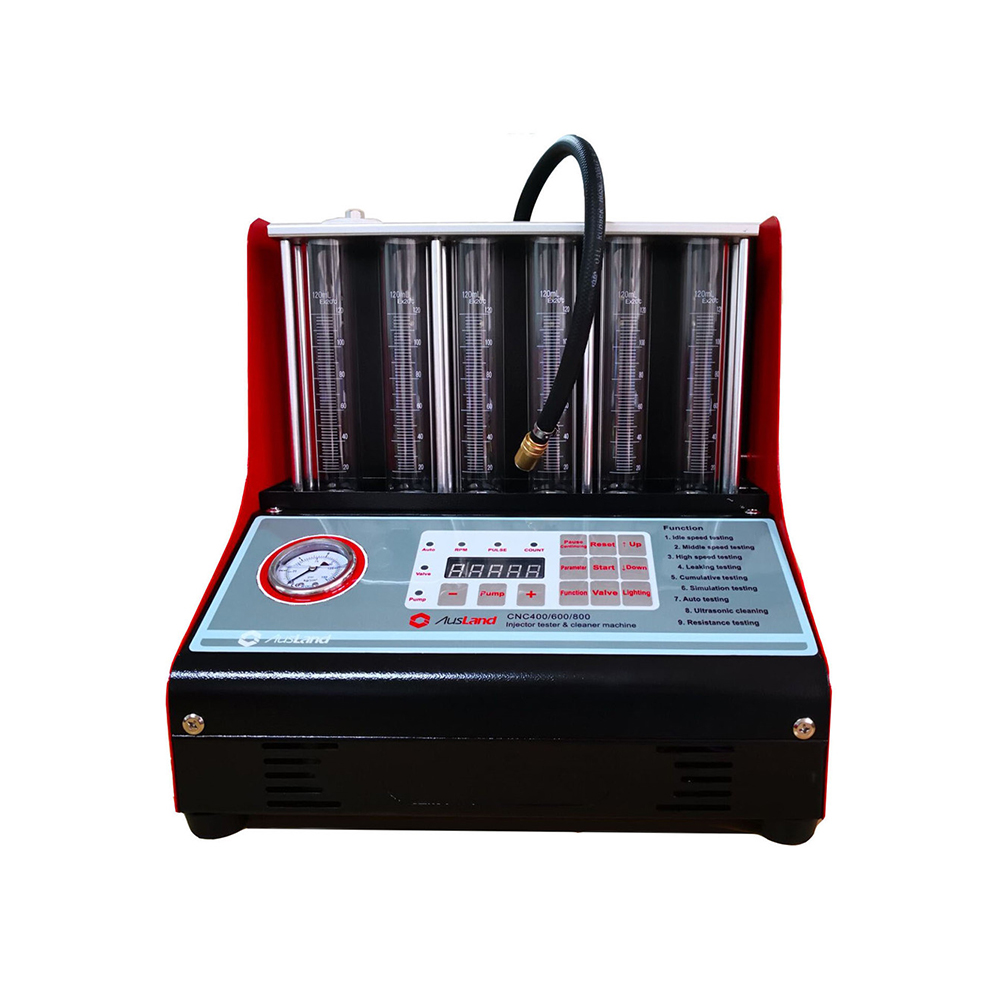

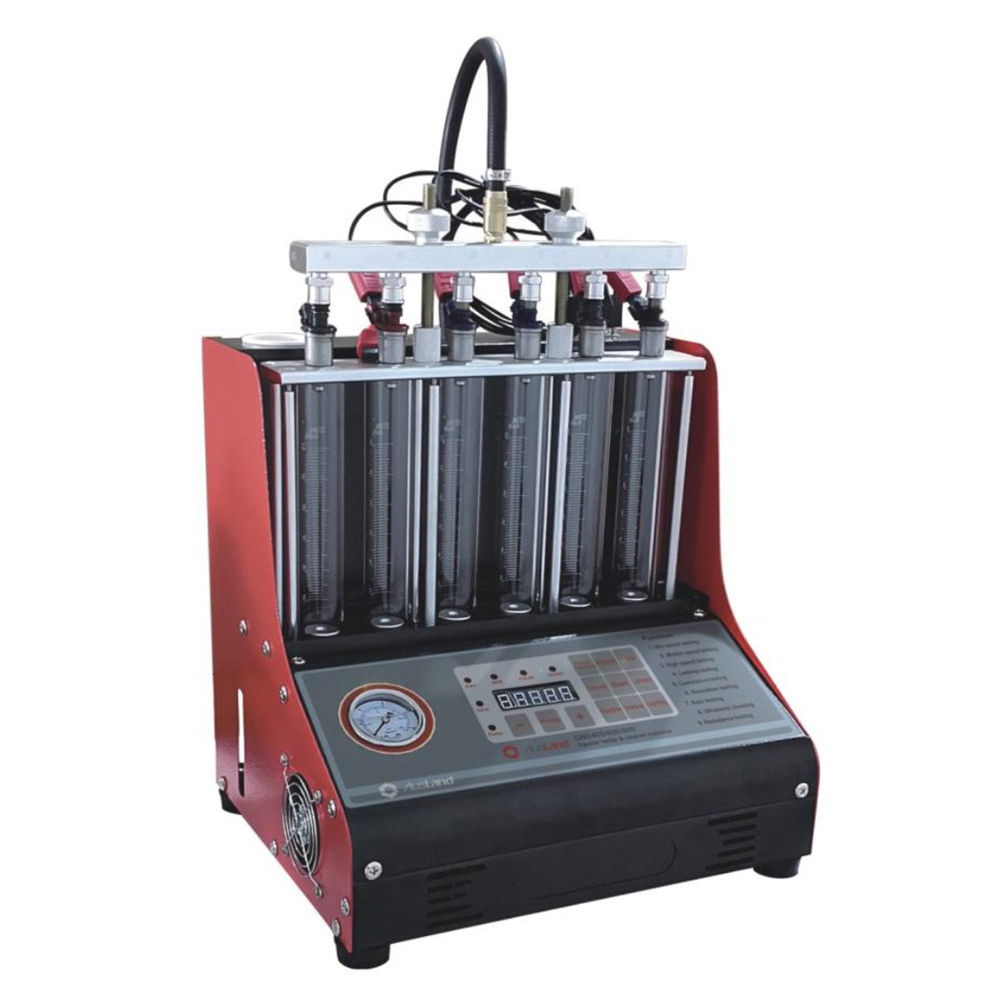

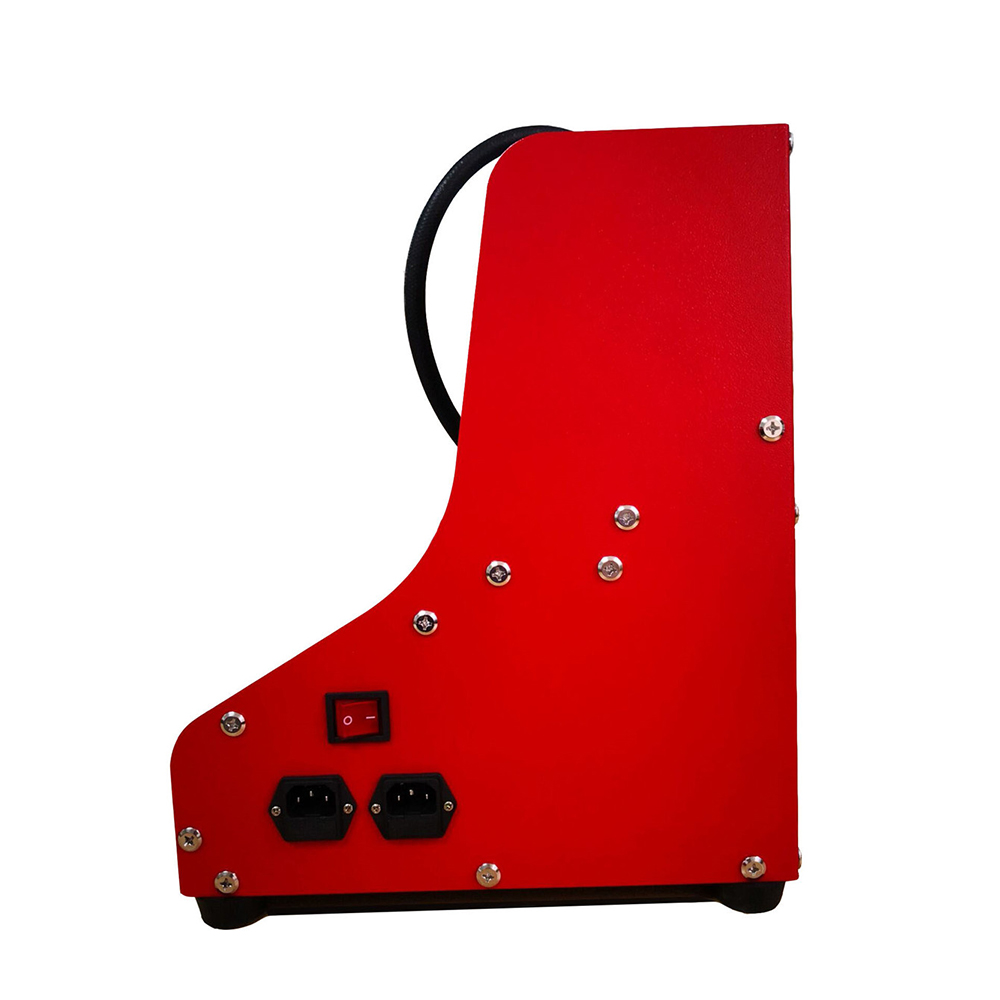

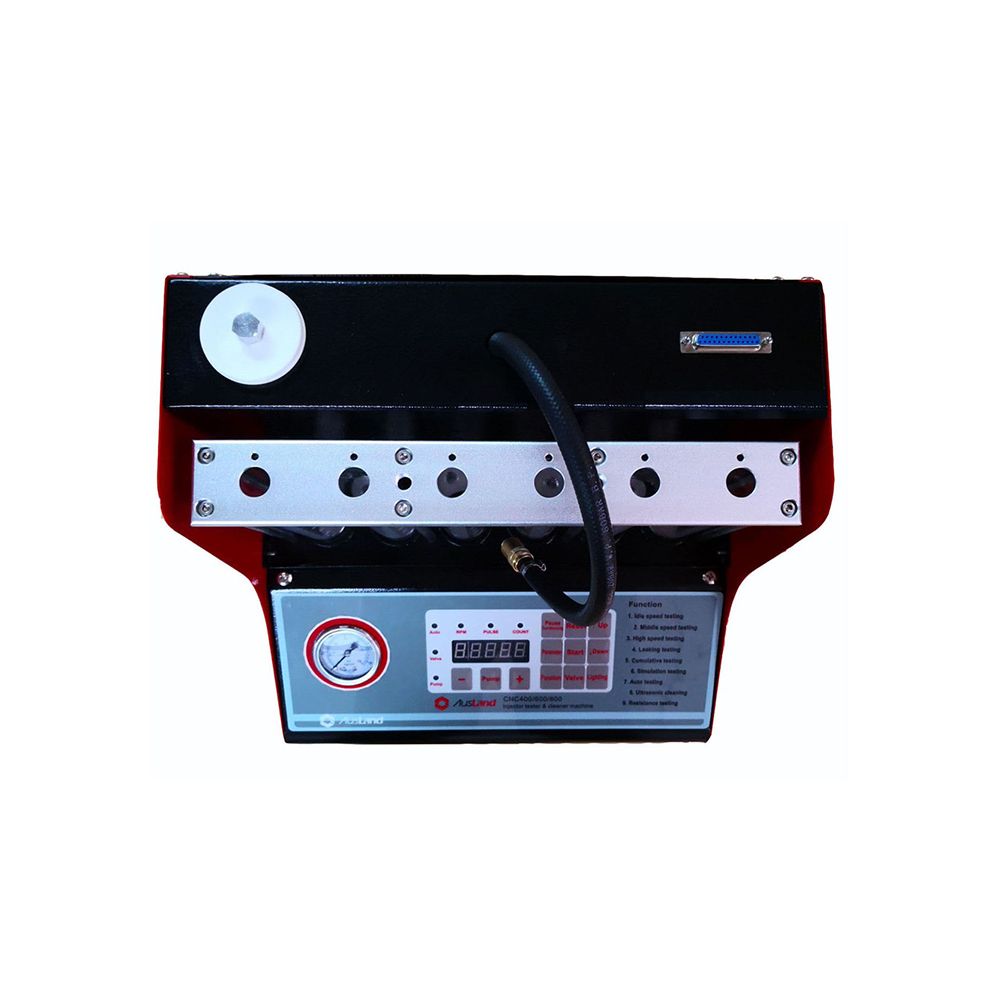

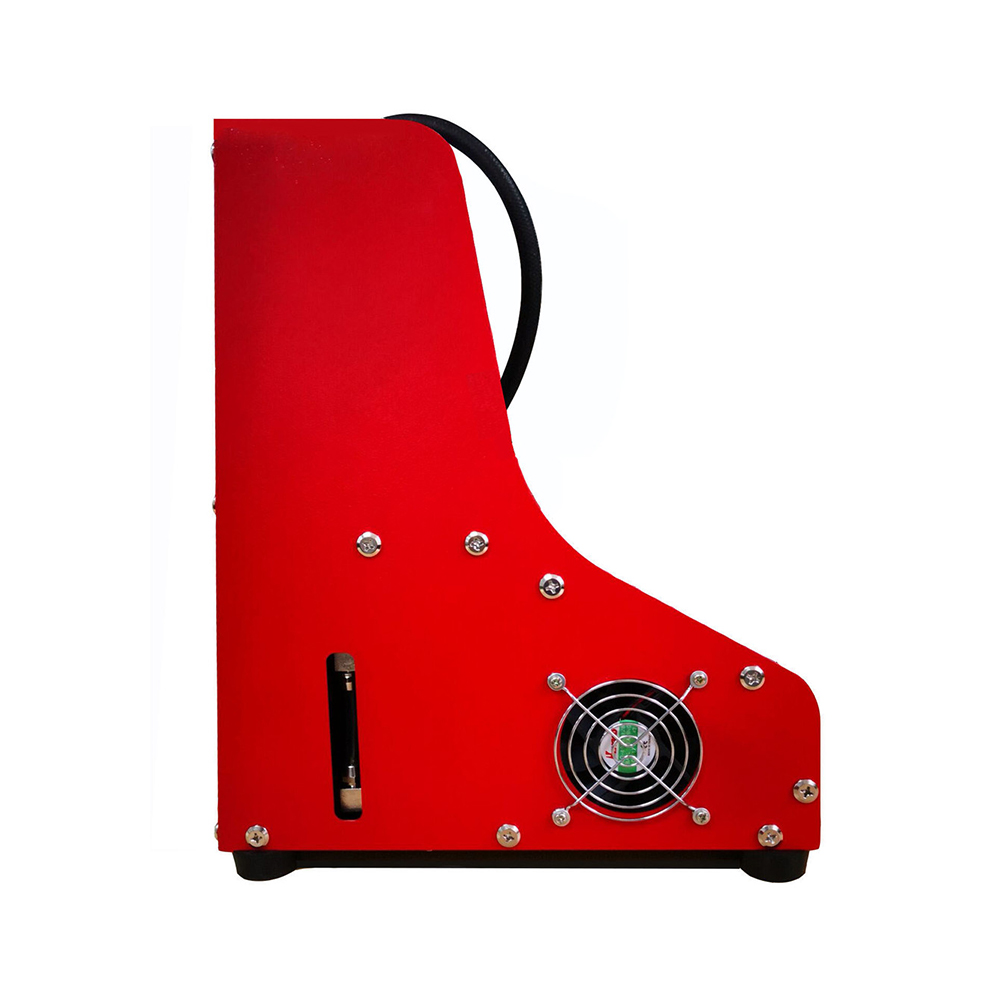

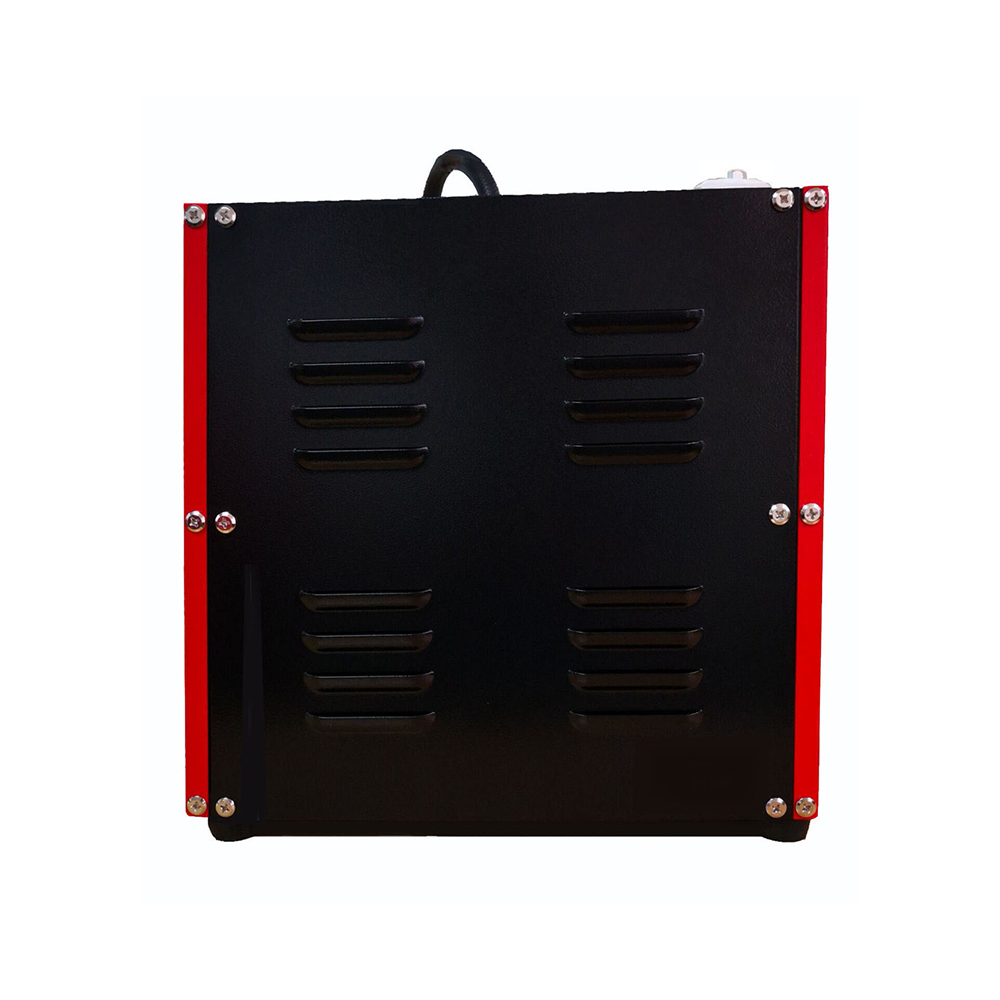

Electronic Fuel Injector Test Equipment CNC600 Injector Cleaning Machine
1 Ultrasonic cleaning: To perform simultaneous cleaning on several injectors and to remove the carbon deposits on the injector completely.
2 Uniformity/Sprayability test: To test the uniformity of injecting amount of each injector, and to monitor the spraying status of each injector with the help of backlight. This test is also for reverse flush.
3 Leakage test: To test the sealing and dribbling conditions of injectors under system pressure.
4 Injecting flow test: To check the injecting amount of the injector in 15 seconds of constant injection.
5 Auto. test: To test injectors by simulating different working conditions.
6 On-vehicle cleaning: The unit is equipped with various adaptors and couplers that facilitate cleaning on the injectors on vehicle.
CNC600 ultrasonic cleaning machine cnc600 Specifications:
Power supply: AC110v/220V~50/60Hz
Input power of main unit: 300W
Ultrasonic wave frequency: 40KHz
Ultrasonic cleaner power: 75W/100W
Pressure: 0~7bar
Accuracy of tube: ±2%
RPM range: 0~9975rpm, step: 25 rpm
PW range: 0.1~30ms, step: 0.1ms
System pressure: 0-6.2kg/cm2(variable regulated)
Flow of fuel system: 4L/min
Test cylinder: 4/6/8 cylinder/min
Test tube capacity: 120cc
Others:
LED display
LED background light
Membrane keypad
Top-supply fuel distributor
CNC600 ultrasonic cleaning machine Features:
Optimization structure design
LED backlight
Be equipped with cooling fan
Special material seals
Friendly interface
CNC600 ultrasonic cleaning machine Series:
Injector Cleaner & Tester
Injector cleaning
Injector testing
On-vehicle cleaning (optional)
Functions
Direct flush
Reverse flush
Ultrasonic cleaning
On-vehicle cleaning (optional adapters)
Spray ability test
Uniformity test
Leakage test
Injecting flow test
Electronic drain
