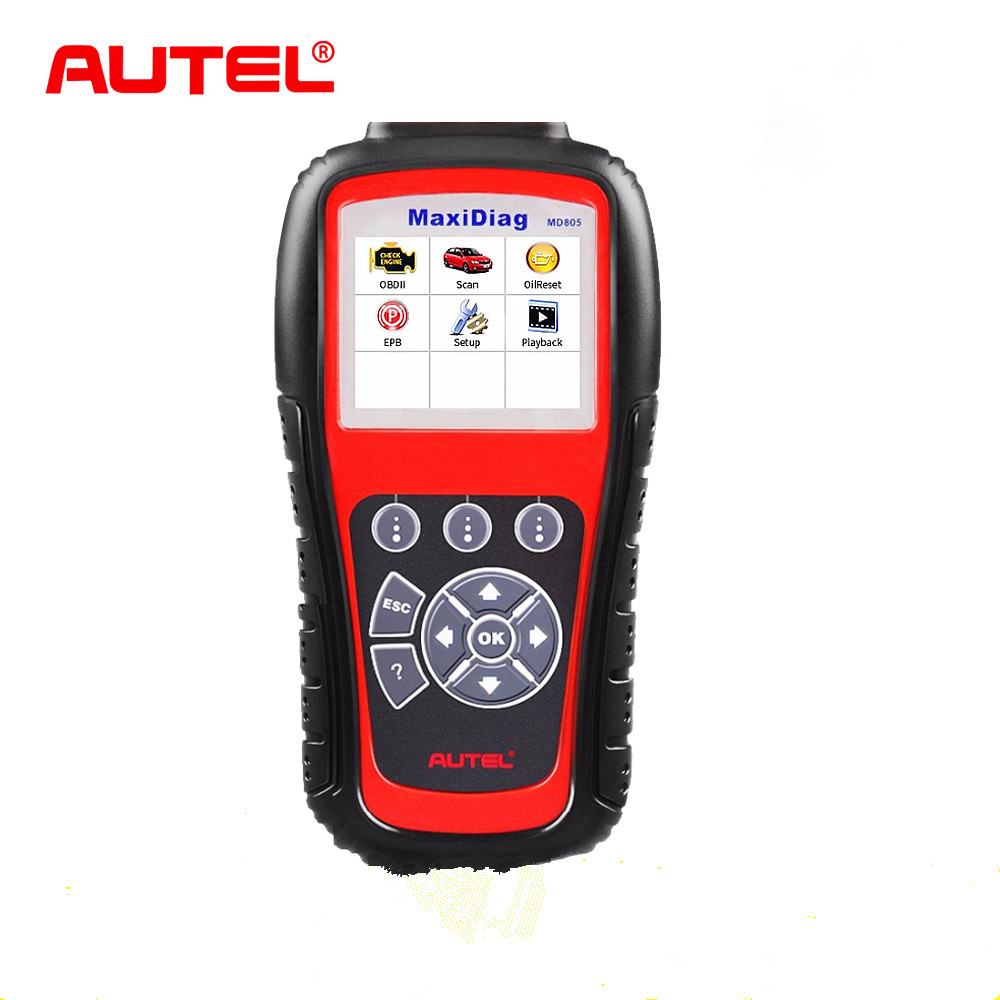

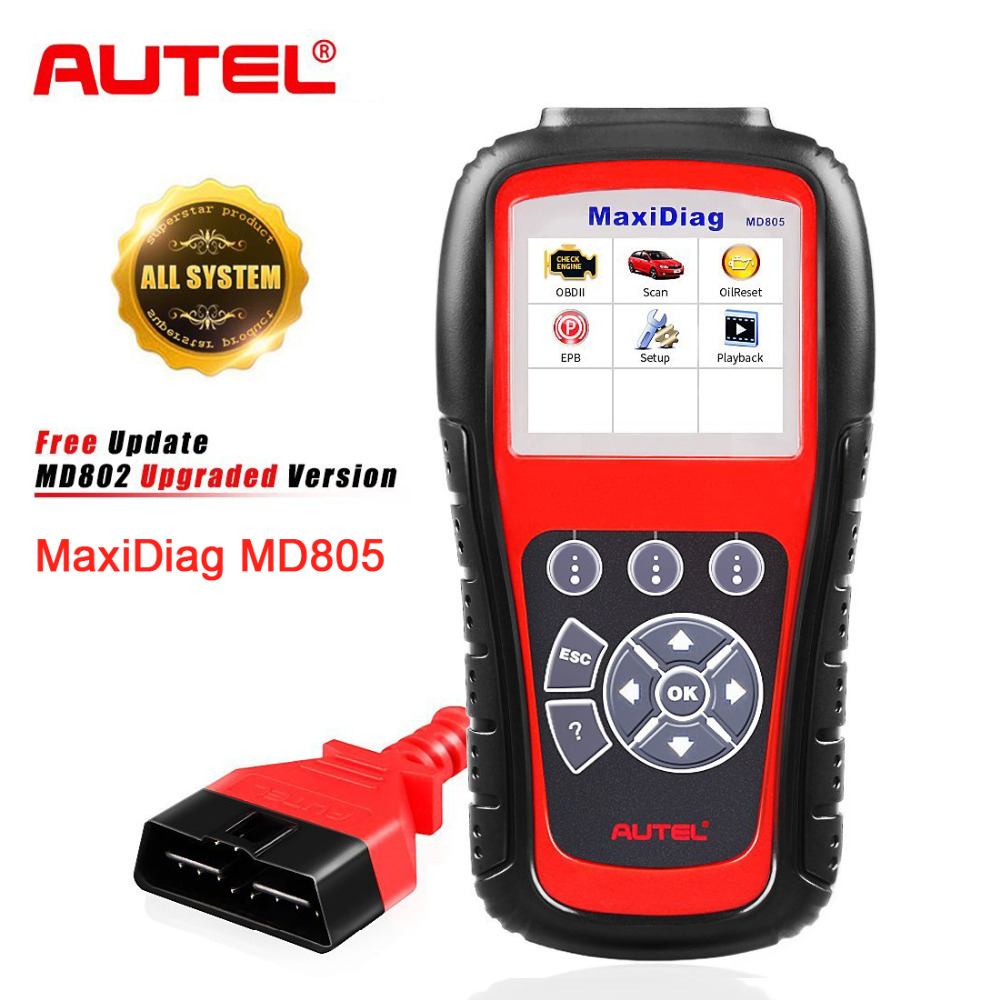

Four Reason To Get Autel MaxiDiag MD805 Full System
1.MaxiDiag MD805 Update: Free update online forever
2.MaxiDiag MD805 Coverage many Vehicle: Including MD701, MD702, MD703 and MD704 supported car models. Support European, Asian and USA car models from 1996 year
3.Supports all 10 test modes of the latest J1979 OBD II test specs: including Read / Erase Codes, Live Data, Freeze Frame,I/M Readiness, O2 Mon.Test, On-Board Mon.Test, Component Test and Vehicle Information
4. One tool can do it all-reads and clears trouble codes on full system

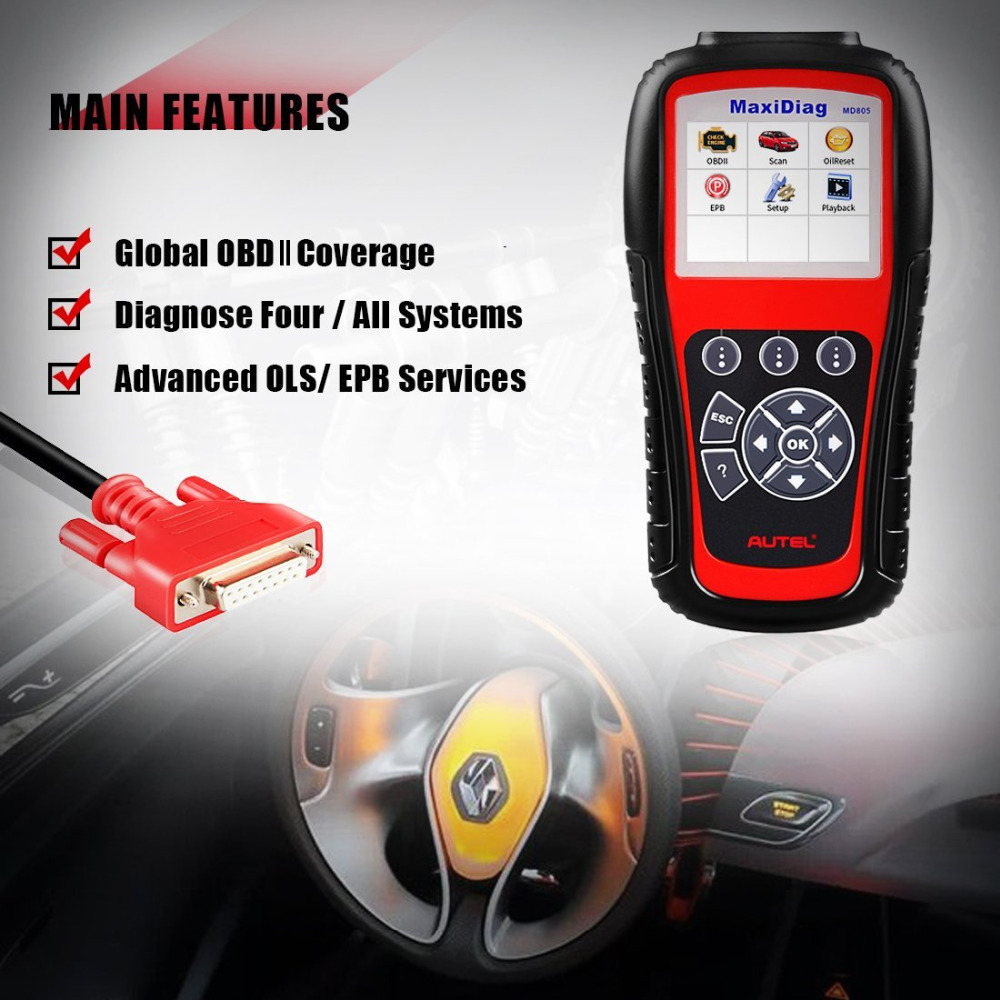

Features:

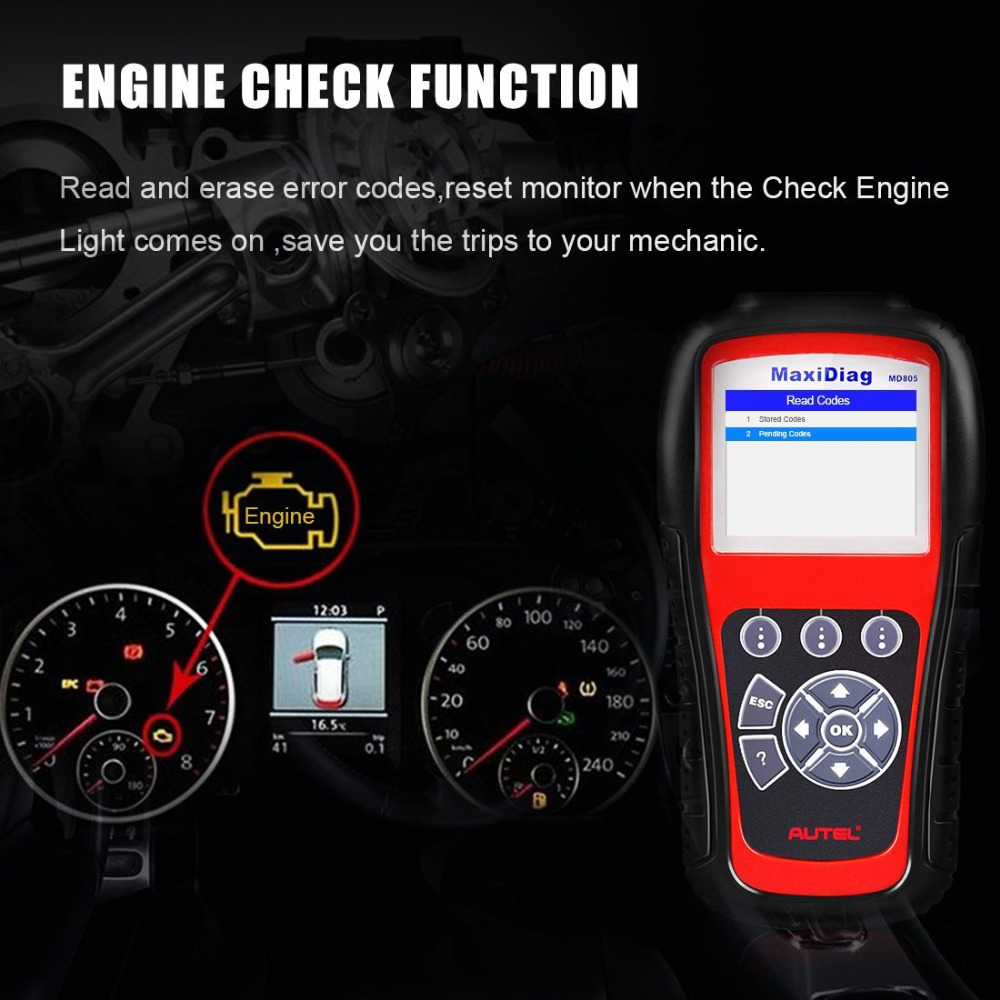

Reads/clears trouble codes on all the systems
Global OBDII coverage for U.S. Domestic, Asian & European vehicles
Turns off warning lights
Reads live data stream and freeze frame
Supports all 10 test modes, including Read Codes, Erase Codes, Live Data, Freeze Frame, I/M Readiness, O2 Mon. Test, On-Board Mon. Test, Component Test and Vehicle Information
Enhanced OBDII Mode 6
OBDII code tips guide technicians to the root cause of trouble code faster
Data graphing
Prints data via Windows-based PC
Free software update

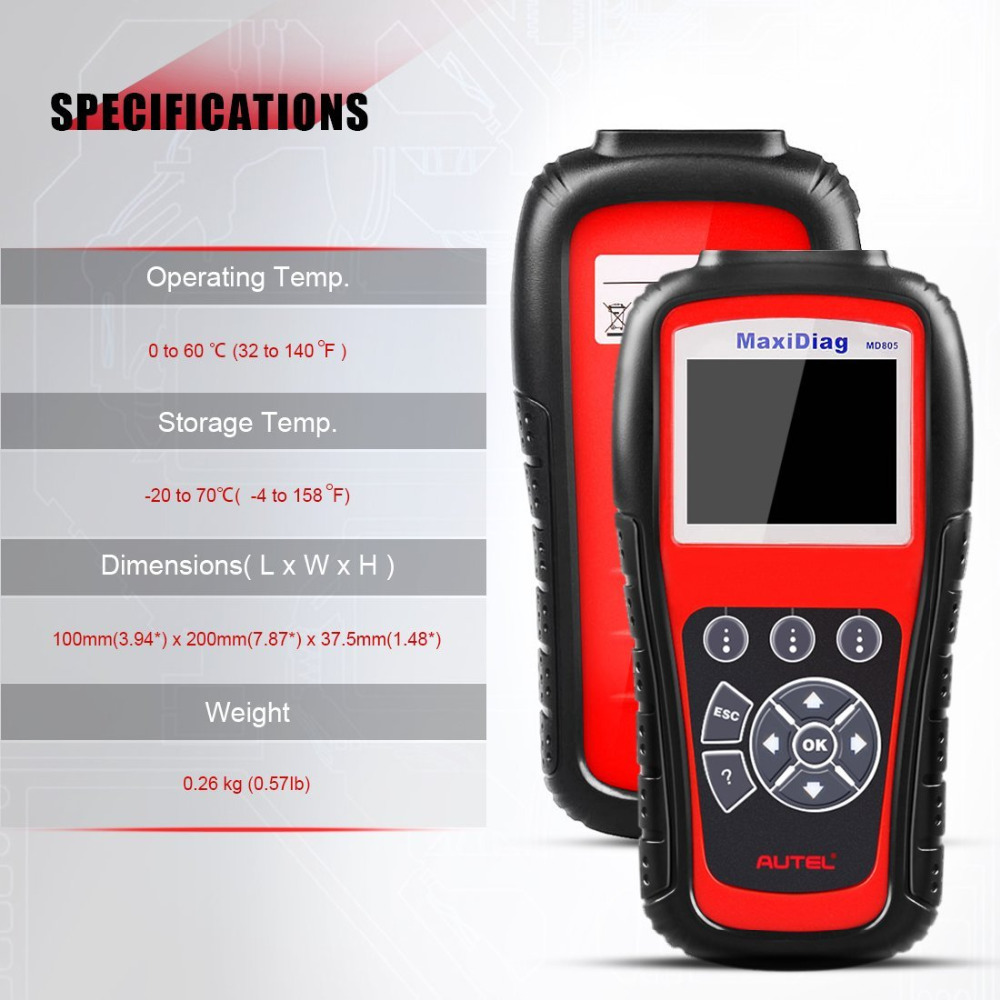

Specification:
Display: TFT color display (320 x 240 dpi)
Operating Temperature: 0 to 60°C (32 to 140 °F)
External Power: 12.0 to 18.0 V power provided via vehicle battery or adapter
Length\Width\Height: 212 mm (8.35”)\110.5 mm (4.35”)\37.5 mm (1.48”)
Main Unit Weight: 0.28kg(without wire) 0.484kg(with wire)
Storage Temperature: -20 to 70°C (-4 to 158 °F)
Product Troubleshooting:
1.Vehicle Linking Error
2.Operating Error
3.Scan tool doesn’t power up
Packaging:
1) Users Manual *1
2) CD *1
3) OBD2 cable *1
4) USB cable *1
5) TF card *1
6) Carry case *1
7) MD805 Unit
