Autel MaxiDiag MD806 Pro OBD2 Scanner Car Automotive Diagnostic Tool Auto Code Reader Better Than MD802

Autel Maxidiag MD806 Pro scanner is a Combination of Autel MaxiCheck Pro and the Autel Maxidiag Elite MD802. It is an excellent tool for car repair shop owners, professional mechanics, and DIYer enthusiasts.



Item No: Autel MaxiDiag MD808 Pro

Weight: 1.5kg

Package: 300mm*250mm*150mm

 Related Download Files:







 .pdf

 .pdf

 .pdf

CE-FC-ROHS
GET GUOTES

GET GUOTES

  X
Submit

AUTEL MD806 Pro All systems with 7 Special services

Supported Languages:

English, French, German, Spanish, Portuguese, Dutch, Polish, Swedish, Korean, Japanese, Russian, Italian, Greek.

Introduction:

Autel MaxiDiag 806 PRO, as an OBDII diagnostic tool specially designed for the DIY car owner or the skilled mechanic, features all system diagnoses, 7 most commonly used special services, along with 10 modes of OBDII function, DTC lookup and Data Playback & Print etc., in creating easy work to help you diagnose efficiently and precisely.

Bullet Points:

ALL ECUs COVERED: The diagnostic tool scans all the main systems/subsystems in a vehicle (Body, Chassis, Powertrain, Network and etc.), instantly displays all the errors detected, and allows errors to be viewed and cleared with just a single click.

7 ADVANCED FEATURES: Oil Reset, Electronic Parking Brake Release, Steering Angle Sensor Calibration, Diesel Particulate Filter Service, Battery Management System Service, Throttle Matching, Adjust A/F, all above 7 special services are supported.

FULL OBD2 MODES: Full OBDII functions of this scanner are effective to quick & precise diagnostics of your vehicle (Read OBDII Data/Erase Codes …), and are great for passing the emission test smoothly (I/M Readiness Check, O2 Sensor Test, On-Board Monitor Test …).

USER-ORIENTED: Handheld design for being portable; Hotkeys for quick access to the commonly used functions; Plug & Play, no battery required; DTC LookUp, Data Playback and Print etc., above all for simplifying the analysis and repair process.

WARRANTY & UPDATE: Autel MD806 PRO carries a complete 12-month guarantee from the date of sale provided from Autel Headquarters in China, with free lifetime software update, and 14 languages support (EN, CN, FR, DE, ES, PT, NL, PL, SV, KR, JA, RU, IT, GR).

What’s the Difference? The Upgraded Version of Autel MD806/MD808:

The new-released Autel MD806 PRO is the advanced version of MD806/MD808.

1. All System Diagnoses: Autel MD806 PRO provides FULL system diagnoses for basic diagnoses and services for all available modules on the vehicle, whereas MD806/MD808 features only FOUR system diagnoses for engine, transmission, ABS and SRS.

2. 7 Special Features: Autel MD806 PRO/MD806 is specially designed to add 2 more special functions (Throttle Matching, Adjust A/F), compared with MD808 (only 5 special features).

ALL System Diagnoses - Guide Directly to the Fix and Eliminate Guesswork

The professional-level vehicle diagnostic device MD806 PRO is a full system diagnostic scanner that can quickly establish a data link to the electronic control units of the vehicle being serviced directly. It allows you to:

1. Retrieve ECU information of tested control units including unit type, version numbers, and other specifications;

2. Read & erase DTCs to locate problem areas and clear the codes easily;

3. View live data of each parameter item;

4. Get access to all vehicle systems and subsystems, such as Engine; Automatic Transmission; ABS/EPB/SRS Airbag/Oil; Suspension; Audio; IMMO Immobilizer; Air Conditioning; DPF; Auto Headlamp; ACC; Car Radio Audio; Car Door Windows etc. to perform a comprehensive scanning process on ECUs to locate the faulty systems and retrieve the DTCs related. Which only costs you a few minutes to finish the full scanning with just one click of a button. You will be able to diagnose the car and turn off the Check Engine Light, and know what the problem is any time your car breaks down, which will help you determine whether it needs immediate attention, and how much you should expect to spend on repairs.

SEVEN Special Features - Promptly Reminded and Eliminate Hidden Dangers

With the professional diagnostic device MD806 PRO, you can learn to perform complex diagnostic functions, which will give you a lot more power over the ins and outs of your car to figure out what is going on with your modern computerized vehicle, so that you can get it fixed and get back on the road.

1.Oil Reset for Engine Efficiency

2.Electronic Parking Brake (EPB) Release for Safety

3.Steering Angle Sensor (SAS) Calibration

4.Diesel Particulate Filter (DPF) Service

5.BMS (Battery Management System) Service

6.Throttle Matching

7.Adjust A/F

Other Features:

1.FULL Modes of OBDII – Get Quick Access to Functional Tests and Resets

2.DTC Lookup Library - Pin Down the Exact Cause of the Car Trouble

3.Playback and Print Data - A Simple Solution for Complex Diagnostic Issues

Wide Coverage of OBDII Vehicle Models

Autel MD806 PRO has wide compatibility rates with several modes of the OBD2 motor vehicles. The scanner works on pretty much any car made from 1996 and forward, as long as the car has a 16-pin OBD-II port:

Asia:

Acura, Daewoo, Honda, Hyundai, Infiniti, Isuzu, Kia, Lexus, Mazda, Mitsubishi, Nissan, Scion, Subaru, Suzuki, Toyota

Europe:

Audi, Abarth, Alfa Romeo, BMW, Bentley, Benz, Bugatti, Citroen, Dacia, EU Ford, Fiat, Jaguar, Lancia, LandRover, Mini, Maybach, Opel, Peugeot, Porsche, Renault, Seat, Skoda, Saab, Smart, Sprinter, Vauxhall, Volkswagen, Volvo

USA:

Chrysler, Ford, GM

Specifications:



Processor: ARM Thumb Processor running at up to 400 MHz

Memory: 32MB, 166MHz

Display: 4.0 inch LCD with 800x480 resolutions

Connectivity: Mini USB: 2.0, Micro SD Card(16GB)

Power Consumption: 1.7W

Operating Temperature: -10°C to 60°C (14°F to 140°F)

Storage Temperature: -20°C to 70°C (-4°F to 158°F)

Operating Humidity: 5% - 95% non-condensing

Housing: Strong plastic housing with protective rubber boot

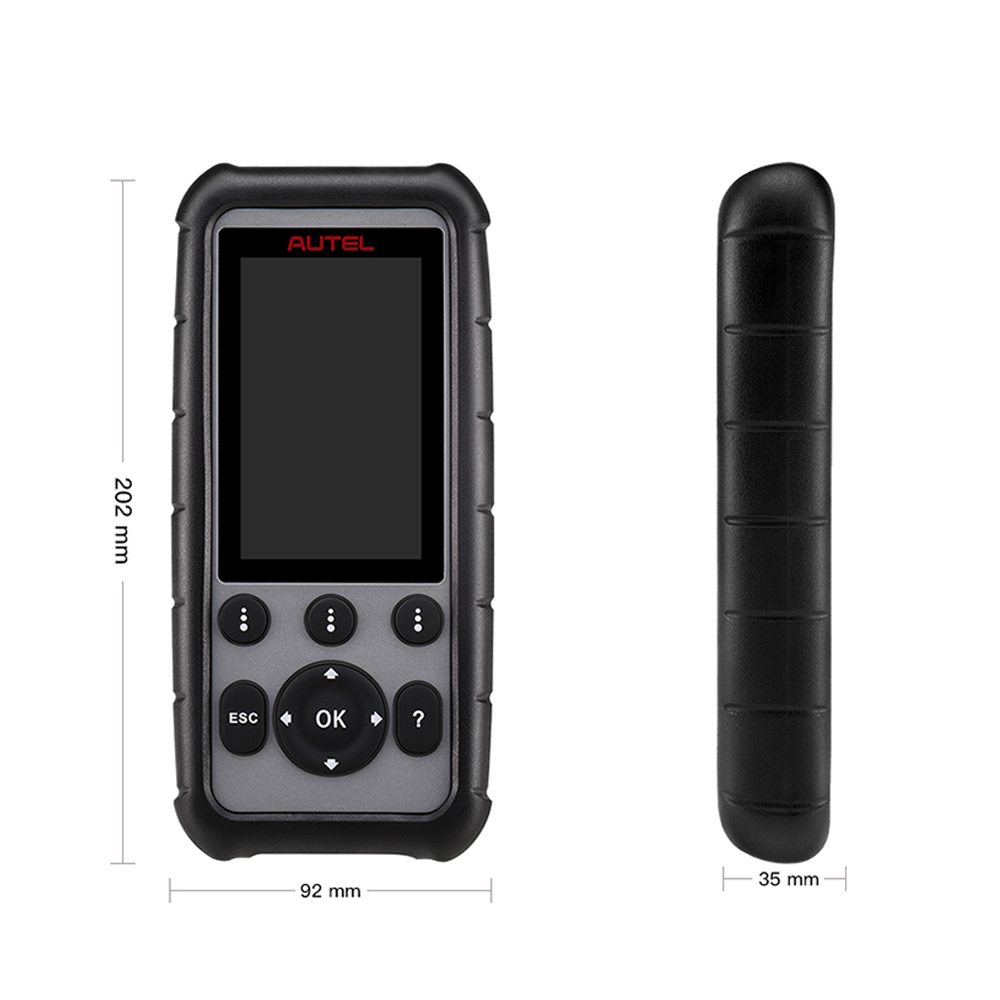

Dimensions: 202mm x 92mm x 35mm (8.35” x 3.62” x 1.4”)

Weight: 313 g (0.69 lb.)

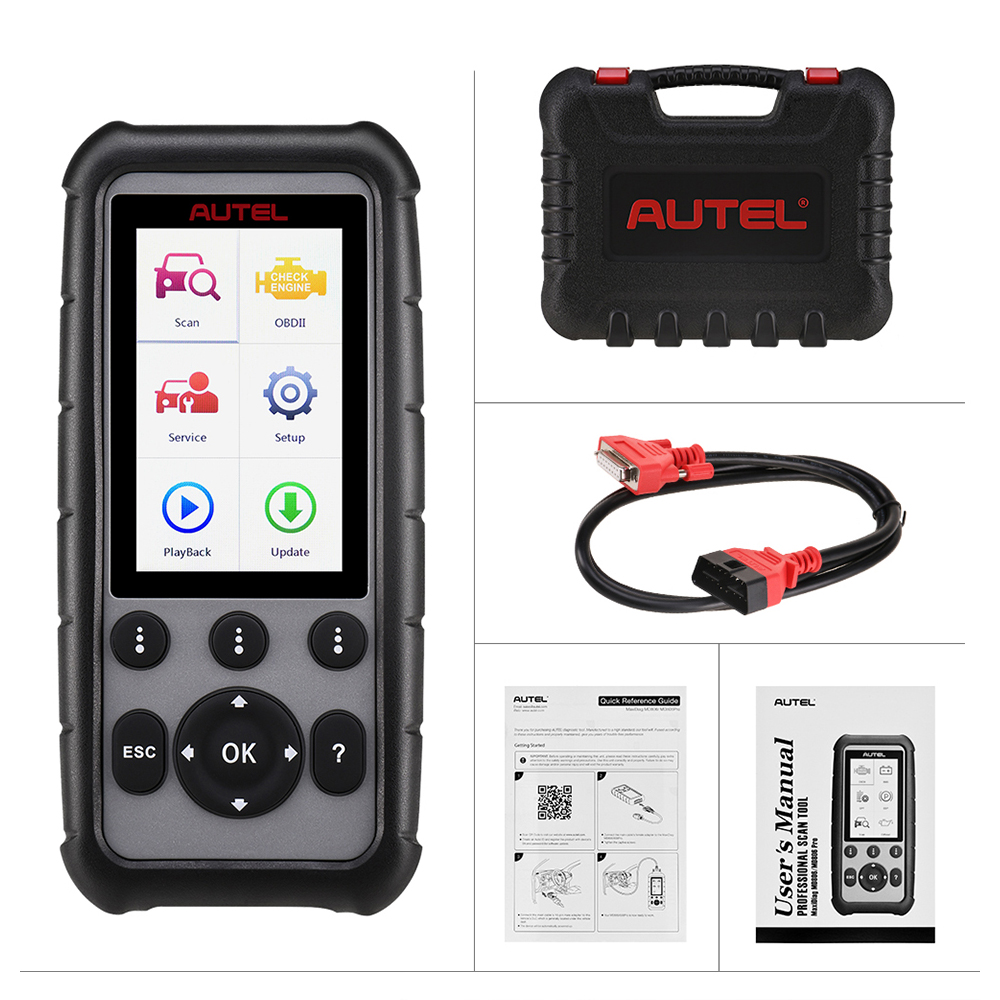

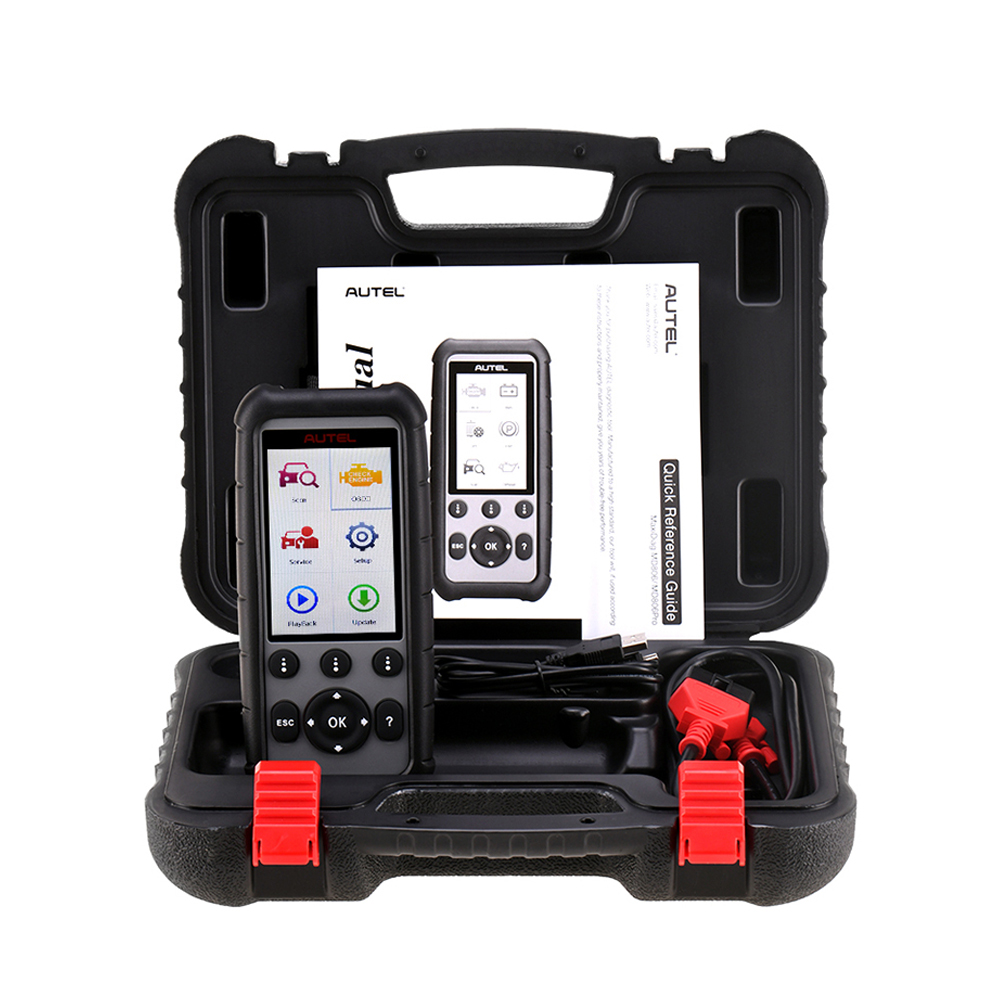

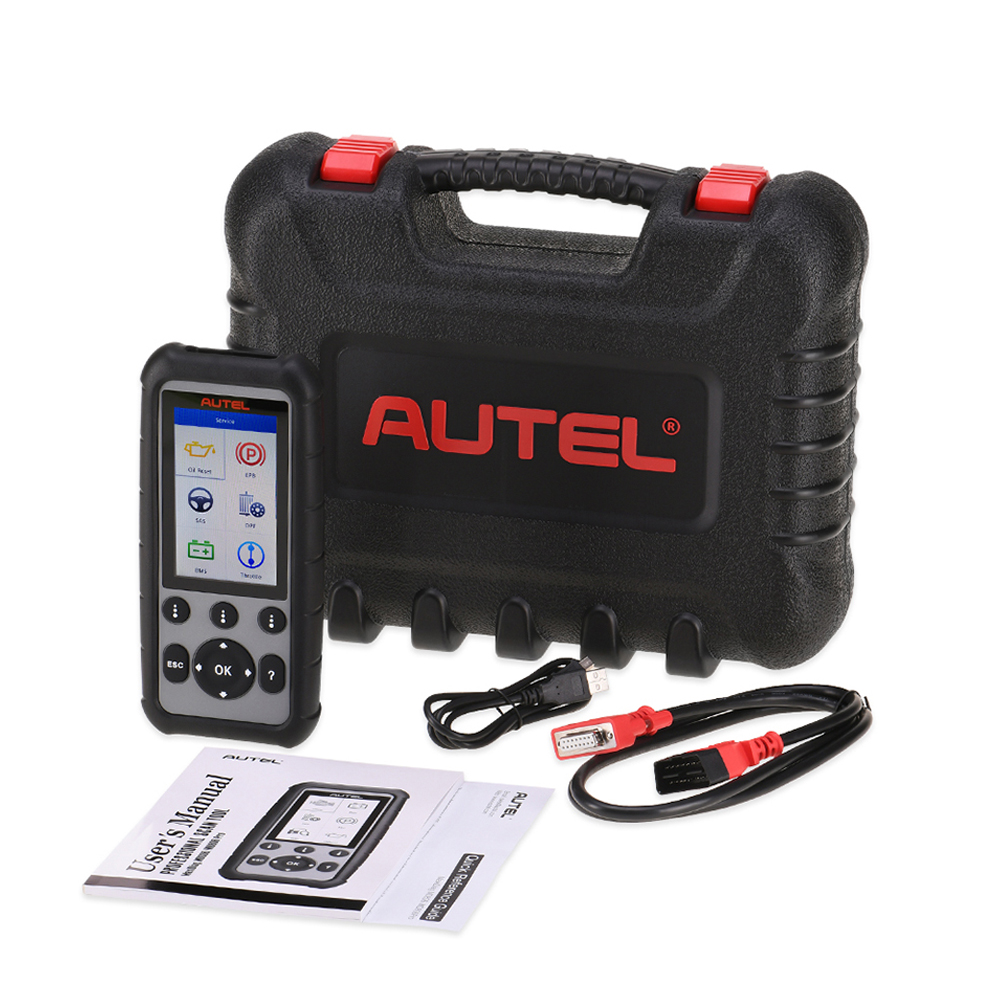

Packing List:



1*User Manual

1*OBD II Cable

1*USB Cable

1*Micro SD Card

1*Quick Guide

1*Carry Case
